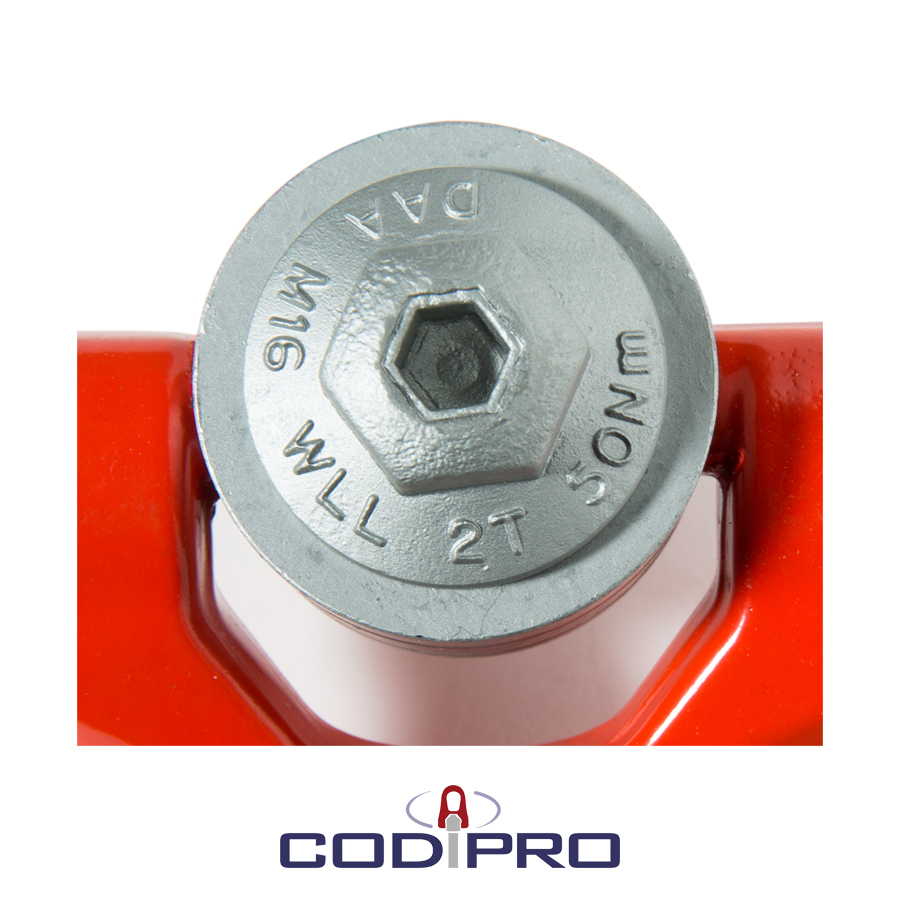

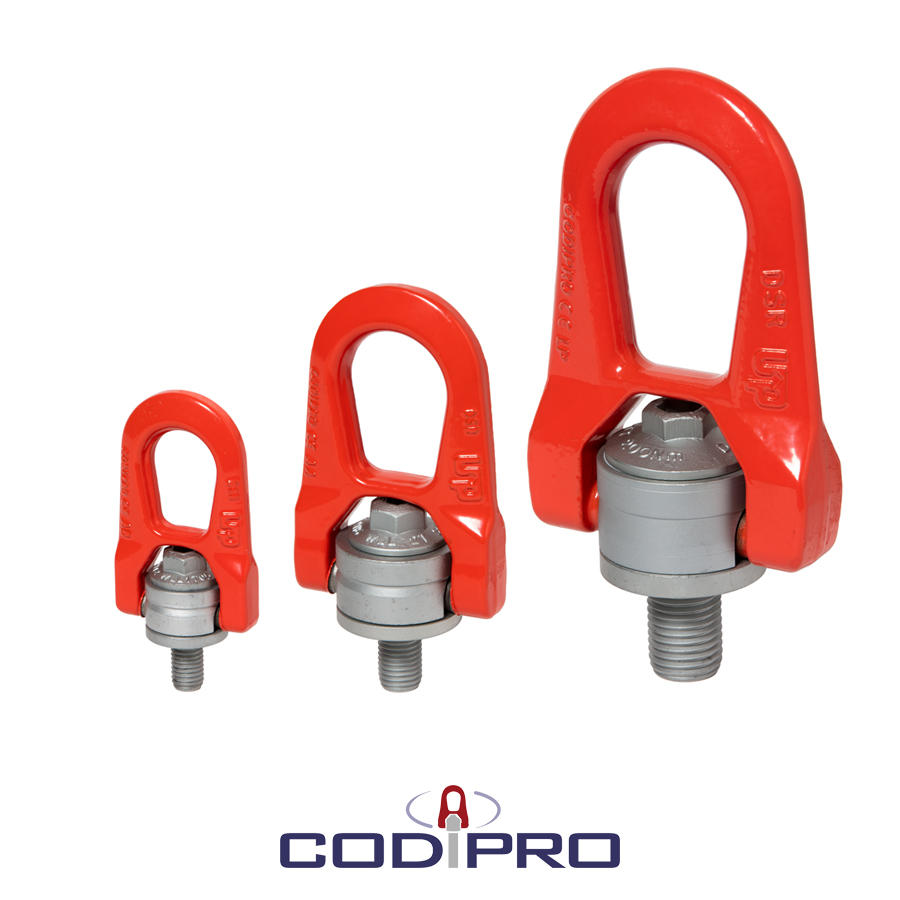

METRIC THREADS
Also Available in UNC
| Model Number | Diameter | SF 5:1 WLL (t) | SF 4:1 WLL (t) | Standard L1 (mm) | Torque (NM) | Dimensions (mm) | Weight | ||||||||||

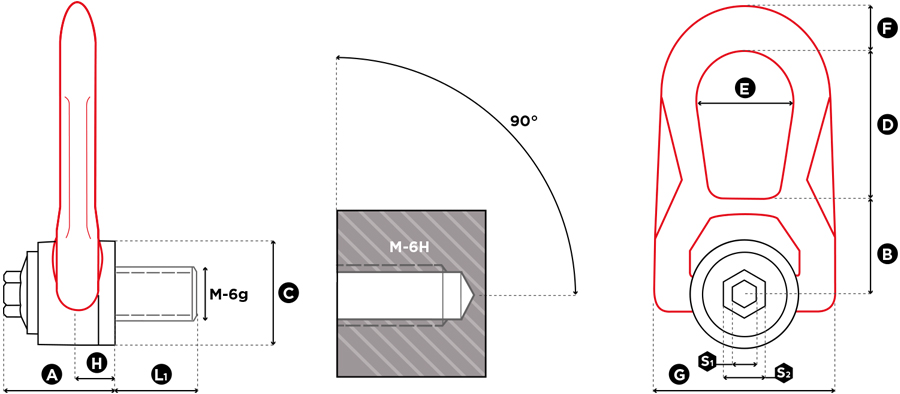

| S1 | S2 | A | B | C | D | E | F | G | H | (kg) | (lbs) | ||||||
| DSR M 6 UP | M6 (x1) | 0,15 | 0,20 | 15 | 4 | 8 | 16 | 33 | 30 | 30 | 38 | 27 | 14 | 53 | 9,5 | 0,3 | 0.66 |
| DSR M 8 UP | M8 (x1,25) | 0,40 | 0,50 | 15 | 6 | 8 | 16 | 33 | 30 | 30 | 38 | 27 | 14 | 53 | 9,5 | 0,3 | 0.66 |
| DSR M 10 UP | M10 (x1,5) | 0,70 | 0,90 | 18 | 10 | 8 | 16 | 33 | 30 | 30 | 38 | 27 | 14 | 53 | 9,5 | 0,3 | 0.66 |
| DSR M 12 UP | M12 (x1,75) | 1,05 | 1,30 | 21 | 15 | 8 | 16 | 33 | 30 | 30 | 38 | 27 | 14 | 53 | 9,5 | 0,3 | 0.66 |
| DSR M 14 UP | M14 (x2) | 1,40 | 1,80 | 23 | 30 | 8 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | 1.98 |
| DSR M 16 UP | M16 (x2) | 2,00 | 2,30 | 27 | 50 | 8 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | 1.98 |
| DSR M 18 UP | M18 (x2,5) | 2,30 | 2,30 | 27 | 70 | 8 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | 1.98 |
| DSR M 20 2t5 UP | M20 (x2,5) | 2,50 | 2,50 | 30 | 100 | 8 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | 1.98 |
| DSR M 22 UP | M22 (x2,5) | 3,50 | 4,50 | 33 | 120 | 14 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,6 | 5.73 |
| DSR M 24 UP | M24 (x3) | 4,40 | 5,50 | 36 | 160 | 14 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,6 | 5.73 |
| DSR M 27 UP | M27 (x3) | 5,70 | 6,00 | 40 | 200 | 14 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,7 | 5.95 |
| DSR M 30 6t3UP | M30 (x3,5) | 6,00 | 6,30 | 45 | 250 | 14 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,7 | 5.95 |
| DSR M 36 UP | M36 (x4) | 8,00 | 8,50 | 54 | 320 | 14 | 30 | 80 | 77 | 78 | 98 | 71 | 26 | 141 | 28 | 5,4 | 11.90 |
| DSR M 42 UP | M42 (x4,5) | 8,50 | 9,00 | 63 | 400 | 14 | 30 | 80 | 77 | 78 | 98 | 71 | 26 | 141 | 28 | 5,5 | 12.13 |
