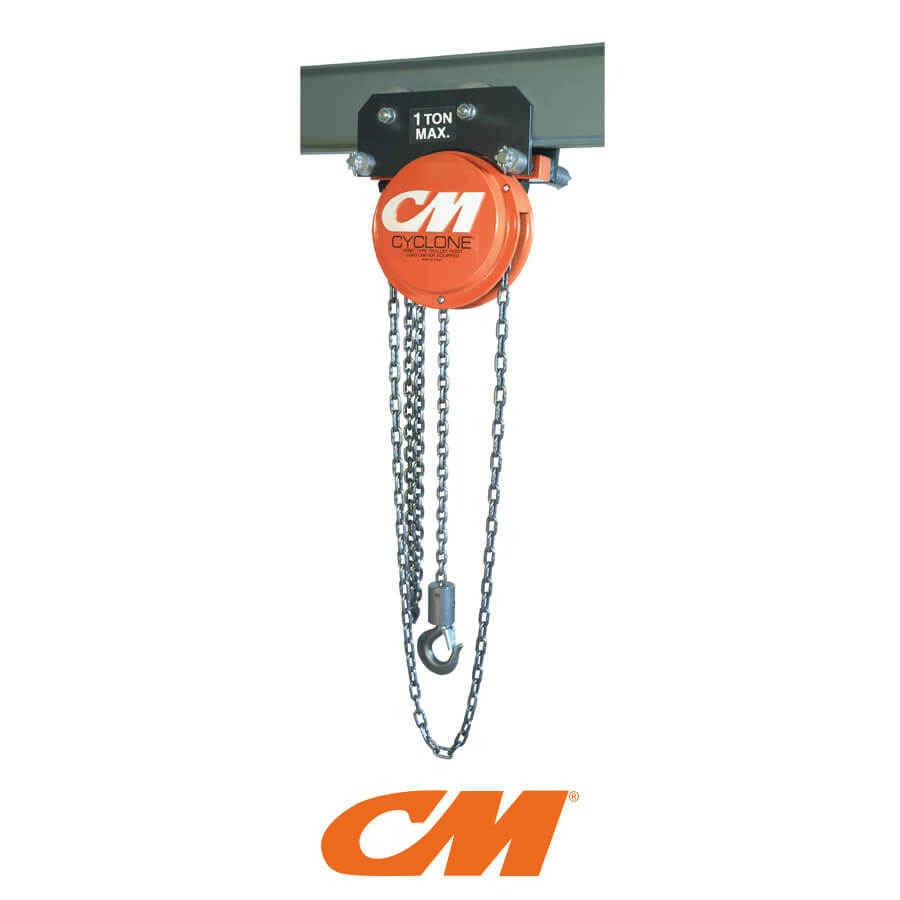

CM Cyclone Army Type Trolley Hoists

CM Cyclone Army Type Trolley Hoists

This compact trolley hoist features reduced headroom, side clearances and end approach which make it ideal for operation in tight spaces. Integral trolley has hardened universal tread flanged track wheels which minimize rolling friction. CM’s Internal Load Limiter™ automatically guards against damaging overloads without increasing overall dimension. Capacities range from 1/4 thru 12 tons — plain or geared trolley. Adapts to a wide range of beam adjustments.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Capacity (Ton) CERTEX Cat. Ref. No. Columbus McKinnon Plain Trolley CERTEX Cat. Ref. No. Columbus McKinnon Geared Trolley Standard Lift (Ft.) Strands of Chain American Standard Shape Adjustment Ranges† Chain Pull To Lift Full Capacity Load (Lbs.) Chain Overhauled To Lift Load One Foot (Ft.) Minimum Headroom (In.) Minimum Radius Curve Depth (In.)
Depth (In.) Flange Width (In.)
1/4 CX11-0222 4521 CX11-0234 4541 8 1 6-12* 3 3/8-5 1/2 23 22 1/2 11 7/16 30
1/2 CX11-0223 4522 CX11-0235 4542 8 1 6-12* 3 3/8-5 1/2 46 22 1/2 11 7/16 30
1 CX11-0224 4524 CX11-0236 4544 8 1 6-12* 3 3/8-5 1/2 69 30 11 3/4 30
1 1/2 CX11-0225 4525 CX11-0237 4545 8 1 6-15 3 3/8-5 1/2 80 40 1/2 15 5/16 30
2 CX11-0226 4526 CX11-0238 4546 8 1 6-15 3 3/8-5 1/2 83 52 15 5/16 30
3 CX11-0227 4527 CX11-0239 4547 8 2 7-15 3 3/8-5 1/2 85 81 19 48
4 CX11-0228 4528 CX11-0240 4548 8 2 7-15 3 3/8-5 1/2 87 104 19 48
5 CX11-0229 4529 CX11-0241 4549 8 3 8-18 4-6 1/4 74 156 22 9/16 60
6 CX11-0230 4530 CX11-0242 4550 8 3 8-18 4-6 1/4 89 156 23 1/16 60
8 CX11-0231 4531 CX11-0243 4551 8 4 12-24 5-8 91 208 29 5/16 72
10 CX11-0232 4532 CX11-0244 4552 8 5 12-24 5-8 93 260 29 5/16 72
12 CX11-0233 4533 CX11-0245 4553 8 5 15-24 5 1/2-8 95 312 31 13/16 96

* 1/4 thru 1 ton plain Trolley Hoist can be adapted to 4” & 5” depth—American Standard Shapes (2 5/8”-3” flange widths)—at no extra charge.
† Specify exact beam size when ordering.
