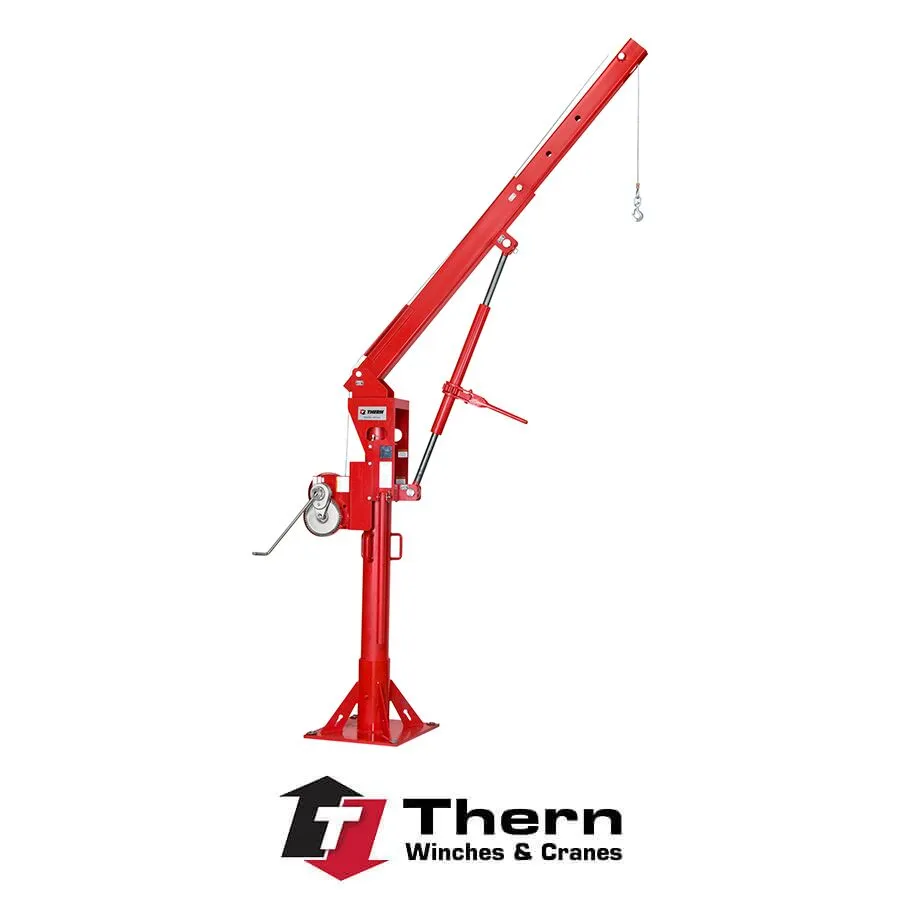

Admiral 3000 — Model 5PT30J crane with screw-jack, M452B-K spur gear hand winch and 5BP30 pedestal base.
The best of all worlds, handling large loads up to 1.5 tons, and can still be disassembled for relocation.
Quick Facts
Series Models
Admiral 3000 SPT30 Series
Lift Below Floor1 Level
| Lift Below Floor2 |
Wire Rope Diameter |
Wire Rope Length |

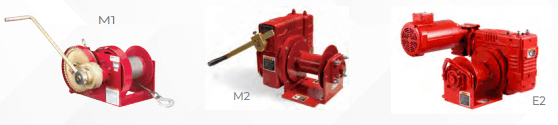

Winch Configurations Maximum Winch Rating |
||||||||||
| Minimum (C6) | Maximum (C1) | M1 | M2 | E2 | |||||||||
| (ft) | (m) | (ft) | (m) | (in) | (mm) | (ft) | (m) | (lbs) | (kg) | (lbs) | (kg) | (lbs) | (kg) |
| ·4 | ·1.2 | 2 | 0 .6 | 3/8″ | 10 | 28 | 8.5 | 3.000 | 1,360 | 3,000 | 1,360 | 3,000 | 1,360 |
| 4 | 1.2 | 10 | 3.0 | 3/8″ | 10 | 36 | 10.9 | 3.000 | 1,360 | 3,000 | 1,360 | 3,000 | 1,360 |
| 13 | 3.9 | 19 | 5.7 | 3/8″ | 10 | 45 | 13.7 | 3.000 | 1,360 | 3,000 | 1,360 | 3,000 | 1,360 |
| 28 | 8.5 | 34 | 10.3 | 3/8″ | 10 | 60 | 18.2 | 3.000 | 1,360 | 3,000 | 1,360 | 3,000 | 1,360 |
| 43 | 13.1 | 49 | 14.9 | 3/8″ | 10 | 75 | 22.8 | 3.000 | 1,360 | 3,000 | 1,360 | 3,000 | 1,360 |
| 58 | 17.6 | 64 | 19.5 | 3/8″ | 10 | 90 | 27.4 | — | — | 2,700 | 1,224 | 2,700 | 1,224 |
| 88 | 26.8 | 94 | 28.6 | 3/8″ | 10 | 120 | 36.5 | — | — | 2,500 | 1,134 | 2,500 | 1,134 |
| 118 | 35.9 | 124 | 37.7 | 3/8″ | 10 | 150 | 45.7 | — | — | — | — | — | — |
| 168 | 51.2 | 174 | 53.0 | 3/8″ | 10 | 200 | 60.9 | — | — | — | — | — | — |
1Performance characteristics are for standard products. Non-standard products may vary from the original design.
Contact Them, Inc. for this information.
2Lift below floor level varies depending on boom position and base configuration. For longer lifts. please contact factory.

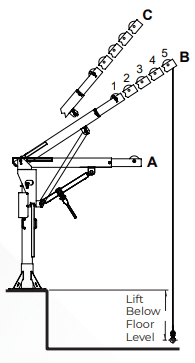

Winch Configurations
| Boom Position | Load Rating | |
| (lb) | (kg) | |
| A-l | 3,000 | 1,360 |
| A-2 | 3,000 | 1,360 |
| A-3 | 3,000 | 1,360 |
| A-4 | 2,700 | 1,224 |
| A-5 | 2,400 | 1,088 |
| B-l | 3,000 | 1,360 |
| B-2 | 3,000 | 1,360 |
| B-3 | 3,000 | 1,360 |
| B-4 | 2,700 | 1,224 |
| B-5 | 2,400 | 1,088 |
| C-l | 3,000 | 1,360 |
| C-2 | 3,000 | 1,360 |
| C-3 | 3,000 | 1,360 |
| C-4 | 2,700 | 1,224 |
| C-5 | 2,400 | 1,088 |
Welded Steel Construction
Crane boom, mast and base fabricated from heavy-duty welded constructed structural steel pipe and tubing that limits deflection and meets ASTM standards.
Manual or Power Operation
Thern davit cranes can be configured with a spur gear manual winch or power winch. Choose from Thern’s manual winch or power winch with 115/1/60 as standard. Other voltages available as well as pneumatic, hydraulic or DC Volt power operation.
Corrosion Resistant Finish
Red enamel finish on crane and stainless steel fasteners combine to resist corrosion in harsh environments. Other options available include: galvanized and epoxy finishes.
Easy Assembly/Disassembly
Quick-release clevis style stainless steel pins allow for easy assembly and quick disassembly for transport or storage. No tools required.
Boom and Outer Mast Rotate
Boom and mast rotate on tapered roller bearing and needle bearings for smooth 360° rotation. Outer mast locks in one of twelve positions at 30° increments with locking pin. Rotational handle located on outer mast for easy rotation.
Variety of Bases (sold separately)
Pedestal, flush and wall mount bases allow for a variety of mounting solutions and are easily installed. Standard red enamel finish on pedestal, flush and wall mounts. Other finish options available including galvanized and epoxy finishes.
Two-Year Warranty
Industry-leading, two-year limited warranty on all our products.
