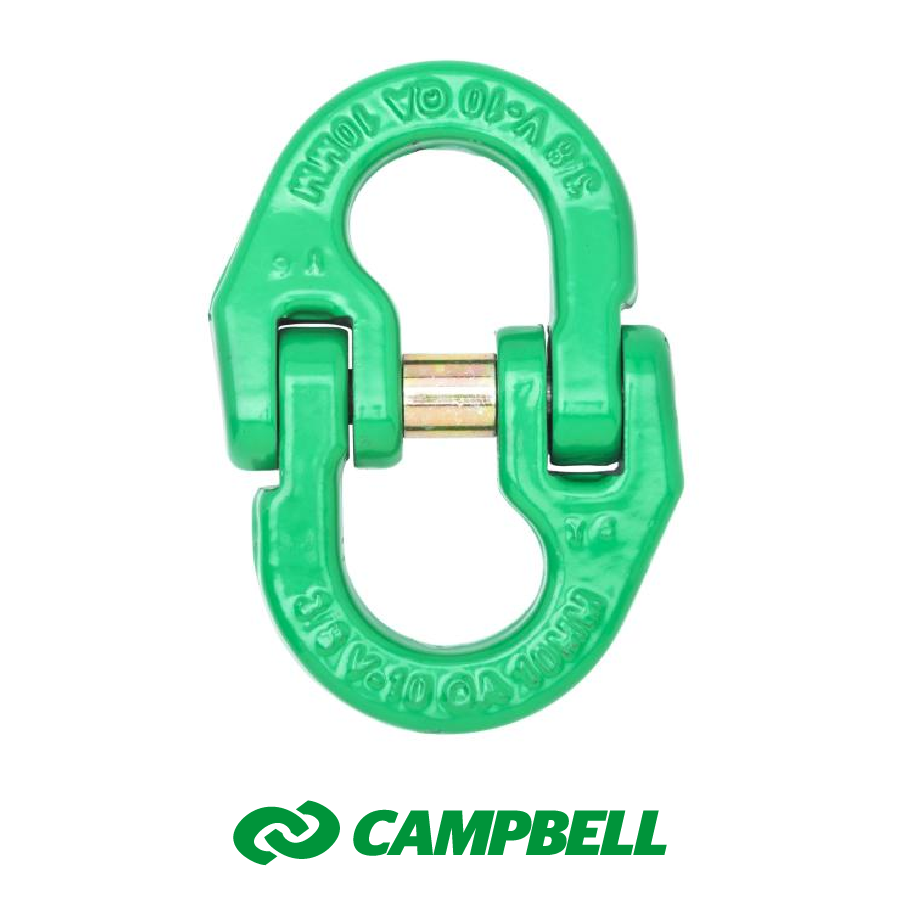

Campbell 3/8″ Quik-Alloy® Coupling Link, Grade 100, Painted Green

Campbell 3/8
  • For Connecting Chain to Components in the Fabrication of Chain Slings
  • For Use with Grade 80/100 Chain Slings
  • 4 to 1 Design Factor
  • Meet or Exceed All Requirements of ASME B30.9
  • 100% Proof Tested in Accordance with ASTM A952
  • 3/4″ Through 1-1/4″ Coupling Links Utilize A Barrel Style Oversized Retainer
  • Made in the USA
  • Per ASME B30.9, Section 9.1.3 “Mechanical Coupling Links Shall Not Be Used Within the Body of An Alloy Chain Sling to Connect Two Pieces of Chain”
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Contact Your Local Branch To Learn More

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK NUMBER DESCRIPTION WEIGHT/PIECE (LBS.) WORKING LOAD LIMIT (LBS.)
CX06-0427-CT 3/8″ QUICK ALLOY;MECH COUPLING LINK DOM 0.69 8,800

STOCK NUMBER DIMENSIONS (IN)
A B C D E F G
CX06-0427-CT 1/2 7/16 2-3/8 13/16 5/16 2-3/4 7/16

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
