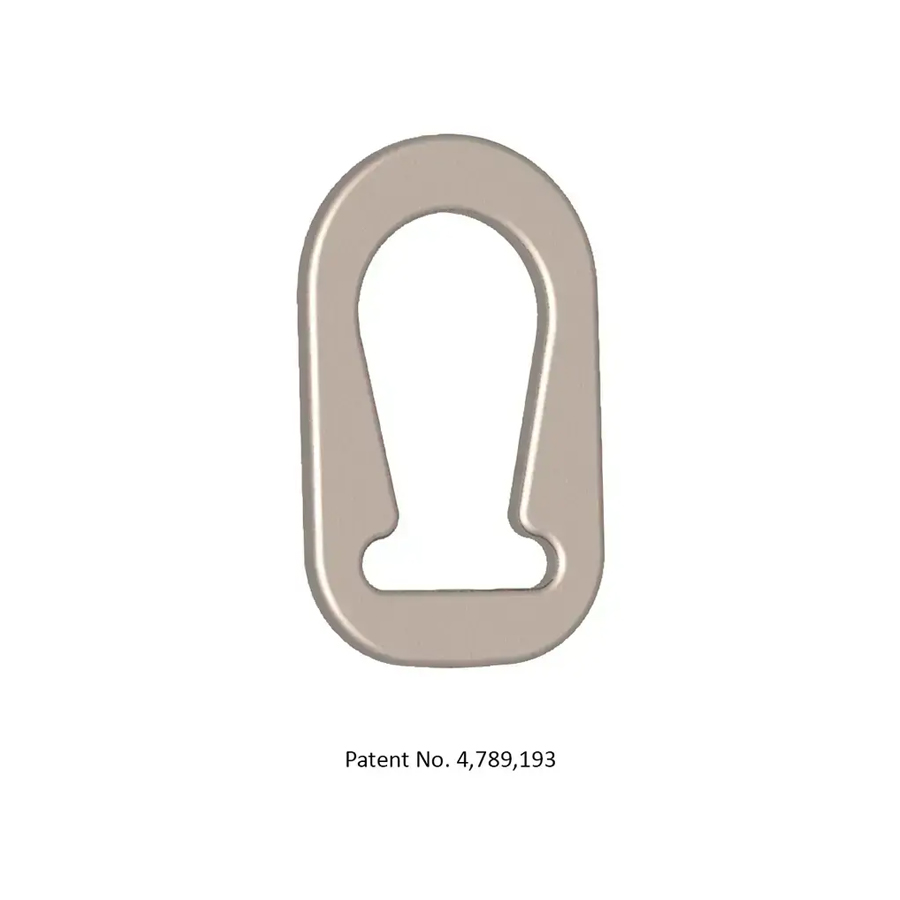

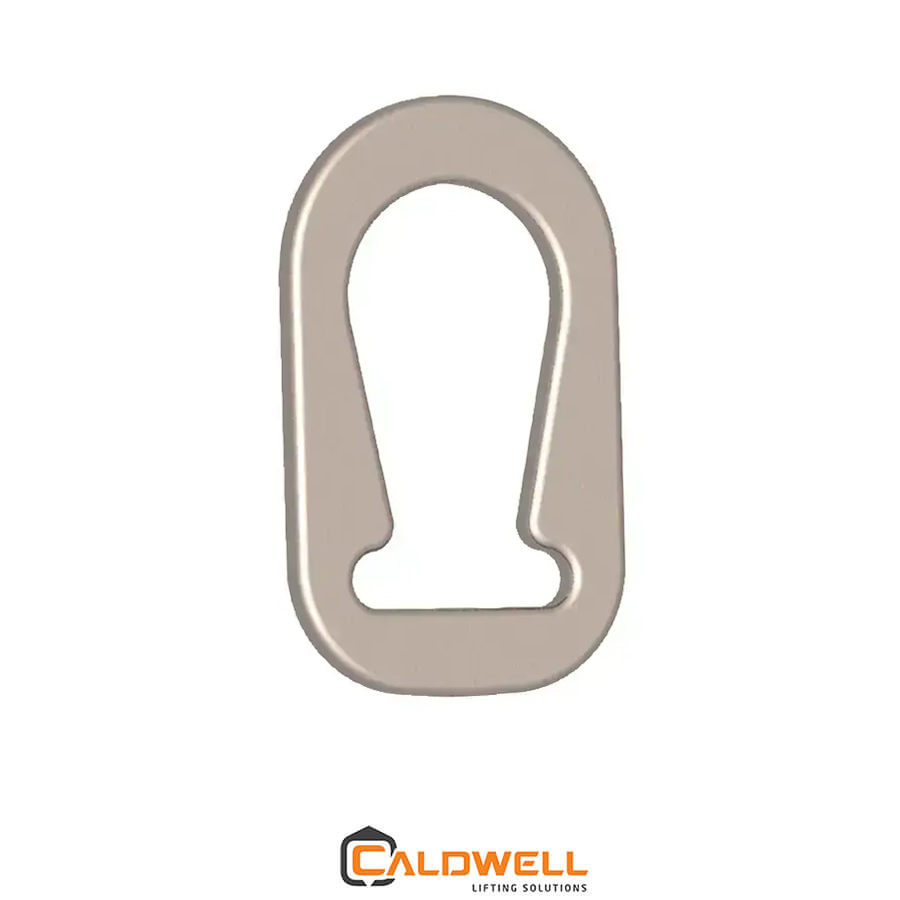

Caldwell Unilink Combination Triangle/Choker Model UL

Caldwell Unilink Combination Triangle/Choker Model UL

Product Features:

  • Forged steel
  • Large crane hook opening for easier rigging
  • Web-Trap design

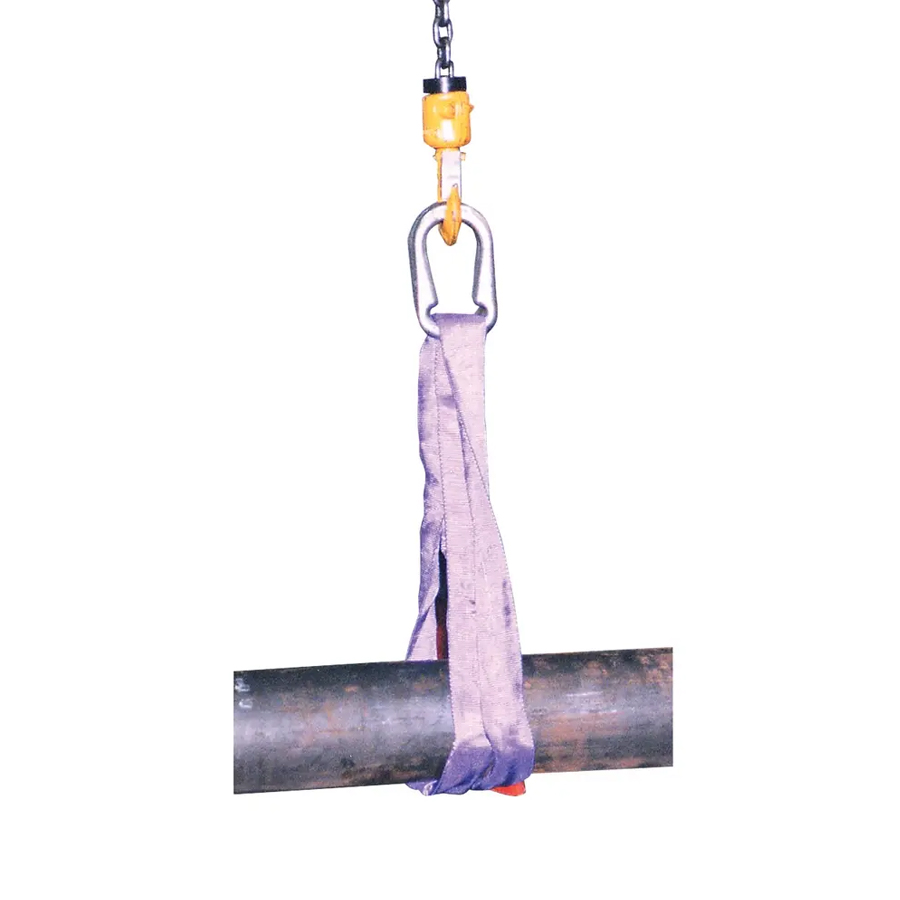

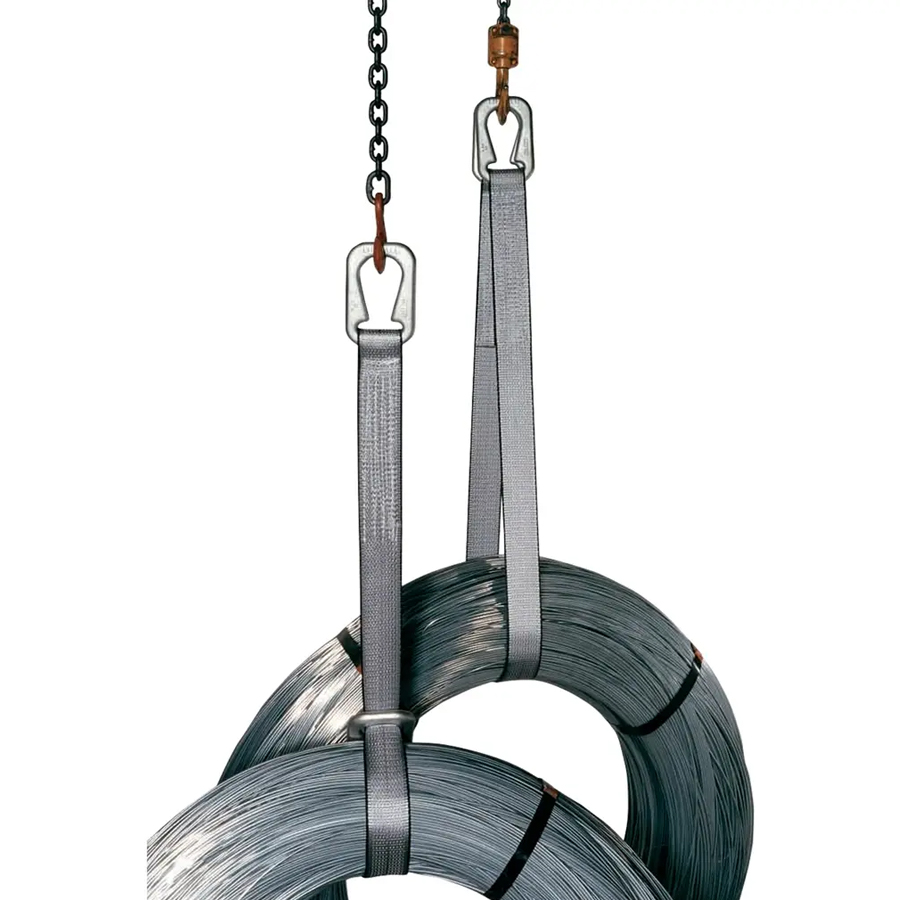

  • Functions as both triangle and choker
  • Plated for corrosion resistance
  • Use with only one or two ply web slings
  • Use with roundslings up to 5,300 pound rated capacity
  • Complies with ASMe B30.9 sling

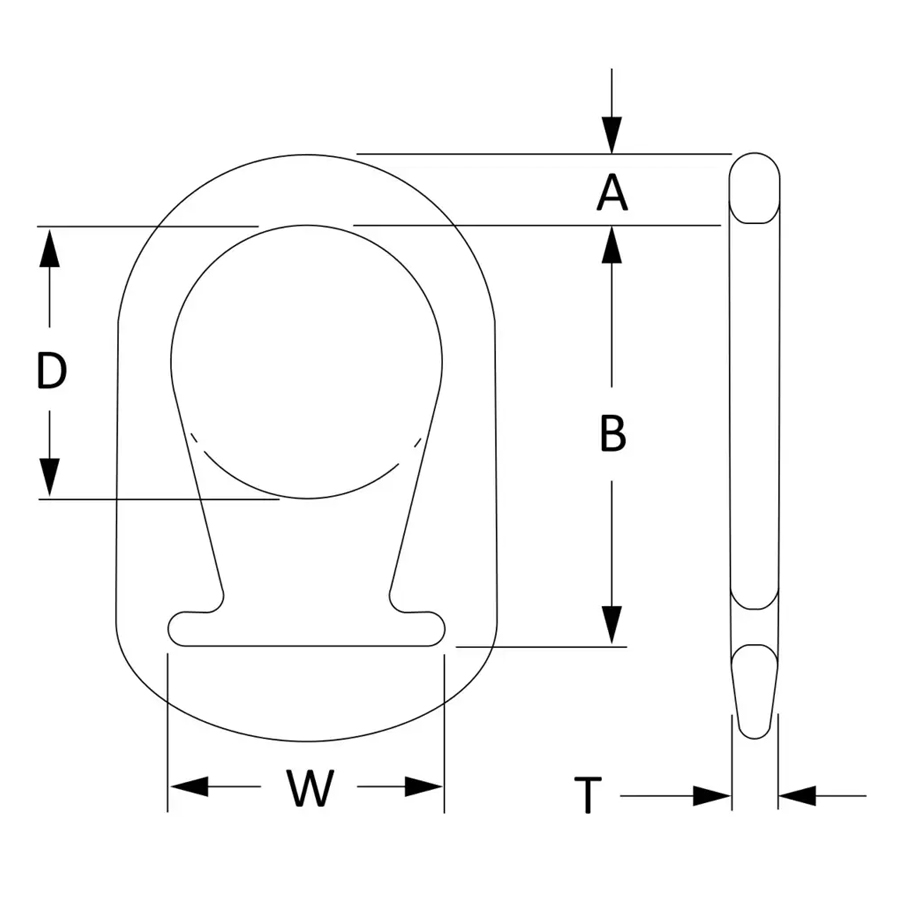

Model Number Capacity pounds (lbs.) Bail Depth (in.) Bail Thick (in.) Weight (lbs.) Max Bowl Dia (in.) Max Sling W (in.) OA Open Ht (in.) In Stock Price
UL2 8000 0.69 0.56 1.1 2 2 3.69 $
UL3 8600 0.88 0.63 2.4 3 3 5.06 $
UL4 11500 0.75 0.63 4 4 4 6.19 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
