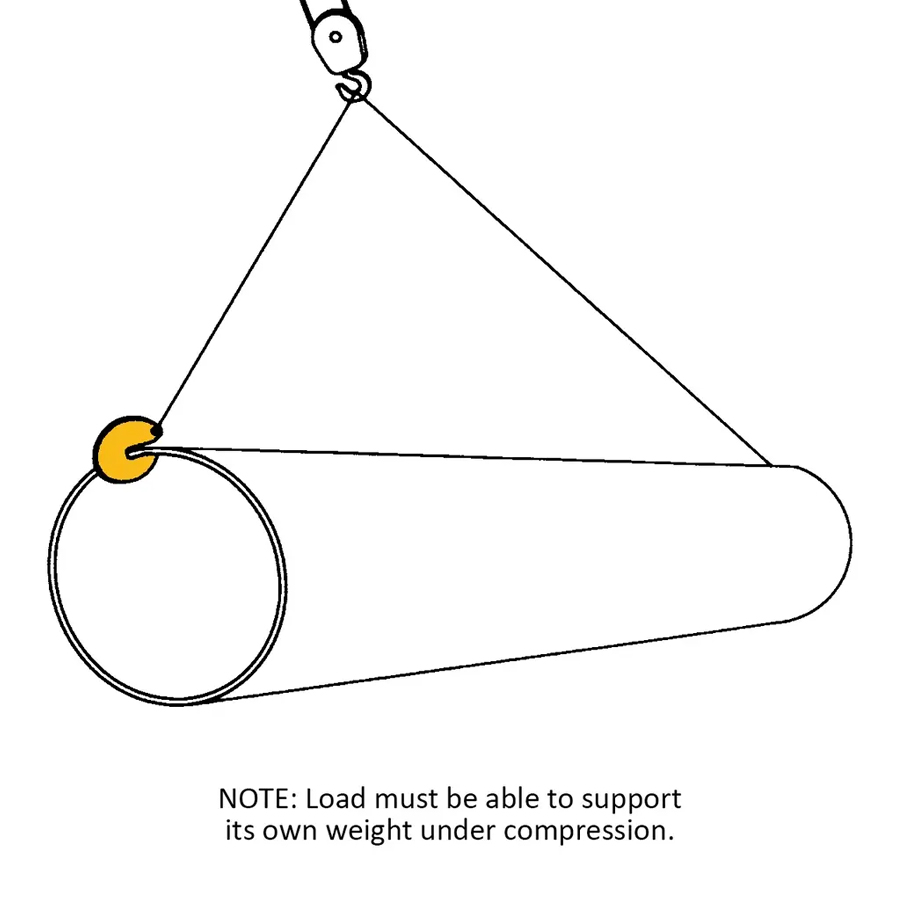

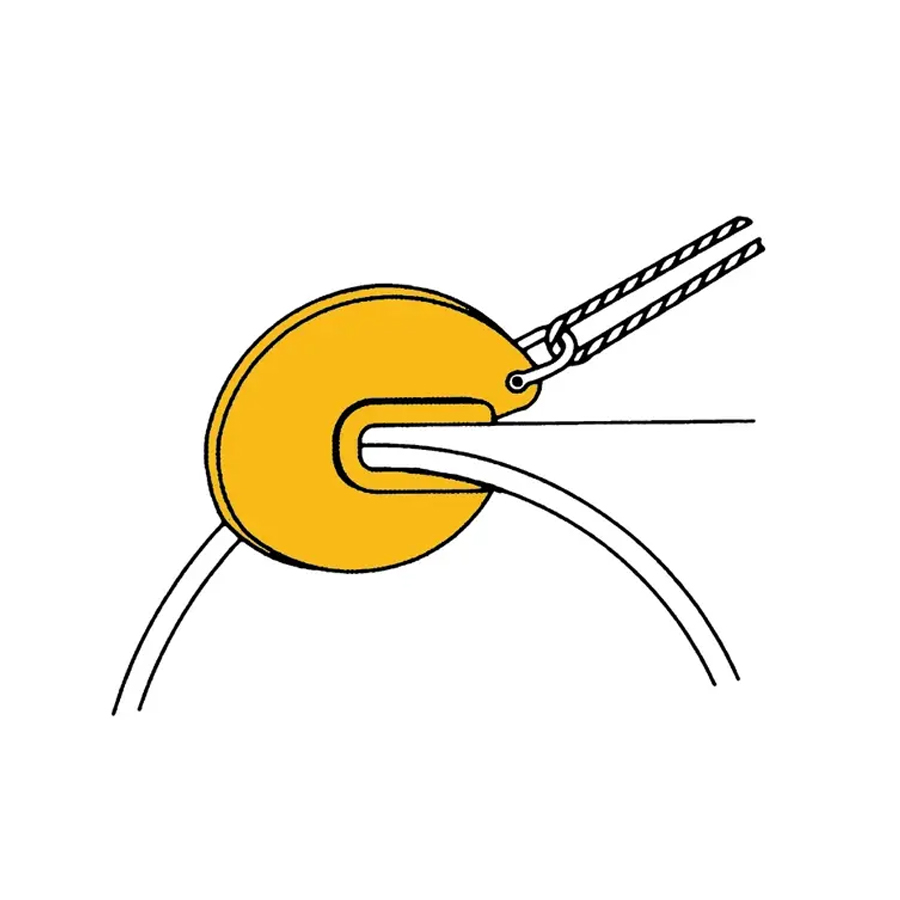

Simplicity personified! Just attach a shackle to the lifting point, slide the “mouth” over the end of the pipe, and you’re ready to lift.
Product Features:
⚠ WARNING:
Use only in pairs.
| Model Number | Capacity (tons) | Bolt Type Anchor Shackle Cap (tons) | Weight (lbs.) | W (in.) | Sling Dia (in.) | Depth (in.) | Hole Dia (in.) | Max Ht (in.) | Max Opening (in.) | Shackle Pin Dia (in.) | In Stock | Price |
| PH 1 | 2 | 2 | 7 | 3.75 | 0.63 | 1.84 | 0.69 | 5.24 | 1.5 | 0.62 | ✔ | $ |
| PH 2 | 4 | 3.25 | 13 | 5.69 | 0.75 | 2.61 | 0.81 | 6.76 | 1.5 | 0.75 | ✔ | $ |
| PH 4 | 8 | 6.5 | 23 | 7.75 | 1 | 3.86 | 1.06 | 7.79 | 1.5 | 1 | ✔ | $ |
| PH 5 | 10 | 8.5 | 38 | 8.15 | 1.25 | 4.06 | 1.19 | 8.93 | 1.5 | 1.12 | ❌ | $ |
| PH 7.5 | 15 | 12 | 56 | 8.15 | 1.75 | 4.06 | 1.44 | 8.93 | 1.5 | 1.38 | ❌ | $ |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
