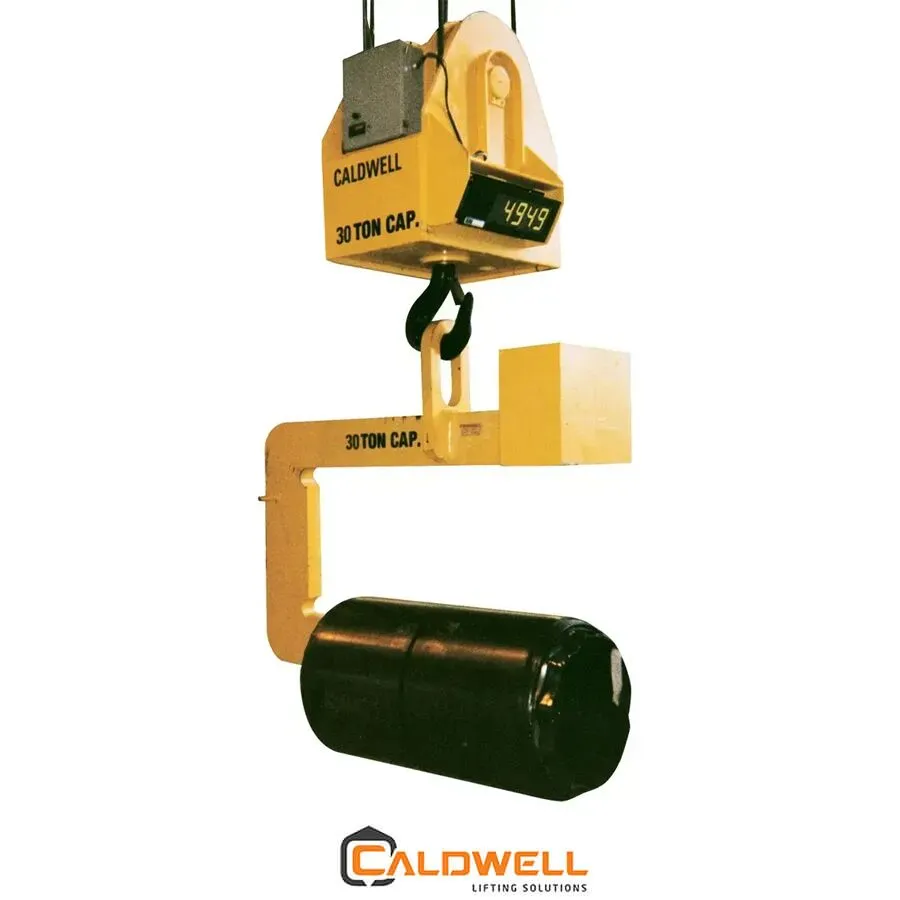

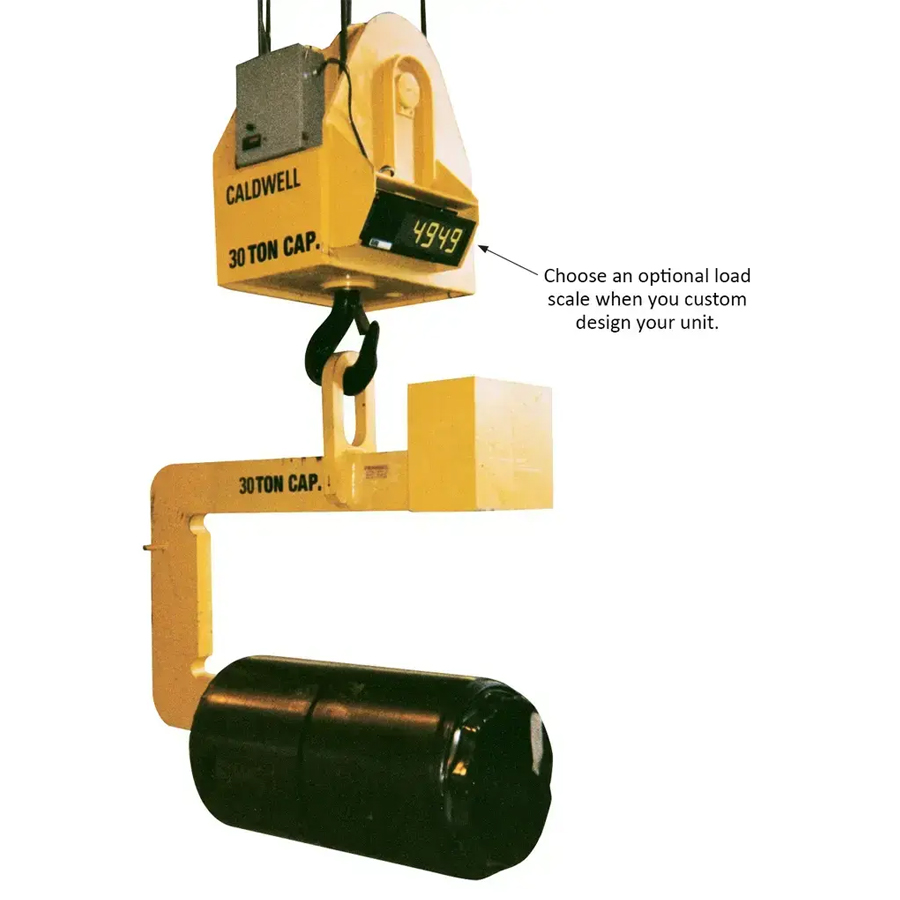

Put the power and control in the crane operator’s skilled, capable hands with the Caldwell Motorized Rotating Crane Hook. With full 360-degree rotation, the operator can place loads in tough to reach or access locations with ease, orienting them exactly right.
Product Features:
- Custom designed to fit your applications
- Allows for independent and precise posiiton of load
- Full 360 degree rotation at 1-1/2 RPM
- Controls feature soft-starting capability
- Designed to operate on either direct or alternating power supply

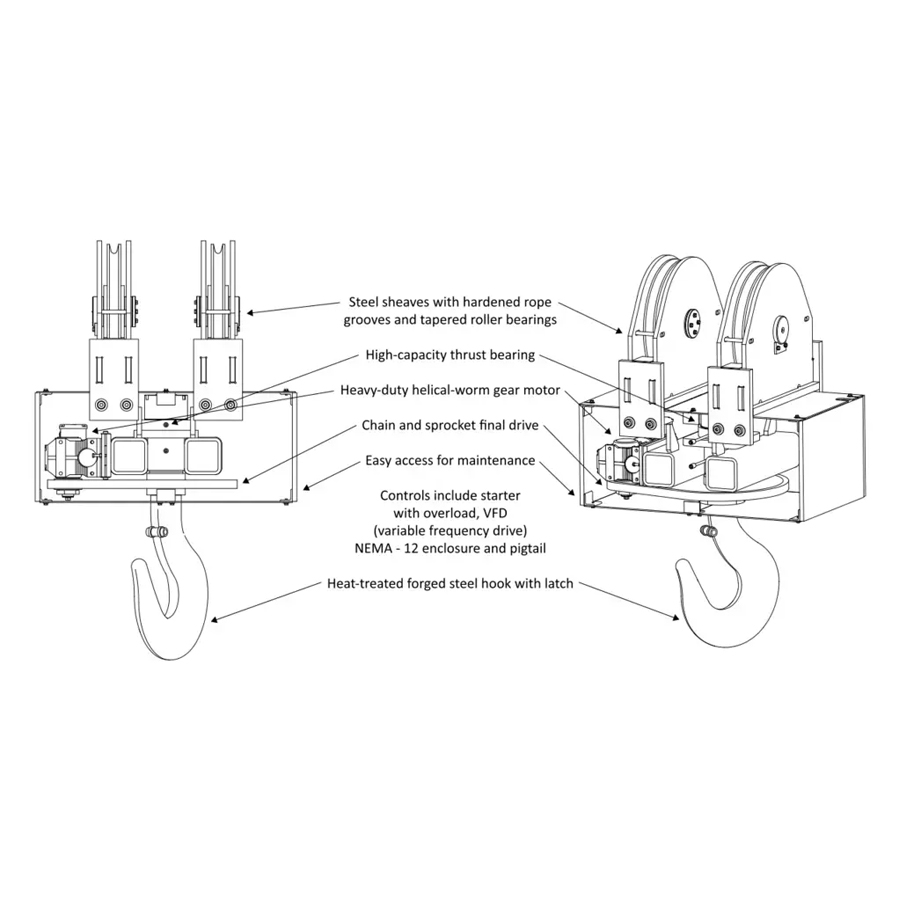

Standard Design Features:
- Steel sheaves with hardened rope grooves and tapered roller bearings
- High-capacity thrust bearing
- Heavy-duty helical-worm gear motor
- Chain and sprocket final drive
- Easy access for maintenance
- Controls include starter with overload, VFD (variable frequency drive) NEMA – 12 enclosure and pigtail
- Heat-treated forged steel hook with latch
