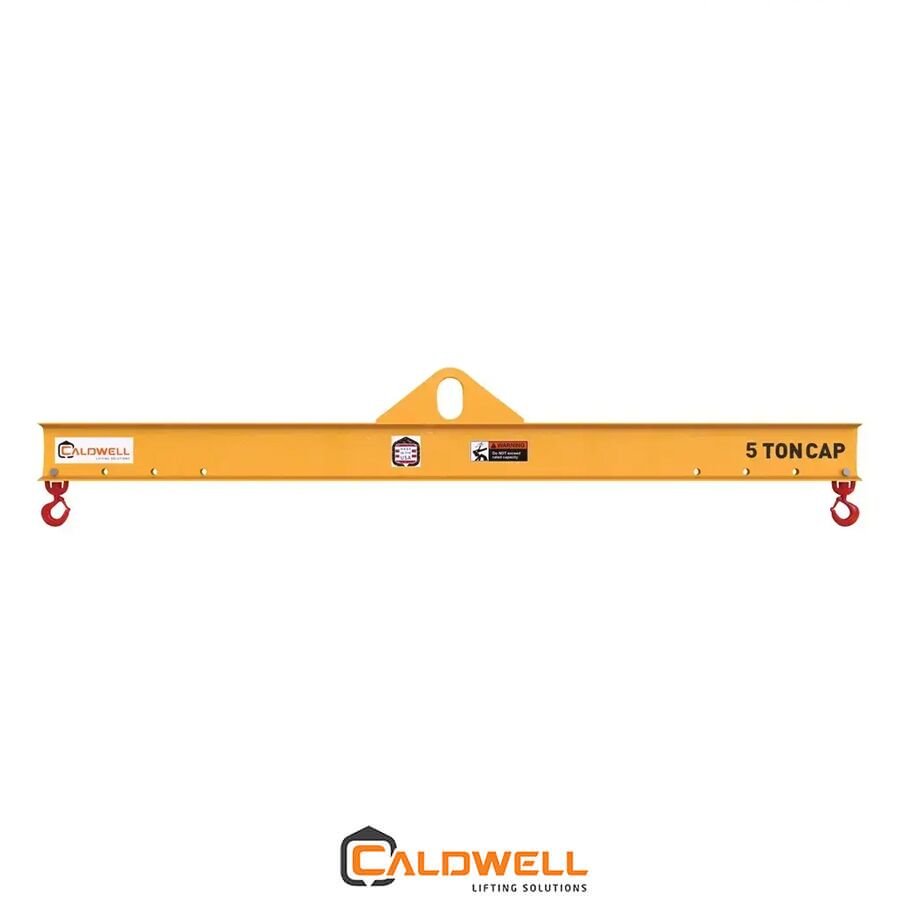

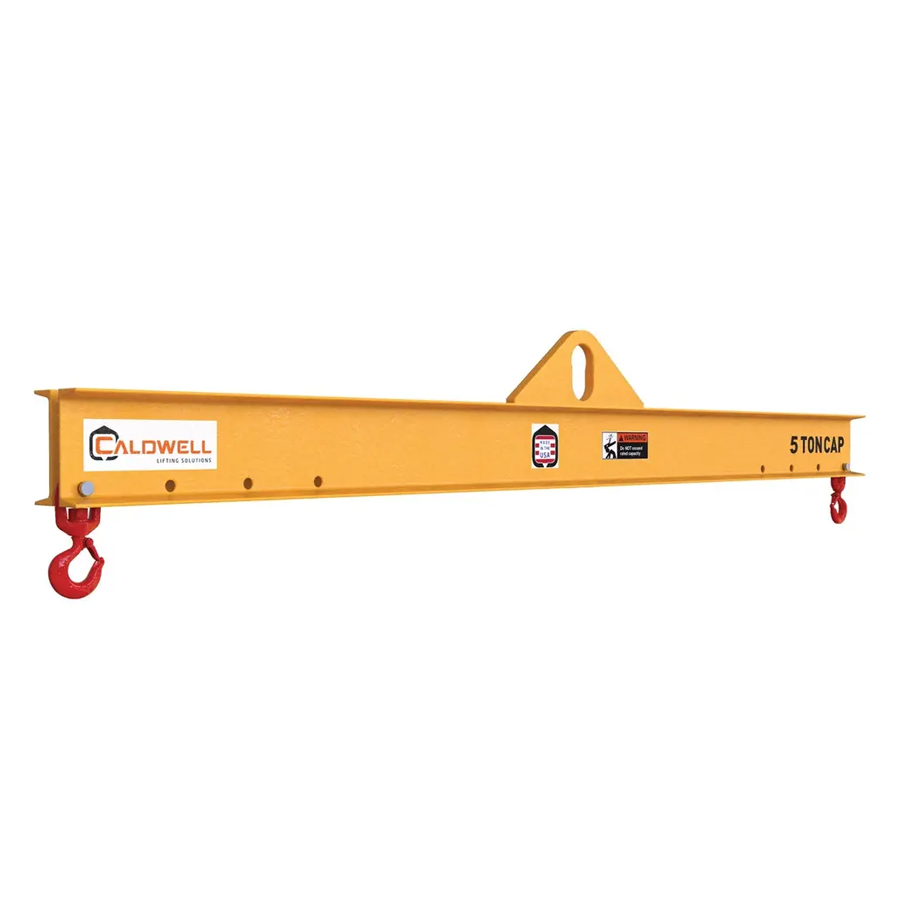

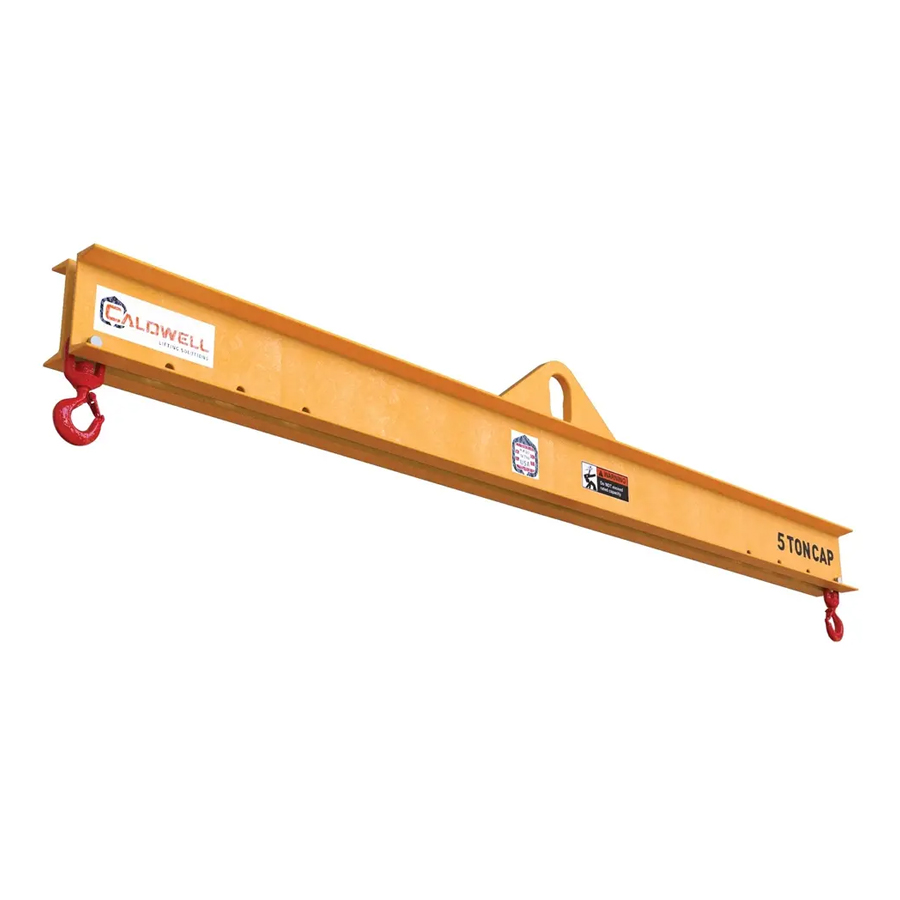

Caldwell Low-Headroom Multiple-Spread Lifting Beam Model 20

Caldwell Low-Headroom Multiple-Spread Lifting Beam Model 20

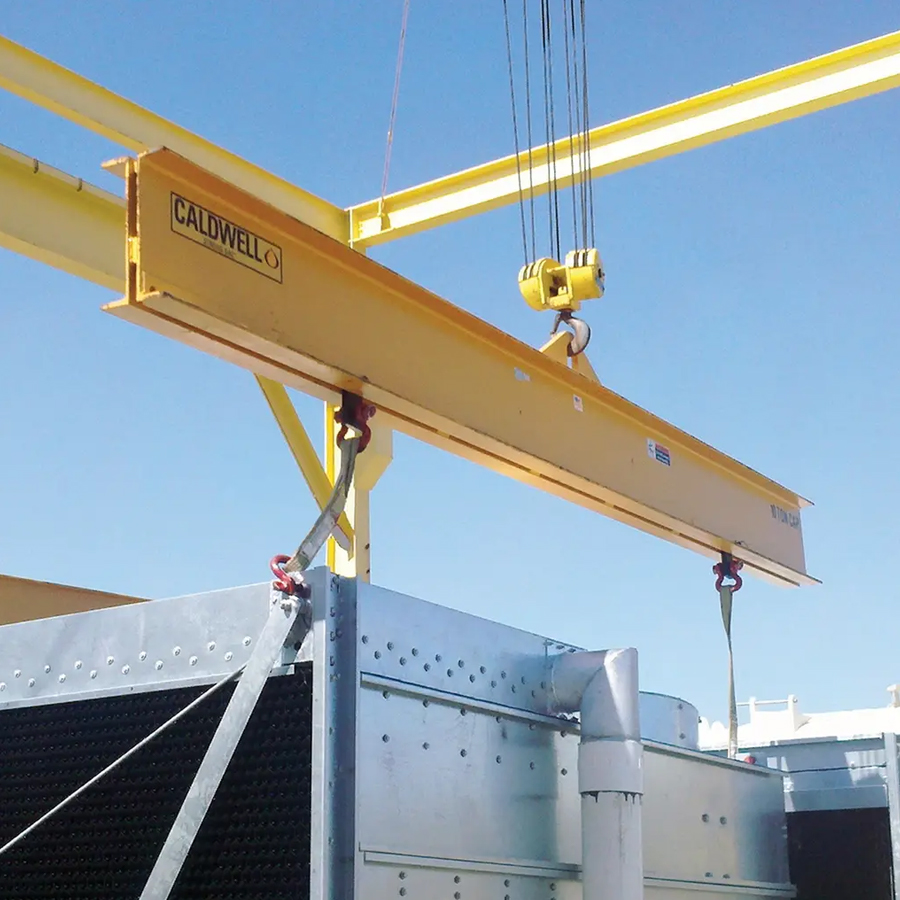

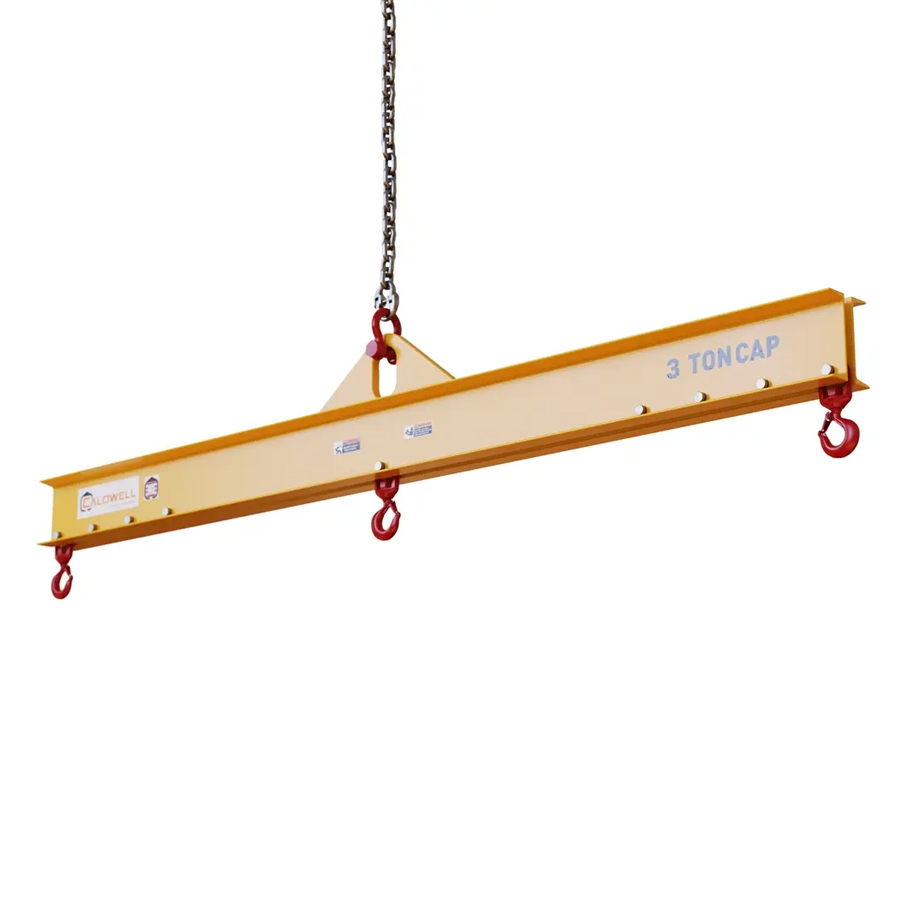

Versatility is the name of the game with the Model 20 Low-Headroom Multiple-Spread Lifting Beam. Used across the country in manufacturing and industrial applications, it’s a favorite on construction sites, too.

With a few dozen standard spreads, lengths and capacities, you’re likely to find an economical solution that fits your use

.

Product Features:

  • Beams over 6′ and longer have 3 spreads
  • 3′ and 4′ beams have 2 spreads
  • Swivel hooks with hook latches standard
  • Wide range of sizes and capacities available
  • Complies with ASME standards.

Standard Features:

  • Three spreads to adjust to the load
    • Outside spread
    • Middle spread (outside less 1′)
    • Inside spread (outside less 2′)

Product Options:

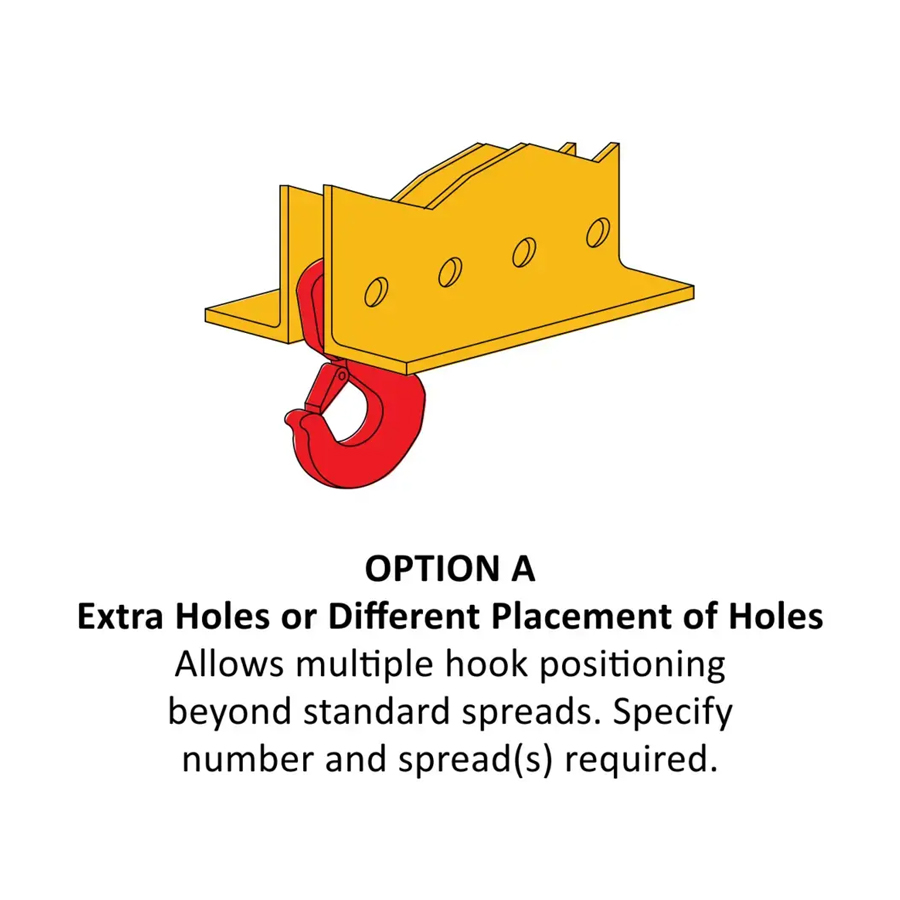

  • OPTION A — Extra Holes or Different Placement of Holes
    Allows mulitiple hook positioning beyond standard spreads. Specify number and spread(s) required.

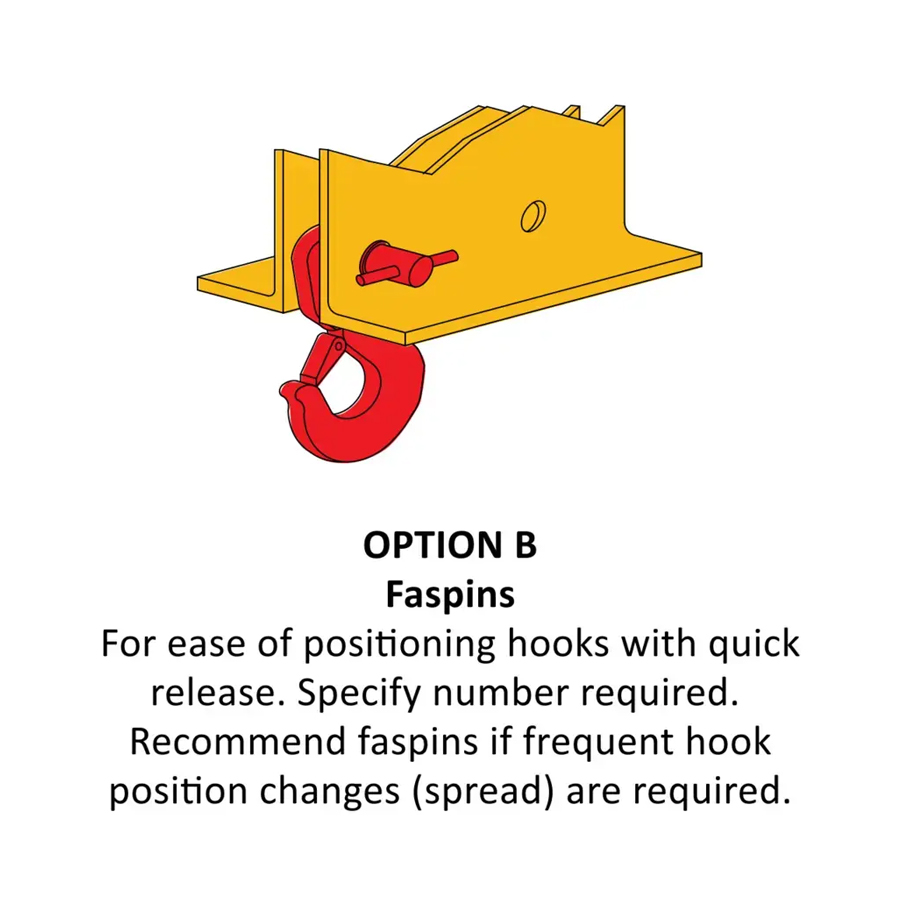

  • OPTION B — Faspins
    For ease of positioning hooks with quick release. Recommended if frequent hook position changes are needed. Specify number required.

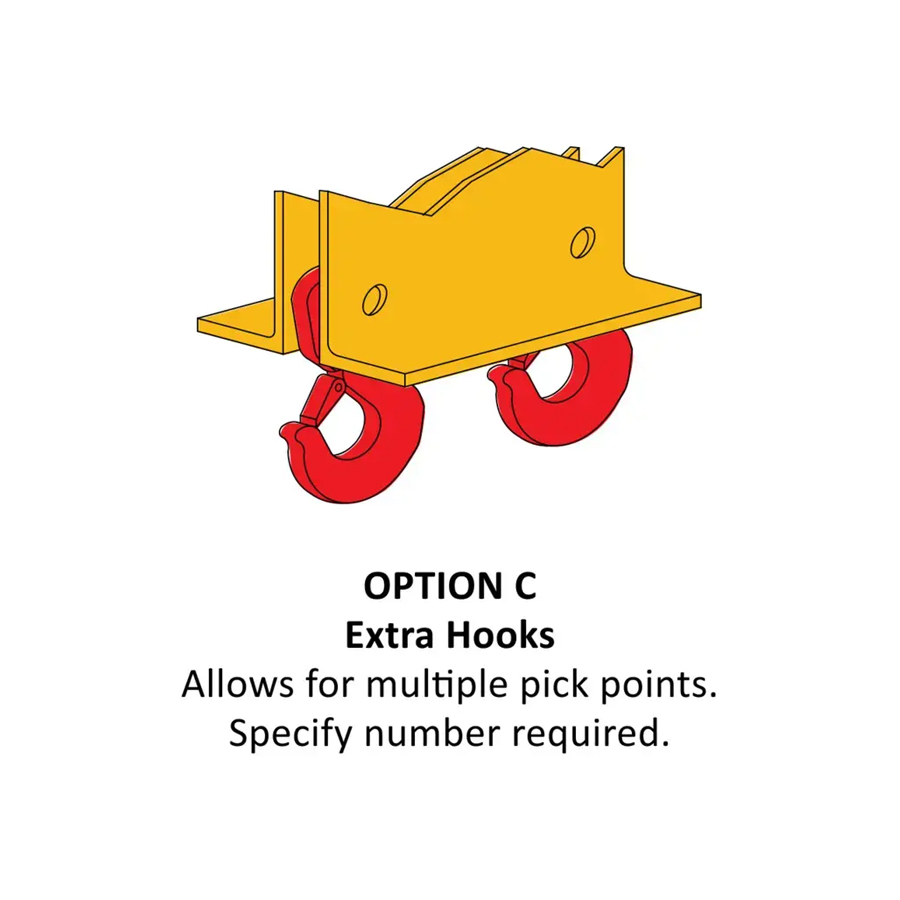

  • OPTION C — Extra Hooks
    Allows for mulitiple pick points. Specify number required.

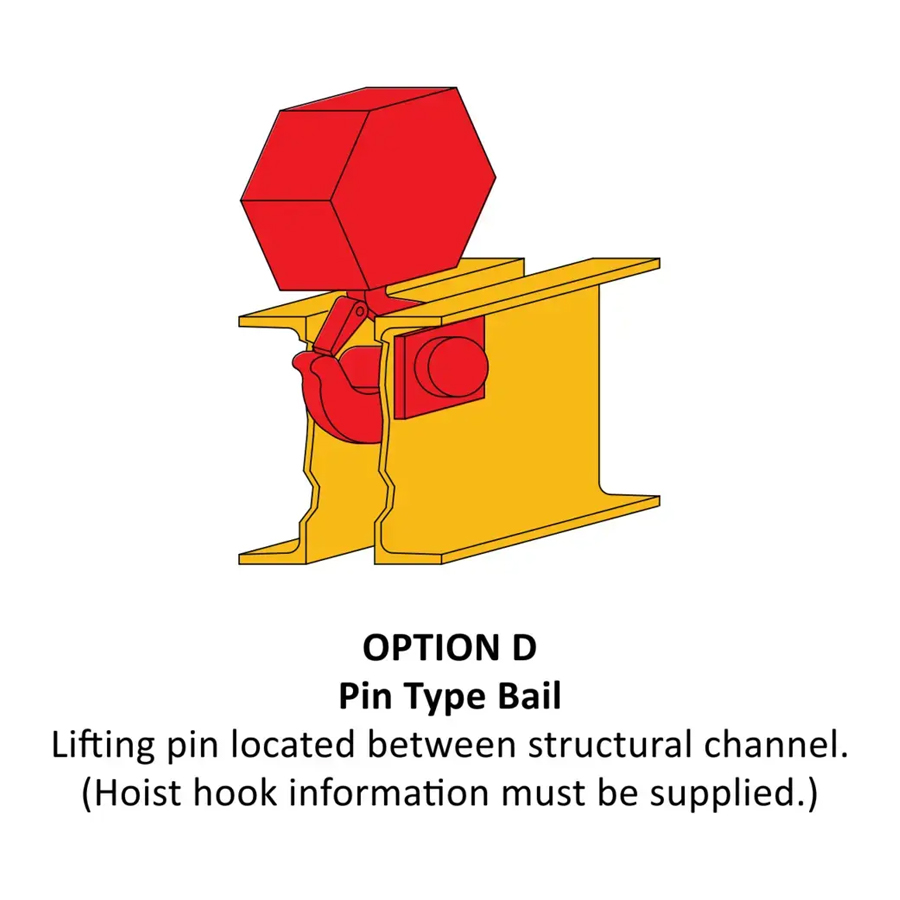

  • OPTION D — Pin Type Bail
    Lifting pin located between structural channel. (Hoist hook information must be supplied.)
  • OPTION E — Shackle Lug
    Lifting llug with shackle. (Headroom may change.)

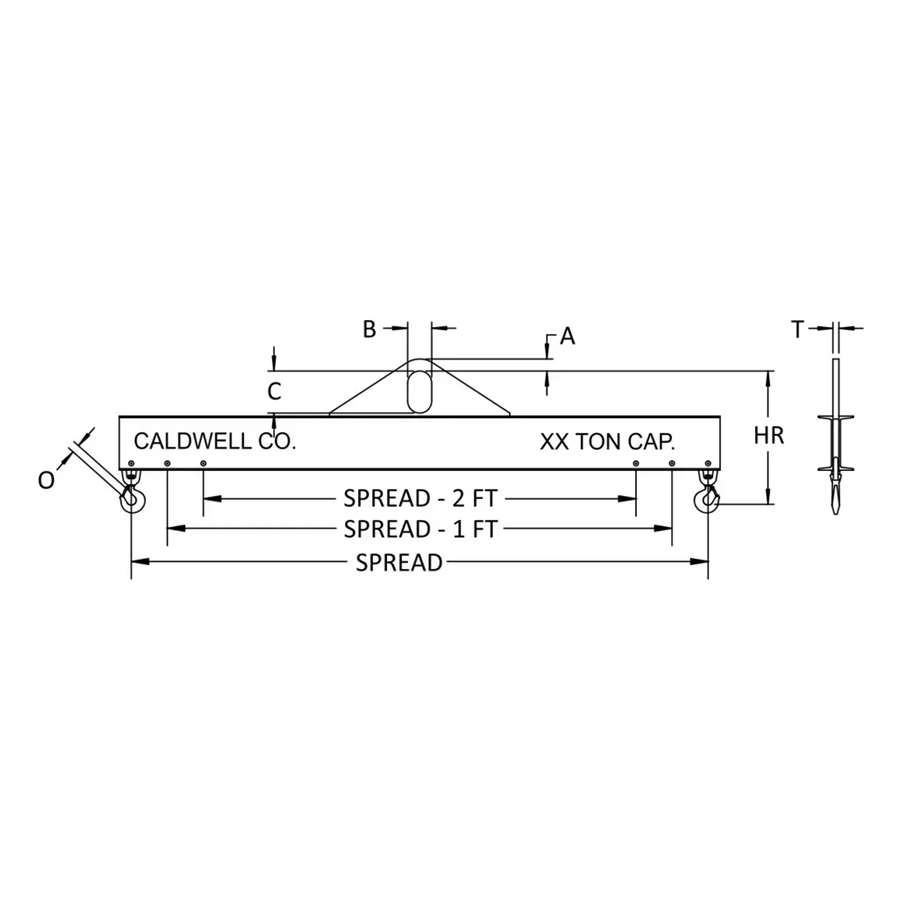

Model Number Capacity (tons) Maximum Spread (in.) HR (in.) A (in.) B (in.) C (in.) O (in.) Weight (lbs.) Bail Thickness (in.) In Stock Price
20-1/2-3 0.5 36 12.75 0.88 3 5 0.88 40 0.75 $
20-1/2-4 0.5 48 12.75 0.88 3 5 0.88 50 0.75 $
20-1/2-6 0.5 72 12.75 0.875 3 5 0.875 65 0.75 $
20-1/2-8 0.5 96 12.75 0.88 3 5 0.88 95 0.75 $
20-1/2-10 0.5 120 13.75 0.88 3 5 0.88 140 0.75 $
20-1/2-12 0.5 144 13.75 0.88 3 5 0.88 160 0.75 $
20-1/2-14 0.5 168 14.75 0.875 3 5 0.875 230 0.75 $
20-1/2-16 0.5 192 15.75 0.875 3 5 0.875 305 0.75 $
20-1/2-18 0.5 216 16.75 0.875 3 5 0.875 400 0.75 $
20-1/2-20 0.5 240 16.75 0.875 3 5 0.875 450 0.75 $
20-1/2-24 0.5 288 20.25 0.875 3 5 0.875 830 0.75 $
20-1/2-30 0.5 360 22.25 0.875 3 5 0.875 1340 0.75 $
20-1-3 1 36 12.75 0.88 3 5 0.88 40 0.75 $
20-1-4 1 48 12.75 0.88 3 5 0.88 50 0.75 $
20-1-6 1 72 13.75 0.88 3 5 0.88 85 0.75 $
20-1-8 1 96 13.75 0.875 3 5 0.875 115 0.75 $
20-1-10 1 120 14.75 0.875 3 5 0.875 165 0.75 $
20-1-12 1 144 15.75 0.875 3 5 0.875 230 0.75 $
20-1-14 1 168 16.75 0.875 3 5 0.875 320 0.75 $
20-1-16 1 192 18.5 0.875 3 5 0.875 415 0.75 $
20-1-18 1 216 20.25 0.875 3 5 0.875 605 0.75 $
20-1-20 1 240 20.25 0.875 3 5 0.875 675 0.75 $
20-1-24 1 288 22.25 0.875 3 5 0.875 1095 0.75 $
20-2-3 2 36 13.75 0.88 3 5 0.875 50 0.75 $
20-2-4 2 48 13.75 0.88 3 5 0.88 65 0.75 $
20-2-6 2 72 14.75 0.875 3 5 0.88 100 0.75 $
20-2-8 2 96 16.5 0.875 3 5 0.875 165 0.75 $
20-2-10 2 120 17.5 0.875 3 5 0.875 230 0.75 $
20-2-12 2 144 18.25 0.875 3 5 0.875 315 0.75 $
20-2-14 2 168 20.25 0.875 3 5 0.875 480 0.75 $
20-2-16 2 192 20.25 0.875 3 5 0.875 540 0.75 $
20-2-18 2 216 24.75 0.875 3 5 0.875 800 0.75 $
20-2-20 2 240 24.75 0.875 3 5 0.875 900 0.75 $
20-2-24 2 288 27.75 0.875 3 5 0.875 1730 0.75 $
20-3-3 3 36 15.25 1 3 5 1.25 70 1 $
20-3-4 3 48 15.25 1 3 5 1.25 80 1 $
20-3-6 3 72 16.25 1.25 3 5 1.25 140 1 $
20-3-8 3 96 17.25 1.25 3 5 1.25 200 1 $
20-3-10 3 120 18.25 1.25 3 5 1.25 275 1 $
20-3-12 3 144 22.5 1.25 3 5 1.25 415 1 $
20-3-14 3 168 24.5 1.25 3 5 1.25 650 1 $
20-3-16 3 192 24.5 1.25 3 5 1.25 730 1 $
20-3-18 3 216 27.5 1.25 3 5 1.25 1295 1 $
20-3-20 3 240 27.5 1.25 3 5 1.25 1450 1 $
20-3-24 3 288 27.5 1.25 3 5 1.25 1765 1 $
20-5-3 5 36 19.5 2 4 7 1.9375 115 1.25 $
20-5-4 5 48 20.5 2 4 7 1.9375 145 1.25 $
20-5-6 5 72 21.5 2 4 7 1.94 205 1.25 $
20-5-8 5 96 25.5 2 4 7 1.94 325 1.25 $
20-5-10 5 120 25.5 2 4 7 1.94 390 1.25 $
20-5-12 5 144 27.5 2 4 7 1.94 580 1.25 $
20-5-14 5 168 27.5 2 4 7 1.94 690 1.25 $
20-5-16 5 192 30.25 2 4 7 1.94 1210 1.25 $
20-5-18 5 216 30.25 2 4 7 1.94 1340 1.25 $
20-5-20 5 240 30.25 2 4 7 1.94 1505 1.25 $
20-5-24 5 288 33.25 2 4 7 1.9375 2275 1.25 $
20-7 1/2-3 7.5 36 22.5 2 4 7 1.5 135 1.25 $
20-7 1/2-4 7.5 48 23.5 2 4 7 1.5 170 1.25 $
20-7 1/2-6 7.5 72 25.25 2 4 7 1.5 265 1.25 $
20-7 1/2-8 7.5 96 27.25 2 4 7 1.5 415 1.25 $
20-7 1/2-10 7.5 120 27.25 2 4 7 1.5 500 1.25 $
20-7 1/2-12 7.5 144 30.25 2 4 7 1.5 910 1.25 $
20-7 1/2-14 7.5 168 30.25 2 4 7 1.5 1070 1.25 $
20-7 1/2-16 7.5 192 30.25 2 4 7 1.5 1600 1.25 $
20-7 1/2-18 7.5 216 33 2 4 7 1.5 1665 1.25 $
20-10-3 10 36 23.25 2 4 7 1.5625 15 1.25 $
20-10-4 10 48 25.25 2 4 7 1.5625 205 1.25 $
20-10-6 10 72 27.25 2 4 7 1.5625 335 1.25 $
20-10-8 10 96 27.25 2 4 7 1.5625 420 1.25 $
20-10-10 10 120 30.25 2 4 7 1.5625 775 1.25 $
20-10-12 10 144 30.25 2 4 7 1.5625 910 1.25 $
20-10-14 10 168 30.25 2 4 7 1.5625 1075 1.25 $
20-10-16 10 192 33 2 4 7 1.5625 1500 1.25 $
20-10-18 10 216 33 2 4 7 1.5625 1670 1.25 $
20-15-3 15 36 28.5 2.5 5 9 2.0625 215 1.5 $
20-15-4 15 48 30.5 2.5 5 9 2.0625 295 1.5 $
20-15-6 15 72 30.5 2.5 5 9 2.0625 375 1.5 $
20-15-8 15 96 33.5 2.5 5 9 2.0625 685 1.5 $
20-15-10 15 120 33.5 2.5 5 9 2.0625 820 1.5 $
20-15-12 15 144 40.25 2.5 5 9 2.0625 1180 1.5 $
20-15-14 15 168 40.25 2.5 5 9 2.0625 1385 1.5 $
20-20-3 20 36 38.75 2.5 5 9 2.25 370 1.5 $
20-20-4 20 48 38.75 2.5 5 9 2.25 435 1.5 $
20-20-6 20 72 38.75 2.5 5 9 2.25 575 1.5 $
20-20-8 20 96 38.75 2.5 5 9 2.25 710 1.5 $
20-20-10 20 120 41.5 2.5 5 9 2.25 1070 1.5 $
20-20-12 20 144 41.5 2.5 5 9 2.25 1235 1.5 $
20-25-4 25 48 41.375 3 6 12 2.25 470 1.75 $
20-25-6 25 72 41.375 3 6 12 2.25 590 1.75 $
20-25-8 25 96 44.375 3 6 12 2.25 925 1.75 $
20-25-10 25 120 44.375 3 6 12 2.25 1100 1.75 $
20-25-12 25 144 44.38 3 6 12 2.25 1650 1.75 $
20-30-4 30 48 45.5 3.5 7 16 2.25 525 2 $
20-30-6 30 72 45.5 3.5 7 16 2.25 660 2 $
20-30-8 30 96 48.25 3.5 7 16 2.25 1010 2 $
20-40-4 40 48 44.75 3.5 7 16 3 600 2.5 $
20-40-6 40 72 47.75 3.5 7 16 3 930 2.5 $
