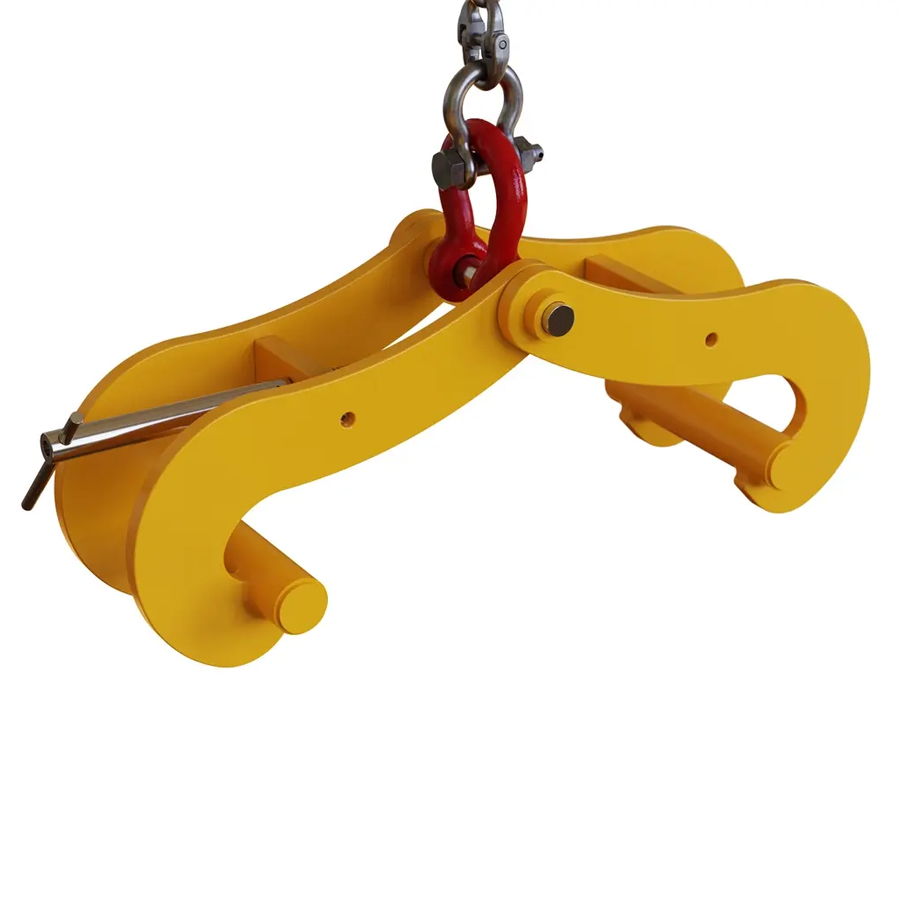

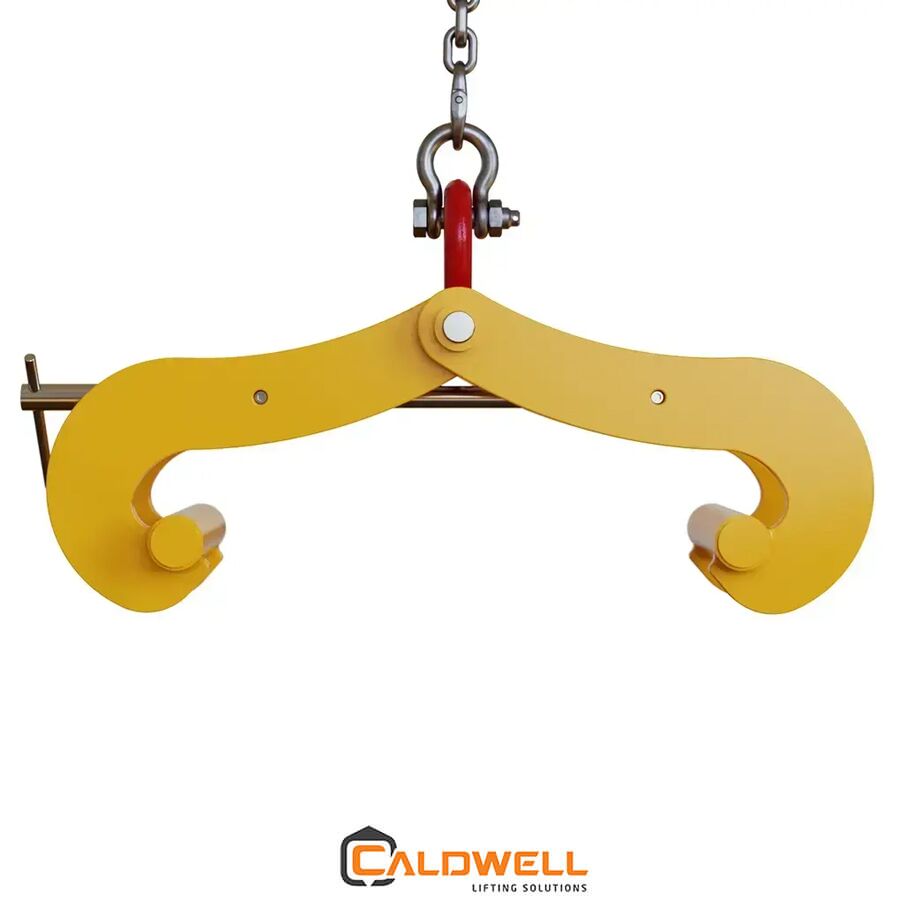

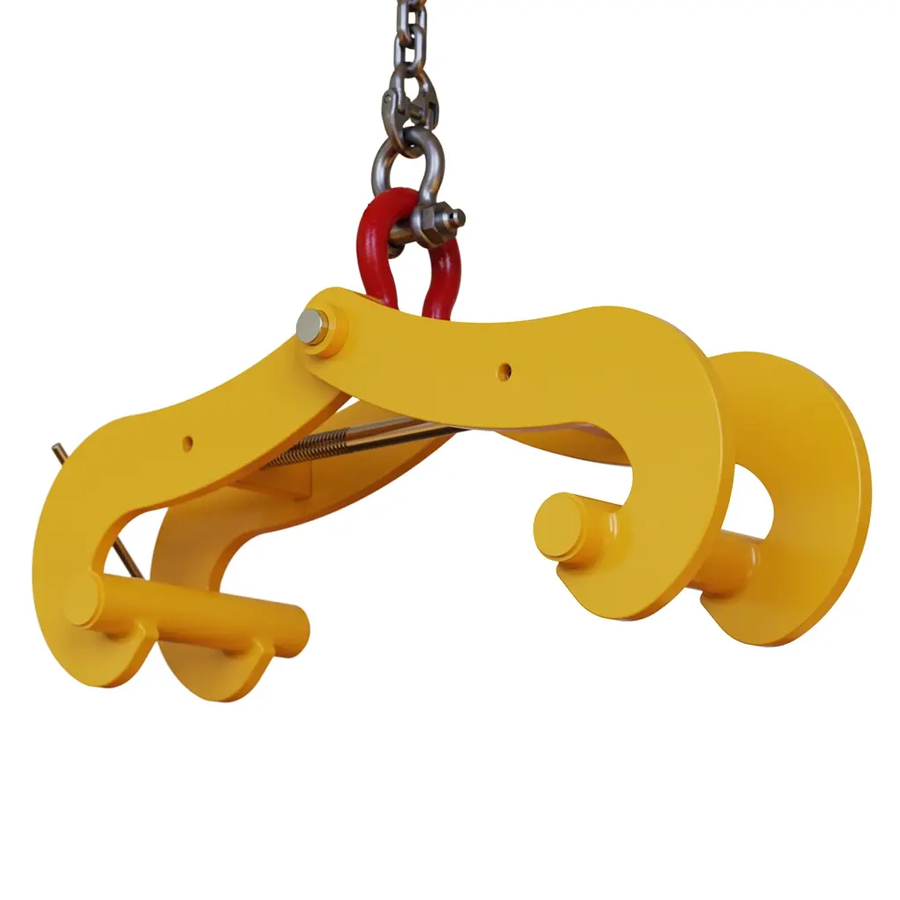

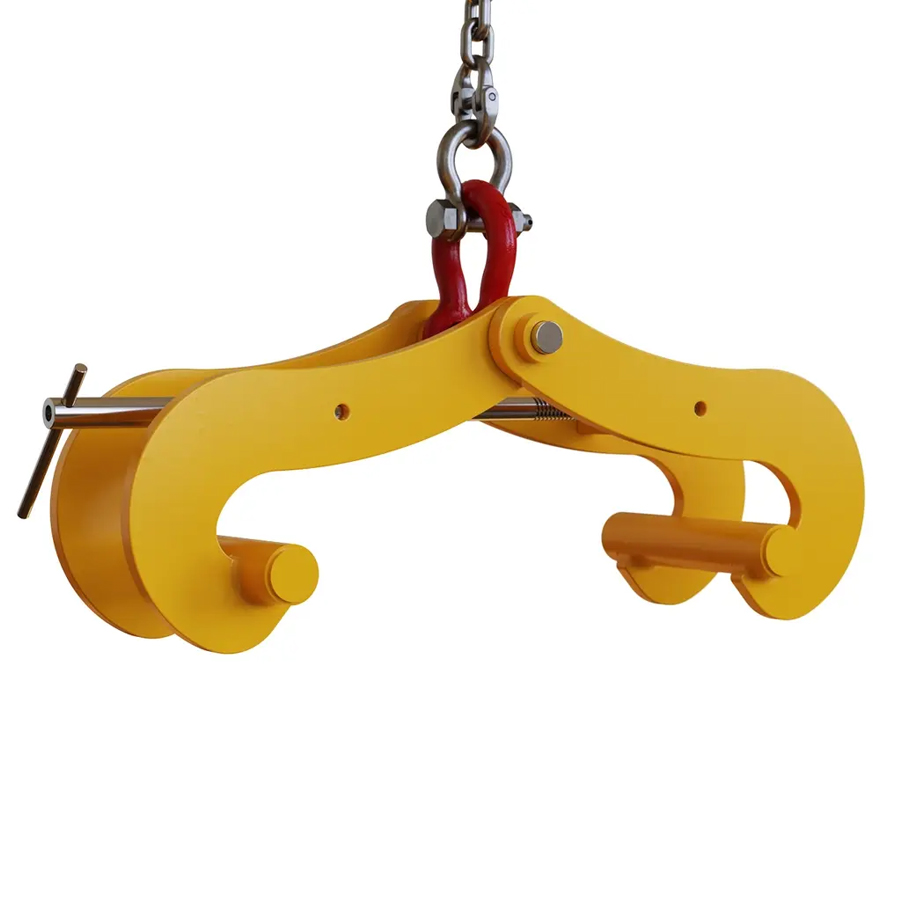

Caldwell Girder Clamps Model GC

Caldwell Girder Clamps Model GC

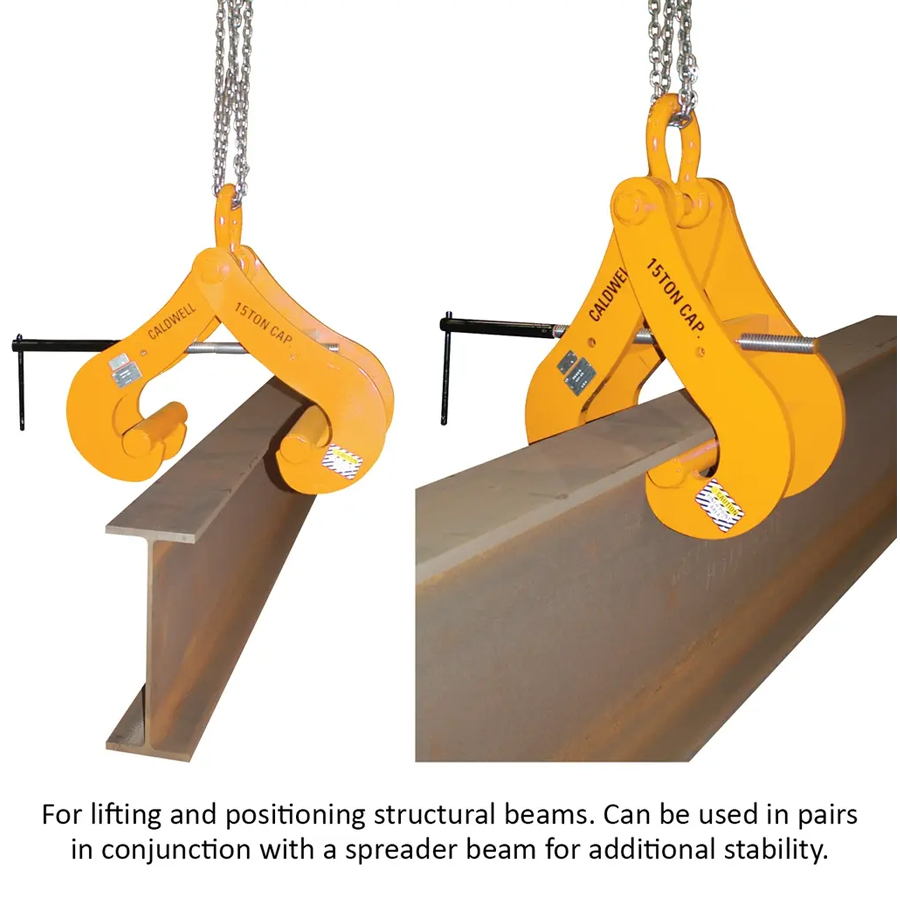

Choose from three lifting capacities: 15, 20, or 25 tons. For lifting and positioning structural beams. Can be used in pairs in conjunction with a spreader beam for additional stability. For vertical lifting only.

Product Features:

  • These clamps provide an efficient method for handling wide flange beam sections and plate girders
  • Screw-spindle design ensures positive grip
  • Simple design ensures minimum maintenance
  • Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping
  • Jaw opening adjusts to a wide range of beam types and flange widths
  • Use only for vertical lifting
  • Complies with ASME standards

⚠ WARNING
Use only for vertical lifting.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

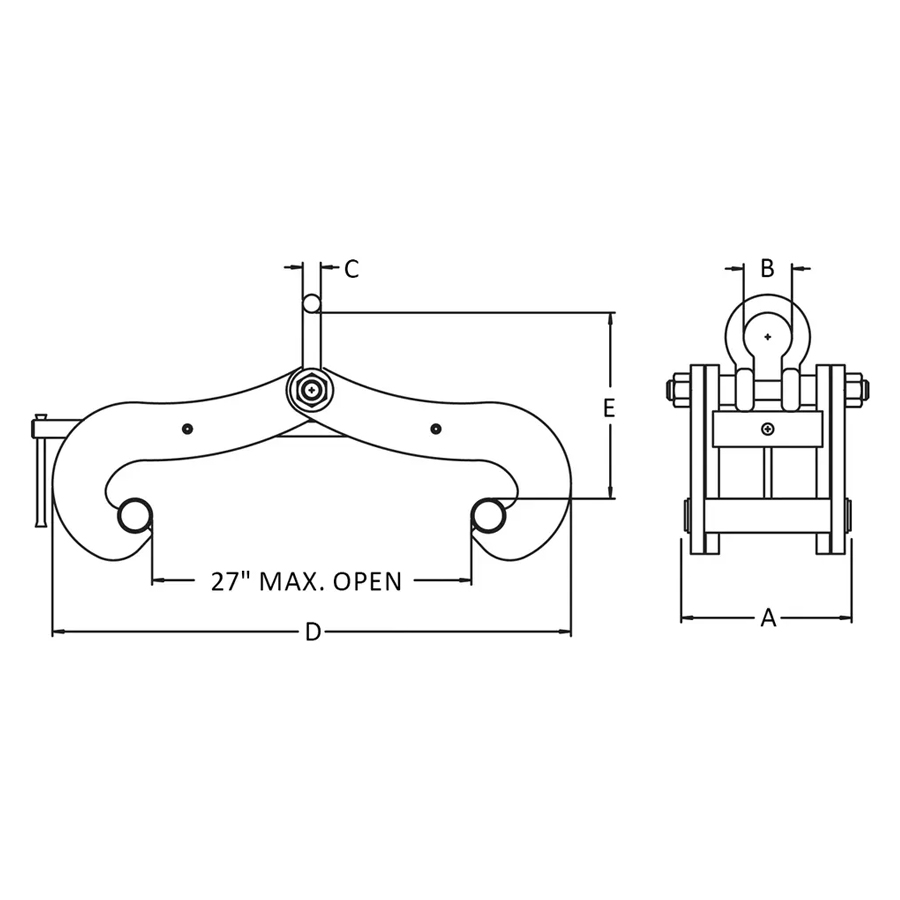

Model Number Capacity (tons) Max Flange Thickness (in.) Weight (lbs.) Max Flange W (in.) Max HR Closed (in.) Max W Closed (in.) Max W Open (in.) Min Flange W (in.) Min HR Open (in.) Product Depth (in.) Shackle Open (in.) Shackle Thick (in.) In Stock Price
GC-15 15 3 235 24 23.4 44 23 6 15.7 14.81 3.9 1.6 ✔ $
GC-20 20 3 291 24 25.9 44 23 6 18.3 14.81 5 2.1 ✔ $
GC-25 25 3 342 24 25.9 44 23 6 18.3 14.81 5 2.1 ✔ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
