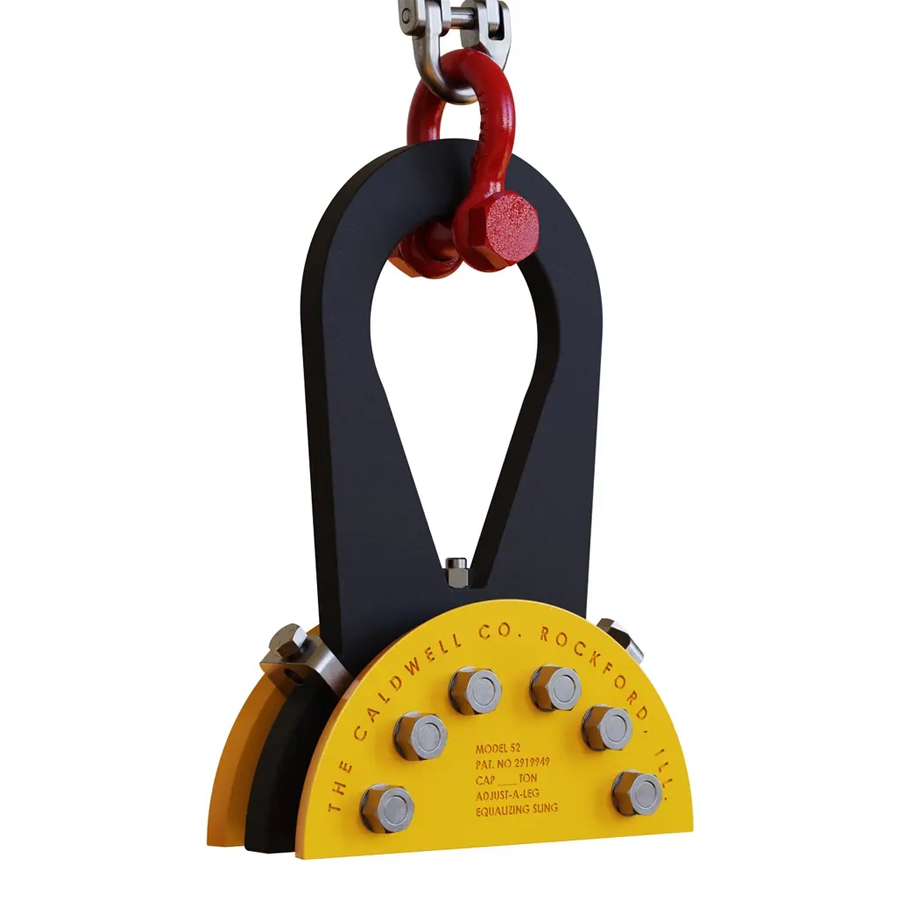

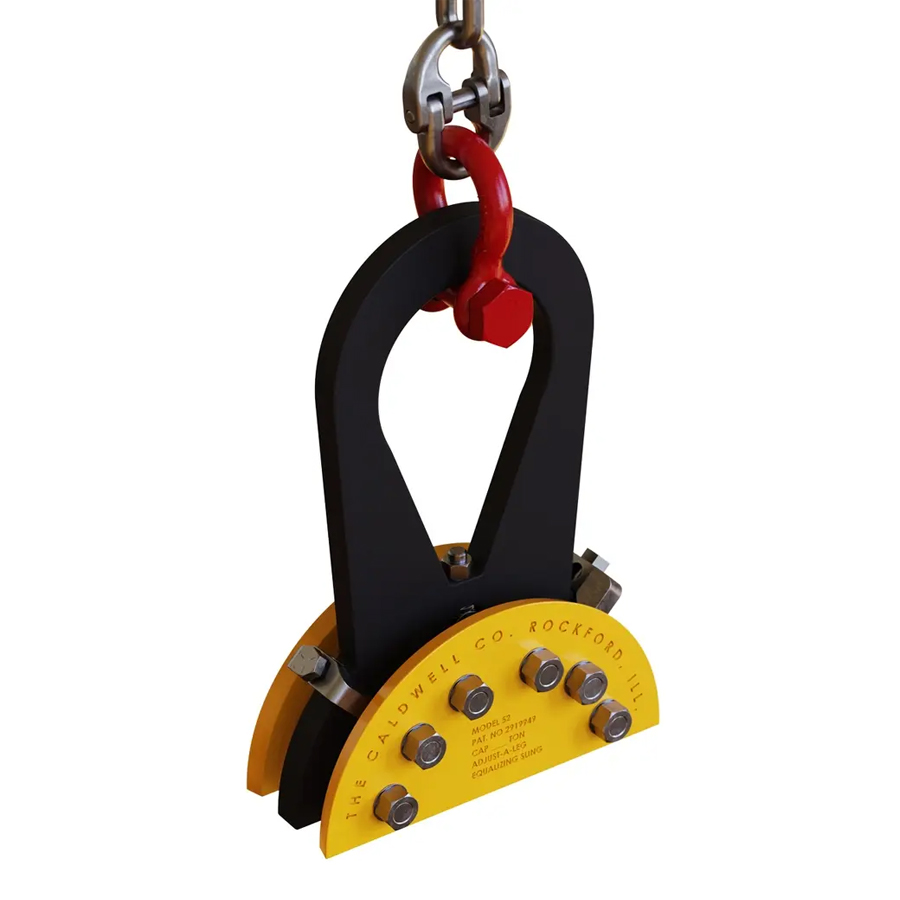

Caldwell Adjust-A-Leg Two Point Lift – Model AL2

Caldwell Adjust-A-Leg Two Point Lift - Model AL2

Caldwell’s patented design to safely lift unbalanced loads has evolved a bit since 1954, but not much. When it’s right, it’s right.

Features:

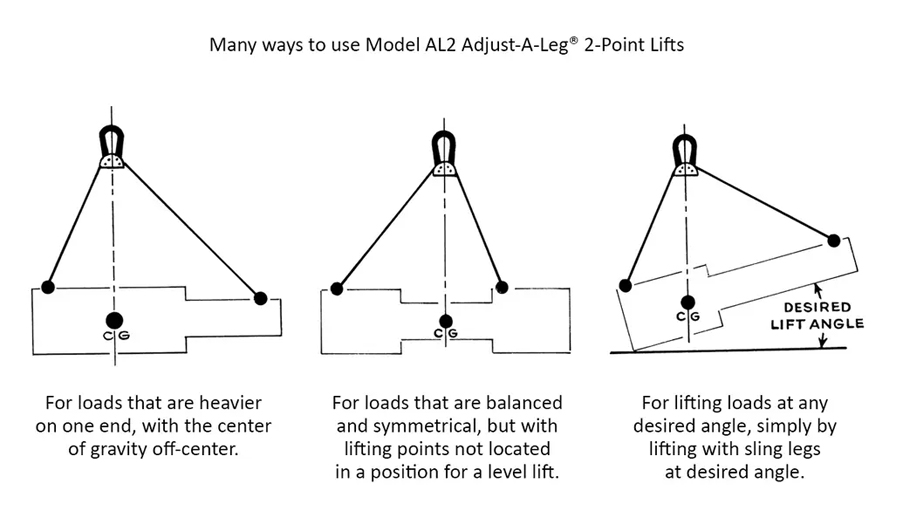

  • Allows crane hook to be over the load’s center of gravity in unbalanced or non-symmetrical 2-point lifts
  • Quickly adjusts to center of gravity
  • Can be locked into place for constant lifts
  • Can be used in conjunction with spreader beams
  • Ideal for use in rigging applications and machinery moving
  • Complies with ASME standards
  • Reach calculation – approximately 70% distance between pick up points
  • Unit must be loaded with at least 10% of rated capacity

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

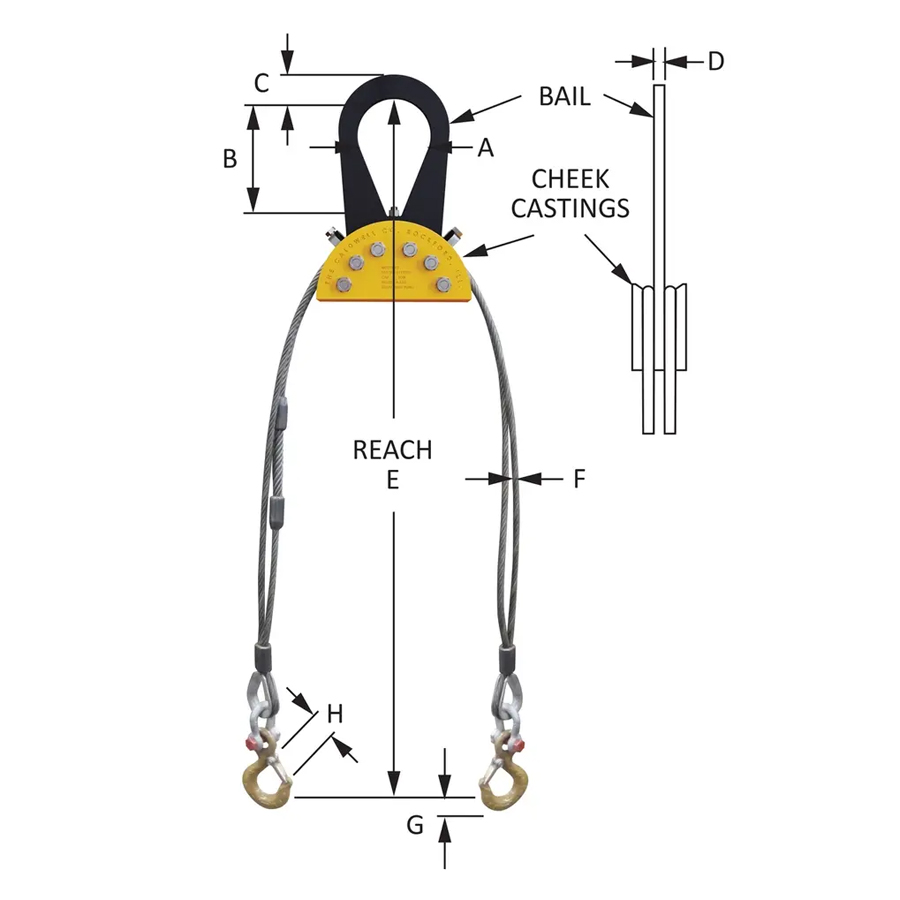

Model Number Capacity  (tons) Steel Hooks Sz (tons) Steel Hooks G (in.) Steel Hooks H (in.) Anchor Shackle Sz (in.) Wire Rope Dia (in.) Std Reach (ft.) Bail Depth (in.) Bail Open W (in.) Bail Open Ht (in.) Bail Thick (in.) Weight (lbs.) In Stock Price
52-1 1 1 1 0.75 0.38 0.31 3 1.13 3.13 5 0.62 7.5 ✔ $
52-2 2 1.5 1.0625 0.87375 0.5 0.3125 4 1.13 3.13 5 0.625 20 ❌ $
52-4 4 3 1.25 1.125 0.625 0.4375 6 1.13 3.13 5 0.625 32 ❌ $
52-8 8 7 1.875 1.875 0.875 0.625 9 1.75 5.25 8.38 0.875 90 ❌ $
52-6 6 5 1.5 1.375 0.75 0.5625 9 1.75 5.25 8.38 0.8 76 ❌ $
52-15 15 11 2.25 2.125 1.25 0.875 9 2.38 5.63 8.75 1.0625 175 ❌ $
52-12 12 11 2.25 2.125 1.125 0.75 9 2.38 5.63 8.75 1.0625 152 ❌ $
52-15L 15 11 2.25 2.125 1.25 0.875 9 2.5 9 15 1.0625 188 ❌ $
52-22 22 No Hooks Furnished No Hooks Furnished No Hooks Furnished 1.5 1.125 9 3.5 9 15 1.5 350 ❌ $
52-28 28 No Hooks Furnished No Hooks Furnished No Hooks Furnished 1.75 1.25 9 3.5 9 15 1.75 385 ❌ $
52-36 36 No Hooks Furnished No Hooks Furnished No Hooks Furnished 2 1.5 9 3.5 9 15 2 450 ❌ $
52-50 50 No Hooks Furnished No Hooks Furnished No Hooks Furnished 2 1.75 9 3.5 9 15 2.25 525 ❌ $
52-62 62 No Hooks Furnished No Hooks Furnished No Hooks Furnished 2.5 2 12 6.25 9 15 3 1200 ❌ $
52-75 75 No Hooks Furnished No Hooks Furnished No Hooks Furnished 3 2.25 15 6.25 9 15 4 1500 ❌ $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
