| TRAILER CLASSIFICATION | GROSS VEHICLE WEIGHT | CABLE SIZE | CABLE DESCRIPTION | HOOK SIZE |
|---|---|---|---|---|

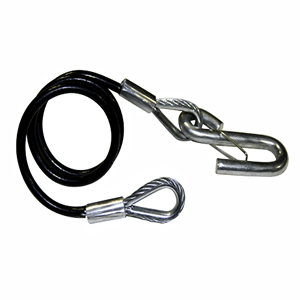

| 1 | 2,000 lbs. | 1/8″ – 3/16″ | 7X19 Vinyl Coated GAC | 3/8″ S-Hook |
| 2 | 3,500 lbs. | 3/16″ – 1/4″ | 7X19 Vinyl Coated GAC | 13/32″ S-Hook |
| 3 | 5,000 lbs. | 1/4″ – 5/16″ | 7X19 Vinyl Coated GAC | 7/16″ S-Hook |
| 4 | 7,600 lbs. | 5/16″ – 3/8″ | 7X19 Vinyl Coated GAC | 17/32″ S-Hook |

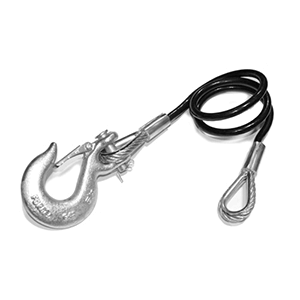

| 4 | 7,000 lbs. | 1/4″ – 5/16″ | 7X19 Vinyl Coated GAC with Latch | 1/4″ Clevis Slip Hook |
| 5 | 9,800 lbs. | 5/16″ – 3/8″ | 7X19 Vinyl Coated GAC with Latch | 5/16″ Clevis Slip Hook |
| 5 | 14,400 lbs. | 3/8″ – 7/16″ | 7X19 Vinyl Coated GAC with Latch | 3/8″ Clevis Slip Hook |
Note: Assemblies are equipped with any cable length or color requested. CSA tags available.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
