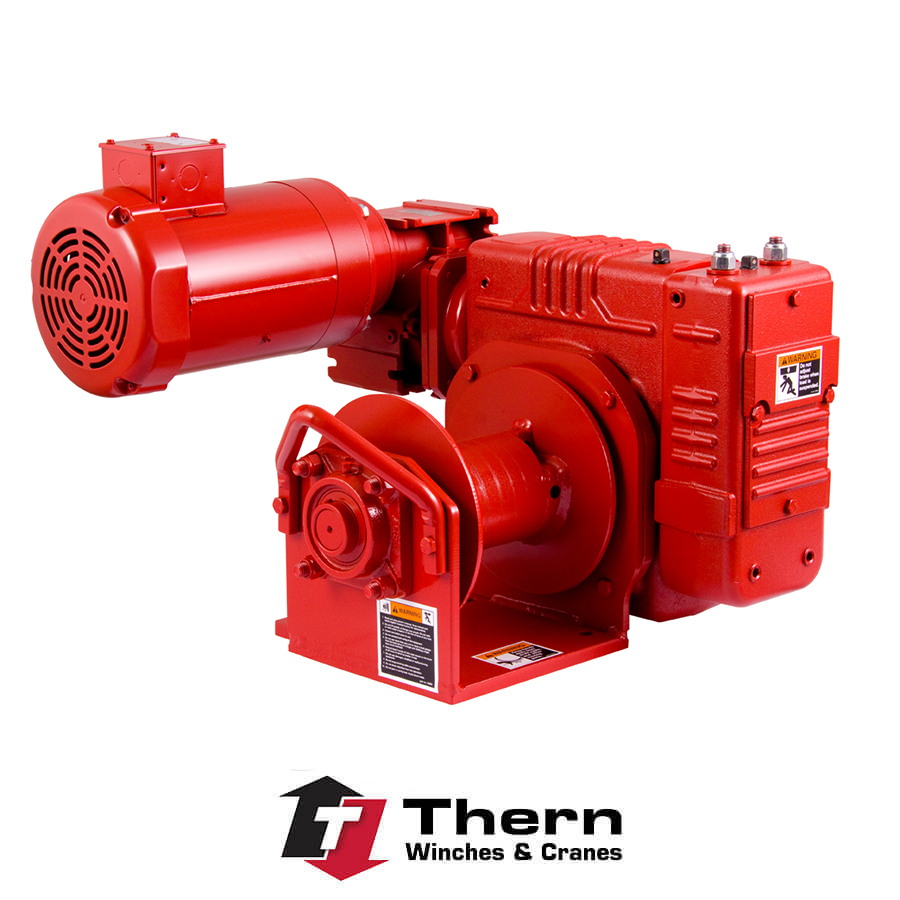

Atlas III 3WG4

Atlas III 3WG4

3WG4 Atlas II Portable Power Winch — Model 3WG4 Atlas II Portable Power Winch.

Up to 4,600 lb Capacity
When you need more power but can’t lose portability, the 3WG4 is your go-to winch. With double the load capacity of the 4WP2, you get the power you need with all the convenience of a smaller winch.

Quick Facts

  • Machine cut gears
  • Enclosed oil bath
  • Cast aluminum
  • Internal mechanical or motor brake
  • Ball bearings
  • Lifting handles
  • Dual function cable anchor
  • Mounting options
  • 2-Year Limited Warranty

Series Models

  • 3WG4
Series Imperial
Load Rating Power Supply Line Speed Drum Capacity
3WG4-B 4,000 lbs lst layer 115/1/60 VAC 9-16 fpm 140-200 ft
3WG4-B 4,600 lbs lst layer 230/3/60 13-24 fpm 140-200 ft
3WG4-M 4,000 lbs lst layer 115 /1I60 9-16 fpm 140-200 ft
3WG4-M 4,600 lbs lst layer 230/3/60 13-24 fpm 140-200 ft
3WG4T-M 4,600 lbs lst layer 230/3/60 13-28 fpm 220-300 ft



Series Metric
Load Rating Power Supply Line Speed Drum Capacity
3WG4-B 1,814 kg lst layer 115/1I60 2-4 mpm 42-60 m
3WG4-8 2,086 kg lst layer 230/ 3 /60 4-7 mpm 42-60 m
3WG4-M 1,814 kg lst layer 115 /1I60 2-4 mpm 42-60 m
3WG4-M 2,086 kg lst layer 230/3/60 4-7 mpm 42-60 m
3WG4T-M 2,086 kg lst layer 230/3/60 4-8 mpm 67-91 m

3WG4 Series Performance Characteristics

Model Brake
Style
Duty
Rating2
Motor
Codes
Motor Load Rating Line Speed Approx.
Ship. Wt.3
l st Layer Mid Drum Full Drum lst Layer Full Drum
(mins) (hp) (lb) (kg) (lb) (kg) (lb) (kg) (fpm) (mpm) (fpm) (mpm) (lb) (kg)
3WG4-83500-9S6 Internal 15 B,C,D,E l.5 3,500 1,587 2,500 1,134 1,900 861 9 2.7 16 4.9 186 85
3WG4-83500-13S6 Internal 15 B,C,D,E 2 3,500 1,587 2,500 1,134 1,900 861 13 4.0 24 7.3 191 87
3WG4-84000-9S6 Internal 15 A l.5 4,000 1,814 2,800 1,270 2,200 997 9 2.7 16 4.9 181 83
3WG4-84600-9S6 Internal 15 B,C,D,E 2 4,600 2,086 3,300 1,496 2,500 1,134 9 2.7 16 4.9 191 87
3WG4-84600-13S6 Internal 15 C,D,E 3 4,600 2,086 3,300 1,496 2,500 1,134 13 4.0 24 7.3 190 87
3WG4-M3500-9S6 Motor 60 D,E l.5 3,500 1,587 2,500 1,134 1,900 861 9 2.7 16 4.9 171 78
3WG4-M3500-13S6 Motor 60 B,D,E 2 3,500 1,587 2,500 1,134 1,900 861 13 4.0 24 7.3 182 83
3WG4-M4000-9S6 Motor 60 A l.5 4,000 1,814 2,800 1,270 2,200 997 9 2.7 16 4.9 181 83
3WG4-M4600-9S6 Motor 60 B,D,E 2 4,600 2,086 3,300 1,496 2,500 1,134 9 2.7 16 4.9 182 83
3WG4-M4600-13S6 Motor 60 D,E 3 4,600 2,086 3,300 1,496 2,500 1,134 13 4.0 24 7.3 181 83

Please contact Thern or nearest Thern Distributor for firm, fixed price and delivery.
2Duty rating represents maxim um operating time at full load. Rating includes lifting and lowering. Allow components to cool between cycles.
3Weight may vary w ith motor selection.



Motor Codes
A 115 volt l phase
B 230 volt l phase
C 208 volt 3 phase
D 230 volt 3 phase
E 460 volt 3 phase
F All other voltages,
please contact Thern.

NOTES:
For more information and other control options, please see pages 94-96. (the page number will need to be updated)
Custom controls are available including wireless remote control, variable speed control, electronic overload, and enclosures for special
en vi ran men ts.

3WG4 Series Drum Capacities4

Model Wire Rope
Diameter
Drum Layer
1st Layer Mid Drum Full Drum
(in) (mm) (ft) (m) (ft) (m) (ft) (m)
3WG4-B/M 5/16 1.9 18 5.4 91 27.7 200 60.9
3WG4-B/M 3/8 9.5 14 4.2 65 19.8 140 42.6

4Actual drum capacities may be 25-30% less due to nonuniform winding. Tension
in wire rope will also affect drum capacity.

Electric Motor
Motor available in a variety of configurations including 208, 230 and 260 volt and single and three phase. Includes power cord with grounded plug and a momentary contact-type push button pendant control on a control cord.

Modular Design
Easy product customization and quick lead times

Cast Aluminum Construction
Rugged work site durability in a lightweight package.

Machine Cut Worm Gears
Bronze gearing provides accurate, high efficiency operation and long lasting service.

Enclosed Oil Bath
Gears operate with continuous lubrication to minimize wear. Oil seals keep oil in and dirt out.

Automatic Brake
Internal mechanical brake provides positive load control for lifting and lowering operations.

Bronze and Radial Ball Bearings
Provide smooth and efficient operation.

Large Diameter Drums
Minimize wear to extend wire rope life.

Dual Function Cable Anchor
Drum is equipped with both a standard set screw slot and keyhole slot on drum for quick disconnect with 3/8 inch swaged ball ends.

Lifting Handles
Handles provide for convenient work site lifting and positioning.

Corrosion Resistant
Durable paint finish combined with trivalent zinc plating protects against corrosion in harsh environments.

Two-Year Warranty
Industry-leading two-year limited warranty on all our products.
