Associated Wire Rope Solid Sheaves

Associated Wire Rope Solid Sheaves

Ropeblock sheaves from solid materials made for relatively quick solutions. As we manufacture these sheaves in a simple yet highly efficient process, we can supply them relatively quick and in many different sizes. Solid steel wire rope sheaves, especially, offer plenty of room for customization in terms of sizes, materials and bearing systems.


EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

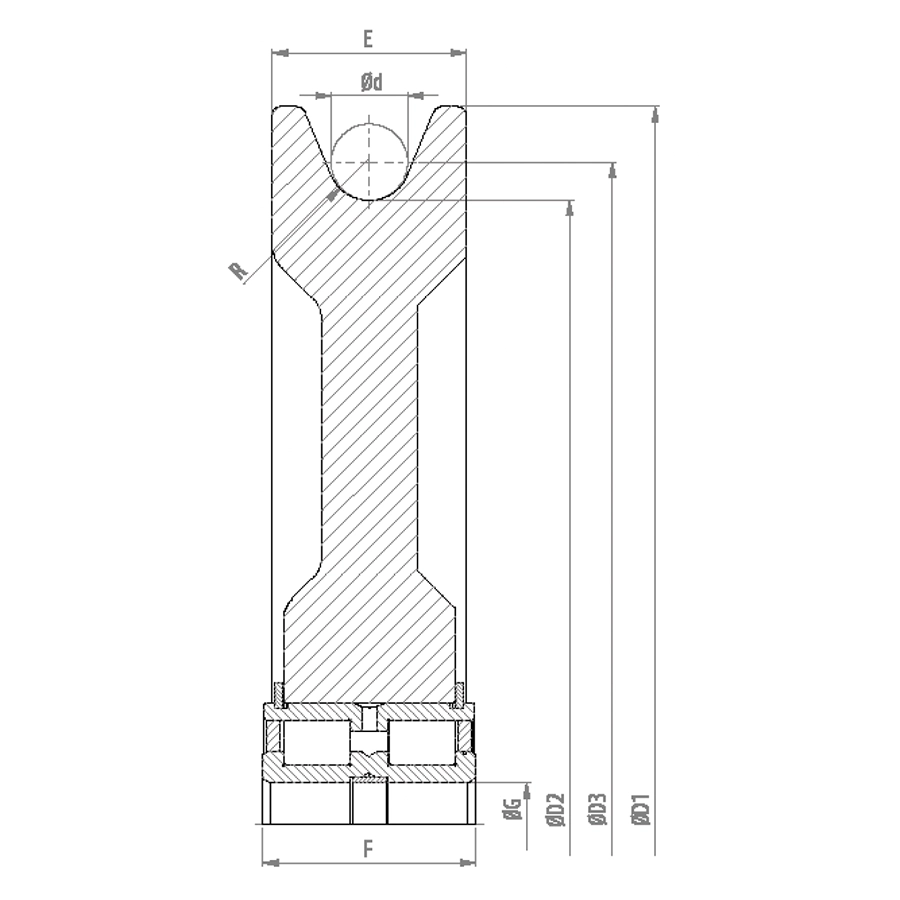

Model Nr. Dimensions (mm) Bearing Weight (kg)
Sheave Tread ø Shaft ø Wire ød Groove Radius Outside ø PCD Rim Width Bearing Width
øD2 øG d R øD1 øD3 E F
SE.200.5008.5,5.S 200 40 10 5,5 228 210 23,9 38 SL04 5008PP 3,5
SE.220.5008.6.S 220 40 11 6 251 231 26,3 38 SL04 5008PP 4,5
SE.240.5008.6,5.S 240 40 12 6,5 274 252 28,7 38 SL04 5008PP 5,5
SE.260.5008.7.S 260 40 13 7 296 273 30,6 38 SL04 5008PP 7
SE.280.5008.7,5.S 280 40 14 7,5 319 294 33,1 38 SL04 5008PP 8,5
SE.280.5010.7,5.S 280 50 14 7,5 319 294 33,1 40 SL04 5010PP 8,5
SE.300.5010.8.S 300 50 15 8 342 315 35,5 40 SL04 5010PP 10,5
SE.320.5010.8,5.S 320 50 16 8,5 365 336 40,6 40 SL04 5010PP 12,5
SE.320.5012.8,5.S 320 60 16 8,5 365 336 40,6 46 SL04 5012PP 13
SE.340.5012.9.S 340 60 17 9 388 357 43,2 46 SL04 5012PP 15
SE.360.5013.9,5.S 360 65 18 9,5 410 378 45,3 46 SL04 5013PP 18
SE.380.5013.10.S 380 65 19 10 433 399 47,8 46 SL04 5013PP 21
SE.380.5014.10.S 380 70 19 10 433 399 47,8 54 SL04 5014PP 21
SE.400.5013.11.S 400 65 20 11 456 420 51,1 46 SL04 5013PP 24,5
SE.400.5014.11.S 400 70 20 11 456 420 51,1 54 SL04 5014PP 25
SE.380.5022.11,5.S 380 110 21 11,5 460 401 60 80 SL04 5022 PP 50
SE.420.5013.11,5.S 420 65 21 11,5 479 441 52 46 SL04 5013PP 28
SE.420.5014.11,5.S 420 70 21 11,5 479 441 52 54 SL04 5014PP 29
SE.440.5016.12.S 440 80 22 12 502 462 56,2 60 SL04 5016PP 33
SE.460.5018.12,5.S 460 90 23 12,5 524 483 58,3 67 SL04 5018PP 38
SE.480.5018.13.S 480 90 24 13 547 504 60,9 67 SL04 5018PP 43
SE.500.5018.13,5.S 500 90 25 13,5 570 525 63,5 67 SL04 5018PP 48
SE.520.5022.14.S 520 110 26 14 593 546 66,1 80 SL04 5022PP 55
SE.572.5022.14.S 572 110 26 14 645 598 66,1 80 SL04 5022PP 70
SE.572.5024.14.S 572 120 26 14 645 598 66,1 80 SL04 5024PP 70
SE.540.5024.14,5.S 540 120 27 14,5 616 567 68,7 80 SL04 5024PP 62
SE.560.5024.15.S 560 120 28 15 638 588 70,8 80 SL04 5024PP 68
SE.580.5024.15,5.S 580 120 29 15,5 661 609 73,4 80 SL04 5024PP 75
SE.600.5026.16.S 600 130 30 16 684 630 76 95 SL04 5026PP 85
SE.660.5026.16.S 660 130 30 16 744 690 76 95 SL04 5026PP 108
SE.651.5026.16,5.S 651 130 31 16,5 738 682 78,6 95 SL04 5026PP 105
SE.672.5024.17.S 672 120 32 17 762 704 75 80 SL04 5024PP 114
SE.672.5026.17.S 672 130 32 17 762 704 81,1 95 SL04 5026PP 116
SE.672.5028.17.S 672 140 32 17 762 704 73,1 95 SL04 5028PP 116
SE.714.5024.18,5.S 714 120 35 18,5 809 749 78 80 SL04 5024PP 136
SE.714.5026.18,5.S 714 130 35 18,5 809 749 78 95 SL04 5026PP 138
SE.756.5026.19,5.S 756 130 37 19,5 857 793 82,6 95 SL04 5026PP 163
SE.792.5026.19,5.S 792 130 37 19,5 893 829 82,6 95 SL04 5026PP 183
SE.836.5026.20,5.S 836 130 39 20,5 942 875 86,8 95 SL04 5026PP 214
SE.836.5028.20,5.S 836 140 39 20,5 942 875 86,8 95 SL04 5028PP 214
SE.840.5030.21.S 840 150 41 21 952 881 91,5 100 SL04 5030PP 221
SE.880.5030.21.S 880 150 41 21 992 921 91,5 100 SL04 5030PP 250
  • The dimensions in this table are indicative only. A drawing will always be submitted prior to production and will be the leading document when discussing dimensions.
  • Sheaves shown here are standard models; inquiries for custom versions are welcome.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
