Associated Wire Rope Plastic Sheaves

Associated Wire Rope Plastic Sheaves
  • With Cylindrical Roller Bearings

Made fully out of Polyamid, plastic wire rope sheaves are the most lightweight sheaves in the Ropeblock portfolio. They come in many sizes, up to approx. 1,000 mm (for larger diameters a hybrid solution can be considered). Plastic sheaves are cost efficient and usually available from stock.
PLEASE NOTE THAT PLASTIC SHEAVES ARE NOT SUITABLE FOR ALL CONDITIONS.
WE WILL BE HAPPY TO ADVISE.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

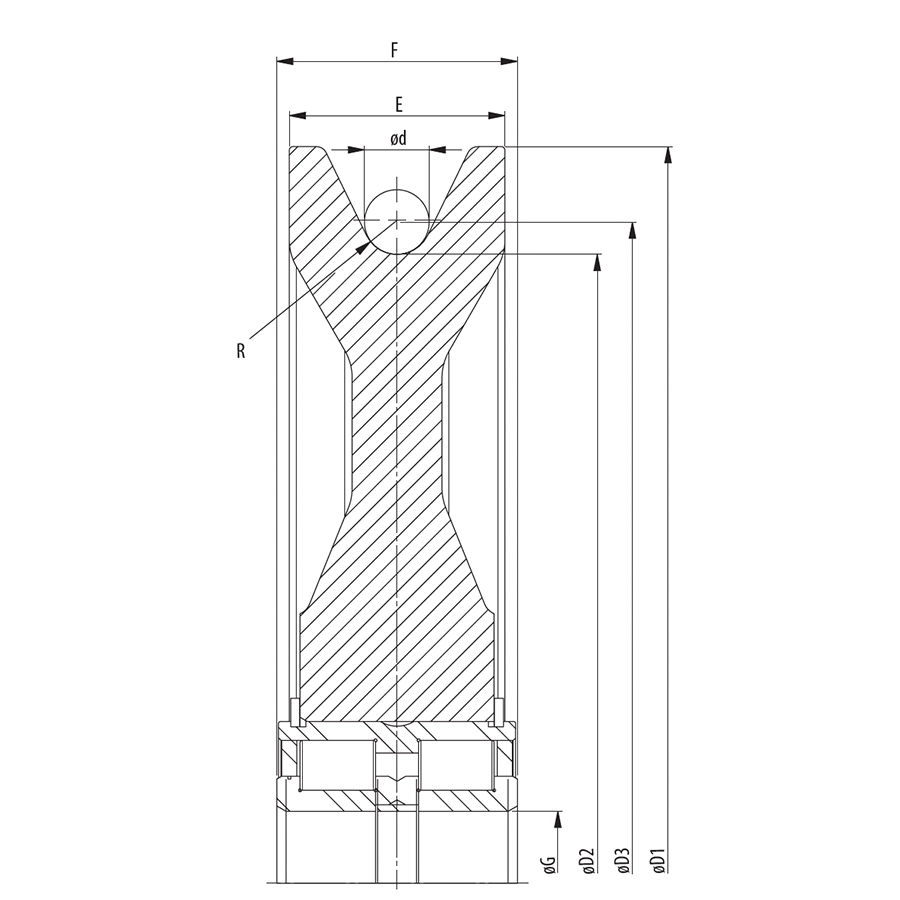

Plastic Sheaves Dim

Model Nr. Dimensions (mm) Bearing Weight (kg)
Sheave Tread ø Shaft ø Wire ød Groove Radius Outside ø PCD Rim Width Bearing Width
øD2 øG d R øD1 øD3 E F
SE.260.5010.7.K 260 50 13 7 300 272 34 40 SL04 5010PP 2,9
SE.285.5012.7.K 285 60 13 7 325 297 34 46 SL04 5012PP 3,9
SE.350.5014.14.K 350 70 26 14 416 376 52 54 SL04 5014PP 5,9
SE.352.5013.9,5.K 352 65 17 9,5 400 369 42 46 SL04 5013PP 5,5
SE.352.5013.8,5.K 352 65 16 8,5 400 368 42 46 SL04 5013PP 5,6
SE.352.5016.8,5.K 352 80 16 8,5 400 368 50 60 SL04 5016PP 7,6
SE.400.5018.10,5.K 400 90 19 10,5 460 419 60 67 SL04 5018PP 9,8
SE.400.5018.10.K 400 90 18 10 460 418 60 67 SL04 5018PP 10,8
SE.400.5024.10.K 400 120 18 10 460 418 72 80 SL04 5024PP 14
SE.400.160.10.K 400 160 18 10 460 418 72 80 SL04 160PP 13,5
SE.482.5018.12.K 482 90 22 12 558 504 62 67 SL04 5018PP 13
SE.482.5018.11,5.K 482 90 21 11,5 560 503 62 67 SL04 5018PP 14
SE.482.5024.11,5.K 482 120 21 11,5 560 503 72 80 SL04 5024PP 17,5
SE.482.160.11,5.K 482 160 21 11,5 560 503 72 80 SL04 160PP 17,2
SE.528.5018.14.K 528 90 26 14 596 554 62 67 SL04 5018PP 14,9
SE.528.5018.12.K 528 90 22 12 596 550 60 67 SL04 5018PP 15
SE.528.5018.13.K 528 90 24 13 596 552 62 67 SL04 5018PP 15
SE.528.5018.8,5.K 528 90 16 8,5 596 544 62 67 SL04 5018PP 15,3
SE.528.5024.13.K 528 120 24 13 596 552 72 80 SL04 5024PP 20,9
SE.528.160.13.K 528 120 24 13 596 552 72 80 SL04 160PP 22,1
SE.630.160.15,5.K 630 160 28 15,5 710 658 75 80 SL04 160PP 28
SE.662.5026.15,5.K 662 130 28 15,5 742 690 80 95 SL04 5026PP 35
SE.772.5026.15,5.K 772 130 28 15,5 852 800 80 95 SL04 5026PP 46
  • The dimensions in this table are indicative only. A drawing will always be submitted prior to production and will be the leading document when discussing dimensions.
  • Sheaves shown here are standard models; inquiries for custom versions are welcome.
