Although the material properties of forged sheaves can be very similar to those of other materials, this type of sheave can be a very adequate choice for specific applications.
| Model Nr. | Dimensions (mm) | Bearing | Weight (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|

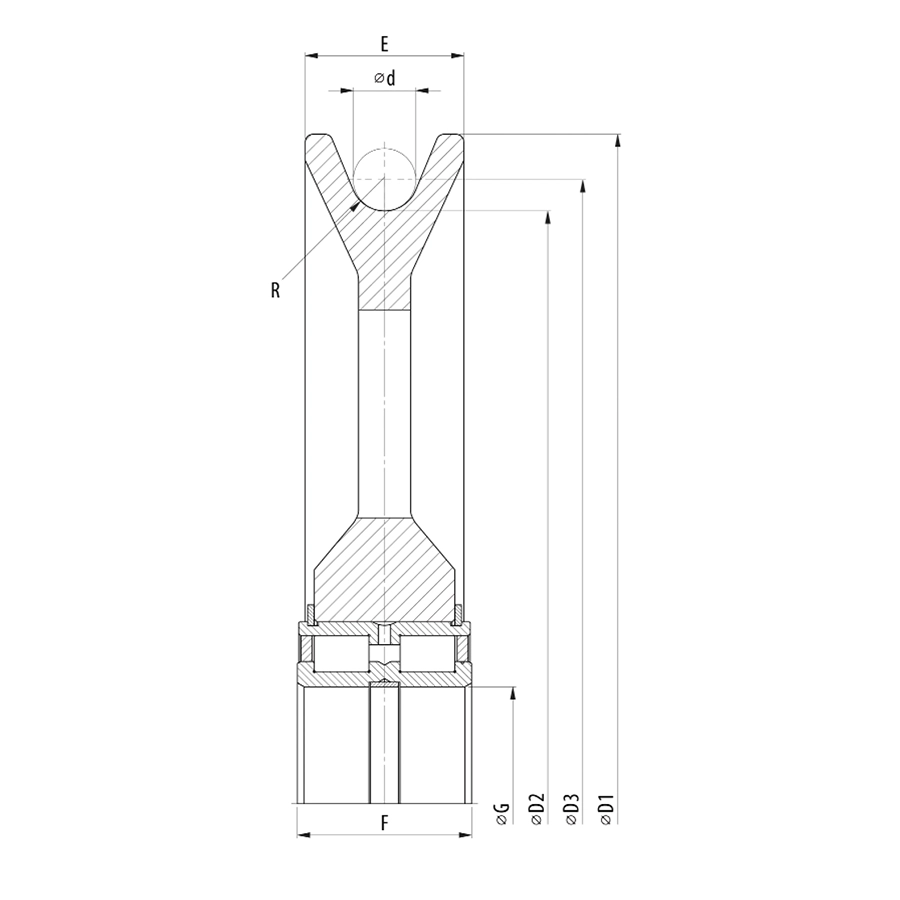

| Sheave Tread ø | Shaft ø | Wire ød | Groove Radius | Outside ø | PCD | Rim Width | Bearing Width | |||
| øD2 | øG | d | R | øD1 | øD3 | E | F | |||
| SE.320.5010.8,5.F | 320 | 50 | 16 | 8,5 | 365 | 336 | 40,6 | 40 | SL04 5010PP | 13 |
| SE.320.5012.8,5.F | 320 | 60 | 16 | 8,5 | 365 | 336 | 40,6 | 46 | SL04 5012PP | 13,2 |
| SE.340.5012.9.F | 340 | 60 | 17 | 9 | 388 | 357 | 43,2 | 46 | SL04 5012PP | 15,1 |
| SE.360.5013.9,5.F | 360 | 65 | 18 | 9,5 | 410 | 378 | 45,3 | 46 | SL04 5013PP | 21,7 |
| SE.380.5013.10.F | 380 | 65 | 19 | 10 | 433 | 399 | 47,8 | 46 | SL04 5013PP | 21,7 |
| SE.380.5014.10.F | 380 | 70 | 19 | 10 | 433 | 399 | 47,8 | 54 | SL04 5014PP | 25 |
| SE.400.5013.11.F | 400 | 65 | 20 | 11 | 456 | 420 | 51,1 | 46 | SL04 5013PP | 25 |
| SE.400.5014.11.F | 400 | 70 | 20 | 11 | 456 | 420 | 51,1 | 54 | SL04 5014PP | 28 |
| SE.420.5013.11,5.F | 420 | 65 | 21 | 11,5 | 479 | 441 | 52 | 46 | SL04 5013PP | 28 |
| SE.420.5014.11,5.F | 420 | 70 | 21 | 11,5 | 479 | 441 | 52 | 54 | SL04 5014PP | 29 |
| SE.440.5016.12.F | 440 | 80 | 22 | 12 | 502 | 462 | 56,2 | 60 | SL04 5016PP | 34 |
| SE.460.5018.12,5.F | 460 | 90 | 23 | 12,5 | 524 | 483 | 58,3 | 67 | SL04 5018PP | 40 |
| SE.480.5018.13.F | 480 | 90 | 24 | 13 | 547 | 504 | 60,9 | 67 | SL04 5018PP | 44 |
| SE.500.5018.13,5.F | 500 | 90 | 25 | 13,5 | 570 | 525 | 63,5 | 67 | SL04 5018PP | 50 |
| SE.520.5022.14.F | 520 | 110 | 26 | 14 | 593 | 546 | 66,1 | 80 | SL04 5022PP | 55 |
| SE.572.5022.14.F | 572 | 110 | 26 | 14 | 645 | 598 | 66,1 | 80 | SL04 5022PP | 69 |
| SE.572.5024.14.F | 572 | 120 | 26 | 14 | 645 | 598 | 66,1 | 80 | SL04 5024PP | 69 |
| SE.540.5024.14,5.F | 540 | 120 | 27 | 14,5 | 616 | 567 | 68,7 | 80 | SL04 5024PP | 63 |
| SE.560.5024.15.F | 560 | 120 | 28 | 15 | 638 | 588 | 70,8 | 80 | SL04 5024PP | 68 |
| SE.580.5024.15,5.F | 580 | 120 | 29 | 15,5 | 661 | 609 | 73,4 | 80 | SL04 5024PP | 75 |
| SE.600.5026.16.F | 600 | 130 | 30 | 16 | 684 | 630 | 76 | 95 | SL04 5026PP | 84 |
| SE.660.5026.16.F | 660 | 130 | 30 | 16 | 744 | 690 | 76 | 95 | SL04 5026PP | 106 |
| SE.651.5026.16,5.F | 651 | 130 | 31 | 16,5 | 738 | 682 | 78,6 | 95 | SL04 5026PP | 106 |
| SE.672.5024.17.F | 672 | 120 | 32 | 17 | 762 | 704 | 75 | 80 | SL04 5024PP | 115 |
| SE.672.5026.17.F | 672 | 130 | 32 | 17 | 762 | 704 | 81,1 | 95 | SL04 5026PP | 117 |
| SE.672.5028.17.F | 672 | 140 | 32 | 17 | 762 | 704 | 73,1 | 95 | SL04 5028PP | 116 |
| SE.714.5024.18,5.F | 714 | 120 | 35 | 18,5 | 809 | 749 | 78 | 80 | SL04 5024PP | 140 |
| SE.714.5026.18,5.F | 714 | 130 | 35 | 18,5 | 809 | 749 | 78 | 95 | SL04 5026PP | 142 |
| SE.756.5026.19,5.F | 756 | 130 | 37 | 19,5 | 857 | 793 | 82,6 | 95 | SL04 5026PP | 165 |
| SE.792.5026.19,5.F | 792 | 130 | 37 | 19,5 | 893 | 829 | 82,6 | 95 | SL04 5026PP | 180 |
| SE.900.160.19.F | 900 | 160 | 36 | 19 | 1010 | 936 | 100 | 80 | 22232 (2x) | 383 |
| SE.836.5026.20,5.F | 836 | 130 | 39 | 20,5 | 942 | 875 | 86,8 | 95 | SL04 5026PP | 215 |
| SE.836.5028.20,5.F | 836 | 140 | 39 | 20,5 | 942 | 875 | 86,8 | 95 | SL04 5028PP | 215 |
| SE.840.5030.21,5.F | 840 | 150 | 41 | 21,5 | 952 | 881 | 91,5 | 100 | SL04 5030PP | 222 |
| SE.880.5030.21,5.F | 880 | 150 | 41 | 21,5 | 992 | 921 | 91,5 | 100 | SL04 5030PP | 255 |
| SE.1300.5038.23,5.F | 1300 | 200 | 44 | 23,5 | 1430 | 1344 | 115 | 136 | 22240 (2x) | 1060 |
