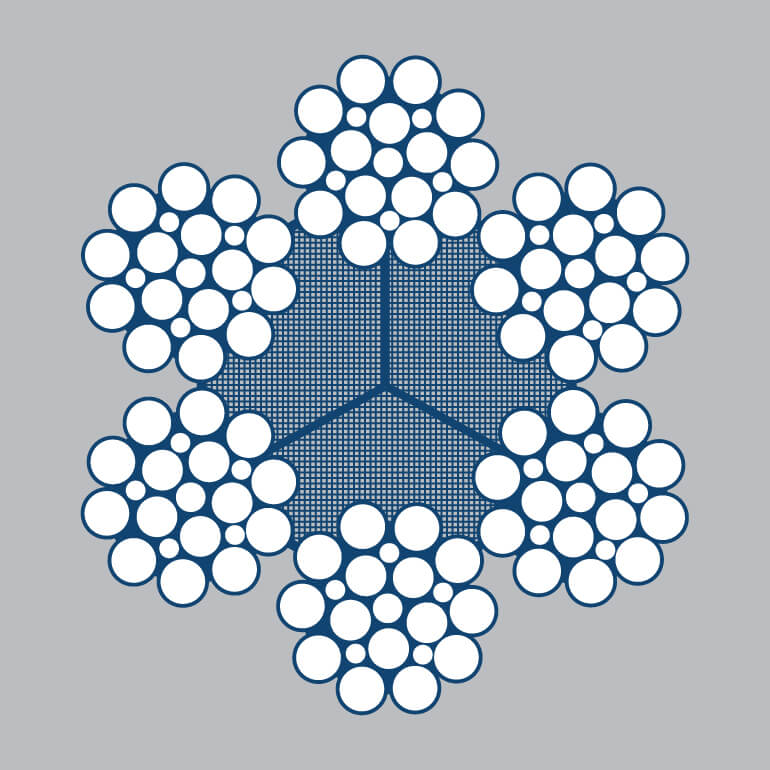

6×19 Rope Characteristics: Excellent abrasion resistance; less bending fatigue resistance
Typical Applications: Dragging and haulage in mines, inclined planes and tramways, sand lines. IWRC shown; fiber core available
Technical Resources:
6×19 Rope Characteristics: Excellent abrasion resistance; less bending fatigue resistance
Typical Applications: Dragging and haulage in mines, inclined planes and tramways, sand lines. IWRC shown; fiber core available
Technical Resources:
6 x 19 Classification Rope | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Diameter, in. | Nominal Strength,* Tons (Bright or Drawn Galvanized)† | Approximate Wt./Ft., lb. | ||||||||
EEIP | EIP | IWRC | Fiber Core | |||||||
CERTEX Cat. Ref. No. | IWRC | CERTEX Cat. Ref. No. | Fiber Core | CERTEX Cat. Ref. No. | IWRC | CERTEX Cat. Ref. No. | Fiber Core | |||
1/4 | — | — | CX01-0059 | 3.40 | CX01-0634 | 3.02 | 0.116 | 0.105 | ||
5/16 | — | — | CX01-0060 | 5.27 | CX01-0635 | 4.69 | 0.18 | 0.164 | ||
3/8 | — | — | CX01-0061 | 7.55 | CX01-0636 | 6.71 | 0.26 | 0.236 | ||
7/16 | CX01-0029 | 11.2 | CX01-0044 | 9.90 | CX01-0062 | 10.2 | CX01-0637 | 9.09 | 0.35 | 0.32 |
1/2 | CX01-0030 | 14.6 | CX01-0045 | 12.9 | CX01-0063 | 13.3 | CX01-0638 | 11.8 | 0.46 | 0.42 |
9/16 | CX01-0031 | 18.5 | CX01-0046 | 16.2 | CX01-0064 | 16.8 | CX01-0639 | 14.9 | 0.59 | 0.53 |
5/8 | CX01-0032 | 22.7 | CX01-0047 | 20.0 | CX01-0065 | 20.6 | CX01-0640 | 18.3 | 0.72 | 0.66 |
3/4 | CX01-0033 | 32.4 | CX01-0048 | 28.6 | CX01-0066 | 29.4 | CX01-0641 | 26.2 | 1.04 | 0.95 |
7/8 | CX01-0034 | 43.8 | CX01-0049 | 39.0 | CX01-0067 | 39.8 | CX01-0642 | 35.4 | 1.42 | 1.29 |
1 | CX01-0035 | 56.9 | CX01-0050 | 50.6 | CX01-0068 | 51.7 | CX01-0643 | 46.0 | 1.85 | 1.68 |
1 1/8 | CX01-0036 | 71.5 | CX01-0051 | 63.6 | CX01-0069 | 65.0 | CX01-0644 | 57.9 | 2.34 | 2.13 |
1 1/4 | CX01-0037 | 87.9 | CX01-0052 | 78.2 | CX01-0070 | 79.9 | CX01-0645 | 71.0 | 2.89 | 2.63 |
1 3/8 | CX01-0038 | 106.0 | CX01-0053 | 94.0 | CX01-0071 | 96.0 | CX01-0646 | 85.4 | 3.50 | 3.18 |
1 1/2 | CX01-0039 | 125.0 | CX01-0054 | 111.0 | CX01-0072 | 114.0 | CX01-0647 | 101.0 | 4.16 | 3.78 |
1 5/8 | CX01-0040 | 146.0 | CX01-0055 | 129.0 | CX01-0073 | 132.0 | CX01-0648 | 118.0 | 4.88 | 4.44 |
1 3/4 | CX01-0041 | 169.0 | CX01-0056 | 150.0 | CX01-0074 | 153.0 | CX01-0649 | 136.0 | 5.67 | 5.15 |
1 7/8 | CX01-0042 | 192.0 | CX01-0057 | 171.0 | CX01-0075 | 174.0 | CX01-0650 | 155.0 | 6.50 | 5.91 |
2 | CX01-0043 | 217.0 | CX01-0058 | 194.0 | CX01-0076 | 198.0 | CX01-0651 | 176.0 | 7.39 | 6.72 |
2 1/8 | — | — | CX01-0628 | 221.0 | CX01-0652 | 197.0 | 8.35 | 7.59 | ||
2 1/4 | — | — | CX01-0629 | 247.0 | CX01-0653 | 220.0 | 9.36 | 8.51 | ||
2 3/8 | — | — | CX01-0630 | 274.0 | CX01-0654 | 244.0 | 10.4 | 9.48 | ||
2 1/2 | — | — | CX01-0631 | 302.0 | CX01-0655 | 269.0 | 11.6 | 10.5 | ||
2 5/8 | — | — | CX01-0632 | 331.0 | — | 12.8 | 11.6 | |||
2 3/4 | — | — | CX01-0633 | 361.0 | — | 14.0 | 12.7 |
*Acceptance strength is not less than 2 1/2% below the nominal strengths listed.
†Galvanizing: For class A galvanized wire rope (EIP and IPS grades only), deduct 10% from the nominal strength shown
6 x 19 Classification ropes provide an excellent balance between fatigue and wear resistance. They give excellent service with sheaves and drums of moderate size. 6 x 19 Classification ropes contain 6 strands with 15 through 26 wires per strand, no more than 12 of which are outside wires.
