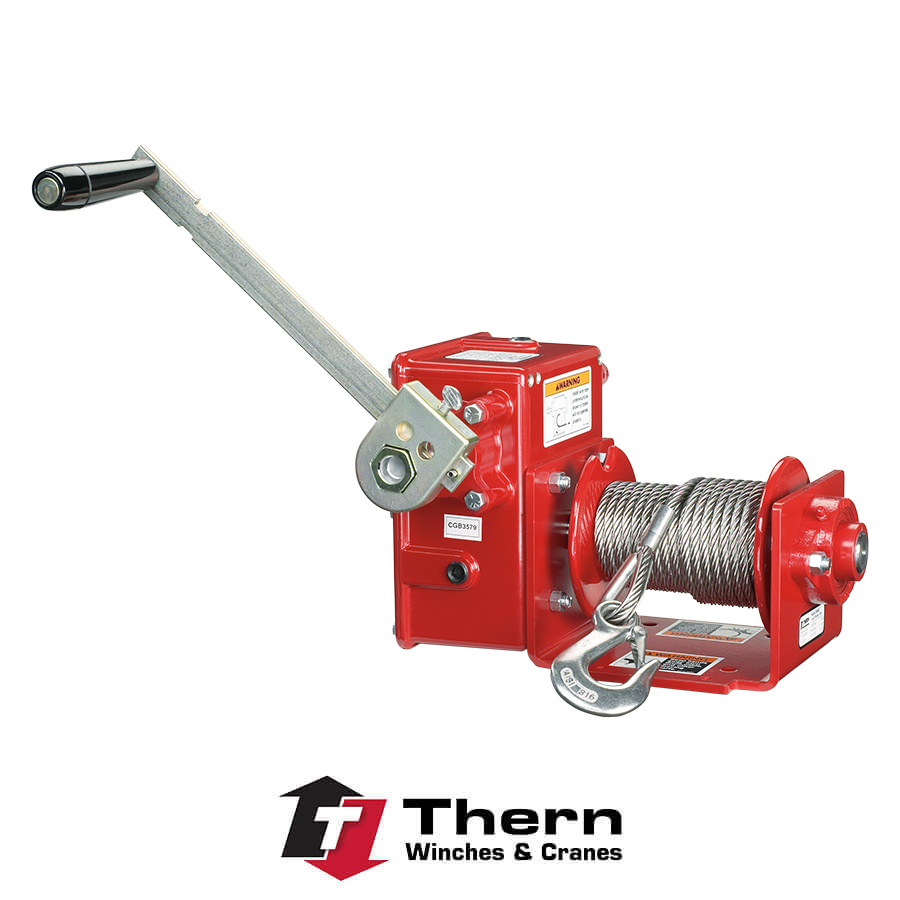

Worm Gear Series — Model 465 & 4WM2.
Up to 2,000 lb Capacity
When you need to lift, lower or position a heavy load, Thern’s worm gear hand winches are designed to deliver excellent performance and long life, no matter what your application
Quick Facts
Series Models
| Series | Imperial | |||
| Load Rating | Brake | Drum Capacity | Force to Lift 1,000 lbs | |
| 4622PB | 1,000 lbs | Yes | 140 ft | 26 lbs |
| 4WM2 | 2,000 lbs | Yes | 77 ft | 14 1bs |
| 2W40-BM | 4,600 lbs | Yes | 200 ft | 11 lbs |
| Series | Imperial | |||
| Load Rating | Brake | Drum Capacity | Force to Lift 1,000 lbs | |
| 4622PB | 450 kg | Yes | 42 m | 12 kg |
| 4WM2 | 905 kg | Yes | 23 m | 7 kg |
| 2W40-BM | 2,085 kg | Yes | 60 m | 5 kg |
Worm Gear Hand Winches-Configurations and Performance Characteristics
| Model | Description | LOAD RATING | Wire Rope Dia.1 | DRUM CAPACITY 2 | Gear Ratio |
Force3 to lift 1,000 lb |
Approx. Ship Weight |
|||||||||||||
| 1st Layer | Mid Drum | Full Drum | 1st Layer | Mid Drum | Full Drum | |||||||||||||||
| (lb) | (kg) | (lb) | (kg) | (lb) | (kg) | (in) | (mm) | (ft) | (m) | (ft) | (m) | (ft) | (m) | (lb) | (kg) | (lb) | (kg) | |||
| 465 | 750 lb-open gears (recommended for pulling only) |
750 | 340 | 600 | 272 | 400 | 181 | 1/8 | 3.2 | 7 | 2 | 58 | 17 | 130 | 39 | 20:1 | 21 | 9.5 | 12 | 5 |
| 3/16 | 4.8 | 4 | 1 | 27 | 8 | 59 | 17 | |||||||||||||
| 462 | 1,000 lb-enclosed gearing (recommended for pulling only) |
1,000 | 453 | 700 | 317 | 500 | 226 | 1/8 | 3.2 | 7 | 2 | 61 | 18 | 140 | 42 | 15:1 | 34 | 15.4 | 15 | 7 |
| 3/16 | 4.8 | 4 | 1 | 28 | 8 | 61 | 18 | |||||||||||||
| 4622PB | 1,000 lb-enclosed gearing with brake (for lifting) |
1,000 | 453 | 700 | 317 | 500 | 226 | 1/8 | 3.2 | 7 | 2 | 61 | 18 | 140 | 42 | 15:1 | 26 | 11.8 | 21 | 10 |
| 3/16 | 4.8 | 4 | 1 | 28 | 8 | 61 | 18 | |||||||||||||
| 472 | 2,000 lb-enclosed gearing (recommended for pulling only) |
2,000 | 907 | 1,700 | 771 | 1,300 | 589 | 3/16 | 4.8 | 15 | 4 | 65 | 19 | 140 | 42 | 24:1 | 24 | 10.9 | 32 | 15 |
| 1/4 | 6.4 | 11 | 3 | 35 | 10 | 77 | 23 | |||||||||||||
| 5/16 | 7.9 | 8 | 0 | 23 | 7 | 52 | 15 | |||||||||||||
| 4WM2 | 2,000 lb-enclosed gearing with brake (for lifting) Drill Driveable* |
2,000 | 907 | 1,500 | 680 | 1,200 | 544 | 1/4 | 6.4 | 11 | 3 | 35 | 10 | 77 | 23 | 32:1 | 14 | 6.4 | 41 | 19 |
| 3/16 | (not recommended for this winch) | |||||||||||||||||||
| 2W40-L | 4,000 lb-enclosed gearing (recommended for pulling only) |
4,000 | 1,814 | 2,800 | 1,270 | 2,200 | 997 | 5/16 | 7.9 | 18 | 5 | 91 | 27 | 200 | 60 | 26:1 | 18 | 8.2 | 126 | 58 |
| 3/8 | 9.5 | 14 | 4 | 65 | 19 | 140 | 42 | |||||||||||||
| 2W40-BL | 4,000 lb-enclosed gearing with brake (for lifting) |
4,000 | 1,814 | 2,800 | 1,270 | 2,200 | 997 | 5/16 | 7.9 | 18 | 5 | 91 | 27 | 200 | 60 | 145 | 66 | |||
| 3/8 | 9.5 | 14 | 4 | 65 | 19 | 140 | 42 | |||||||||||||
| 2W40-M | 4,600 lb-enclosed gearing (recommended for pulling only) Drill Driveable* |
4,600 | 2,086 | 3,300 | 1,496 | 2,500 | ,133 | 5/16 | 7.9 | 18 | 5 | 91 | 27 | 200 | 60 | 31:1 | 11 | 5.0 | 123 | 56 |
| 3/8 | 9.5 | 14 | 4 | 65 | 19 | 140 | 42 | |||||||||||||
| 2W40-BM | 4,600 lb-enclosed gearing with brake (for lifting) Drill Driveable* |
4,600 | 2,086 | 3,300 | 1,496 | 2,500 | ,133 | 5/16 | 7.9 | 18 | 5 | 91 | 27 | 200 | 60 | 141 | 64 | |||
| 3/8 | 9.5 | 14 | 4 | 65 | 19 | 140 | 42 | |||||||||||||
Please contact Thern or nearest Thern Distributor for firm fixed price and delivery.
1Actual drum capacities may be 25-30% less due to nonu niform w inding. Wire rope tension w ill also affect drum capacity.
2Approximate handle force required to lift 1,000 lb with an empty drum and maximum handle length.
Drill Drive Performance Characteristics
| Winch Model | Wire Rope Diameter | Load (lbs) |
Distance (ft) |
Lift Time (minutes) |
|
| ED330-DW11 and ED300-DW06 |
4WM2 | 1/4″ | 500 | 135* | 15 |
| 1,000 | 75 | 10 | |||
| 1,500 | 45 | 7 | |||
| 2W40 | 5/16″ | 500 | 200 | 15 | |
| 1,000 | 100 | 9 | |||
| 1,800 | 50 | 5 | |||
| ED400-DW09 | 4WM2 | 1/4″ | 800 | 200* | 15 |
| 1,200 | 90 | 10 | |||
| 1,500 | 45 | 7 | |||
| 2W40 | 5/16″ | 1,000 | 200 | 12 | |
| 2,000 | 100 | 7 | |||
| 2,500 | 50 | 4 |
*Long lift model
Machine Cut Spur Gears
For accurate and long lasting service.
Enclosed Oil Bath
Provides continuous lubrication of gears to minimize wear (except on Model 465). On Model 4WM2, oil seals keep oil in and dirt out.
Hex Drive and Handle
Hex drive and handle are included. Model 4WM2 can be power driven with a maximum 300 rpm drill-motor.
Automatic Brake Models
Provide positive load control for lifting. Brake models have a PB or B suffix. Model 4WM2 features an internal mechanical brake.
Corrosion Resistant
Durable paint finish protects against corrosion in harsh environments.
Bronze Bearings
On most models for smooth operation.
Large Diameter Drums
Minimize wear to extend wire rope life.
Adjustable Handles
Handles adjust in length to change force required to move the load.
Mounting Options
Include floor, wall, or ceiling mounting. Adapter plate may be required. Contact factory.
Two-Year Warranty
Industry-leading two-year limited warranty on all our products.
