| STOCK NUMBER | DESCRIPTION | NUMBER IN BOX |
|---|---|---|

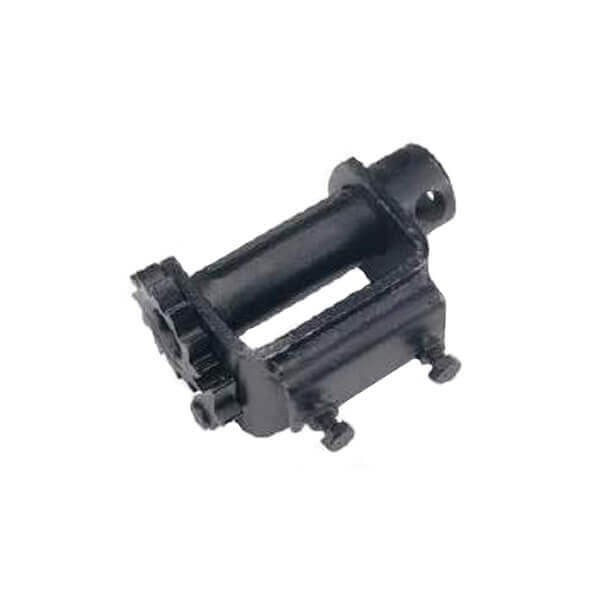

| 16PPL | 4” Low Profile Portable Combination Winch | 4 |
NOTE: FOR SAFE OPERATION
1. All winches should be installed so the user can readily see the pawl to ensure proper engagement.
2. The winch should be positioned so the pawl drops into the ratchet wheel by gravity.
3. Winches should never be installed so the user cannot see the pawl engagement or in a position where the user must hold the pawl to engage the ratchet tooth.
4. Weld on winches must be welded to the trailer frame. Minimum weld requirements are 1/4” fillet weld, 4” long on both sides of frame, and 1/8” penetration.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
