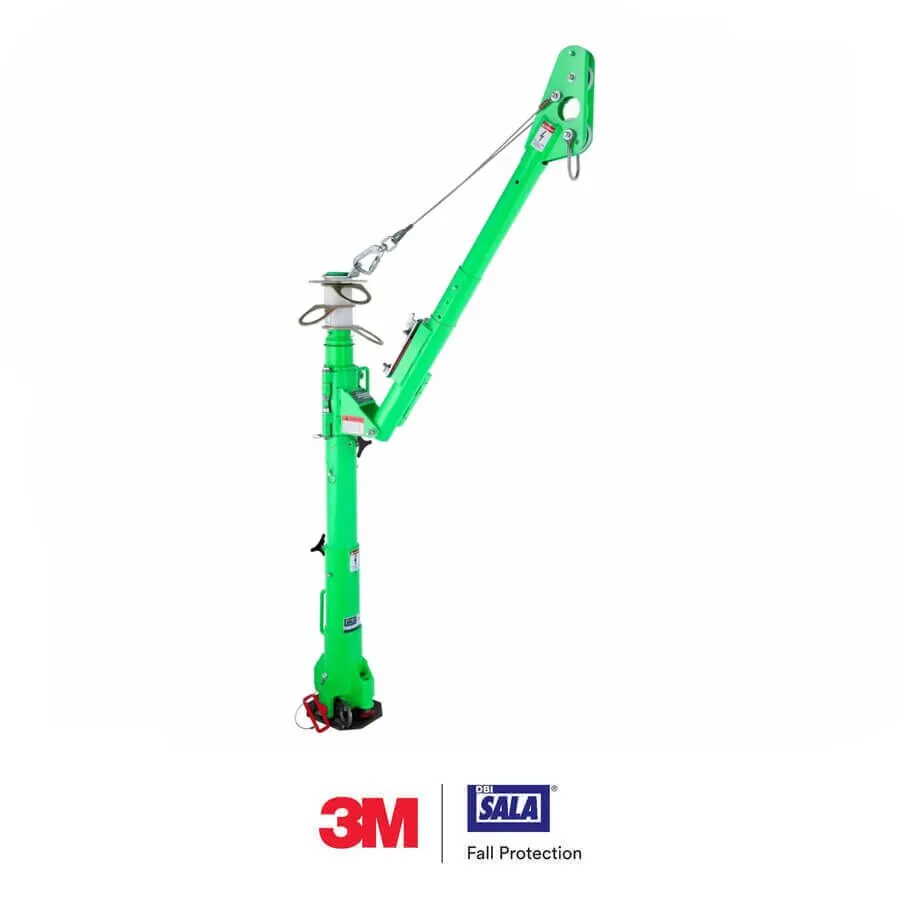

3M™ DBI-SALA® Confined Space Davit Arm, 1 EA – 8516693

3M™ DBI-SALA® Confined Space Davit Arm, 1 EA - 8516693
  • The 3-way SRL with emergency retrieval or winch attach easily to mounting bracket
  • Built-in secondary fall-arrest anchor point
  • Durable construction
  • Optional rescue davit for fall arrest post
  • Recommended for use in many industries
  • Appropriate for Fall Protection in electrical transformer applications
  • Includes cable stabiliser strap
  • Lightweight, corrosion resistant aluminum construction
  • Order 8516691 fall arrest post and winch/SRL separately

Brands

DBI-SALA®

Case Quantity

1

Connected Safety ID Equipped

No

For Use With

Portable Fall Arrest Post

Install Type

Portable

Net Weight (Imperial)

22.1 lb

Net Weight (Metric)

10 kg

Pole Adjustment Range

8-16 ft. (2.4-4.8m)

Product Color

Green

Product Series

Advanced™

Product Type

Davit Arm for Portable Fall Arrest Post

Recommended Industry

Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities

Weight (Imperial)

22.1 lb.

Weight Capacity

310 lbs. (140 kg)

Weight Capacity (Imperial)

450 lb.

Weight Capacity (Metric)

140 kg

eClass 14 Classification Group

13090401

Overall Height (Imperial)

31.24 in

Overall Height (Metric)

79.35 cm

The 3M™ DBI-SALA® Confined Space Davit Arm expands the function of the existing davit system anchor. Built with durable construction. This davit arm enhances the capabilities of the hoist system. The davit also comes with primary and secondary pulleys and stabilizer strap.

The Davit Arm option for the Portable Fall Arrest Post is a popular option and greatly expands the functions of your existing anchor. The davit arm’s unique clamping design allows it to attach to the post without the need to disconnect the worker. This rescue davit offers a maximum working height of 71” (180.3 cm) and a maximum offset of 34” (86.4 cm). The post also has 3 optional pinning points that would adjust the range of height and offset. It can be used for a wide variety of tasks such as confined space entry and work support from the top of a work platform. When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. DBI-SALA® has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust DBI-SALA® for the type of high quality, rugged systems that will ensure top performance when it is needed the most.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
