Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable.
They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.
|
Anchor Install Type |
Permanent |
|
Attachment Type |
Pass-through/Choker |
|
Brands |
DBI-SALA® |
|
Case Quantity |
1 |
|
Connected Safety ID Equipped |
No |
|
Install Type |
Disposable |
|
Material |
Polyester Web |
|
Product Color |
Blue |
|
Product Type |

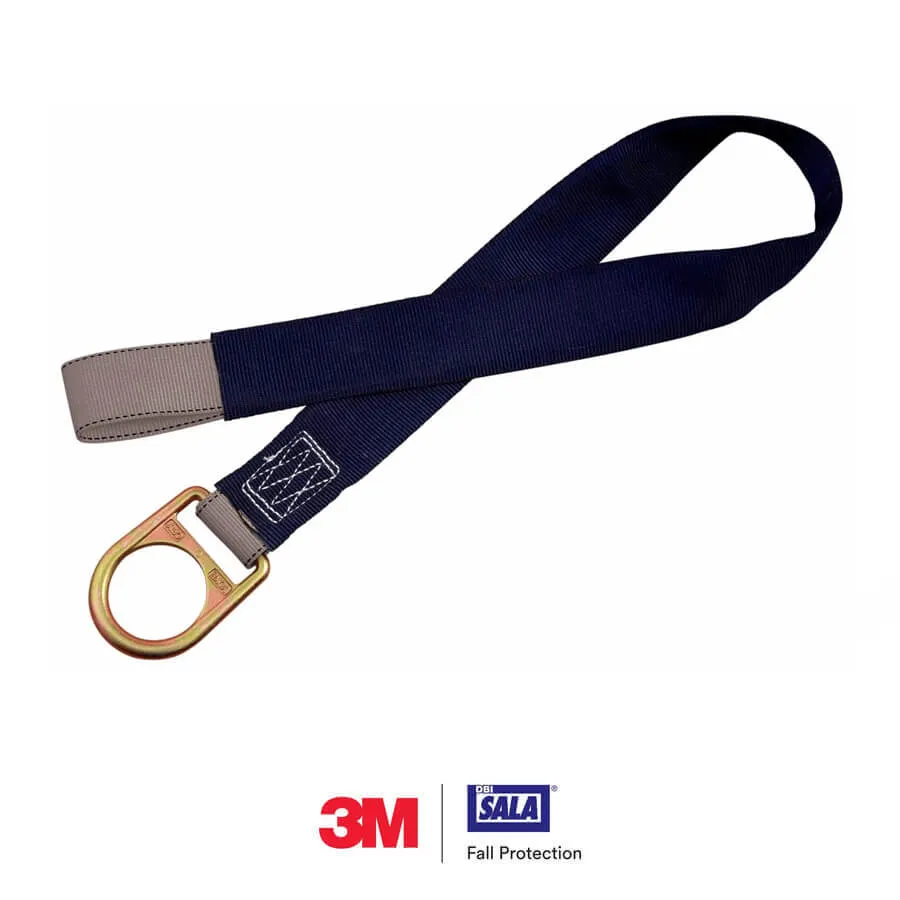

Concrete Anchor Strap |
|
Recommended Industry |
Construction, Mining |
|
Specifications Met |
OSHA 1910.140, OSHA 1926.502 |
|
Webbing Material |
Polyester |
|
Weight (Imperial) |
0.8 lb. |
|
Weight Capacity |
310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA |
|
Weight Capacity (Imperial) |
420 lb. |
|
Weight Capacity (Metric) |
190 kg |
|
Overall Length (Imperial) |
48 in |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
The dynafor® HHD is a complete and versatile handheld display.
Universal, the dynafor® HHD can be connected to our dynafor® Pro, dynafor® Expert and dynafor® Transmitter WL. Up to 4 units can be simultaneously connected.
Equipped with a colour-LED display, the dynaforTM HHD can reach a wireless range of 1,300 ft. (400 m). The dynaforTM HHD offers multiple functionalities, suitable to any application.
The dynarope® tension meter is a precision device for measuring forces in a tensioned cable or rope. The meter can be attached directly to the cable and has a fixed display.
When the tension meter is placed on a tensioned cable, the load cell will generate a signal which is more or less proportional to the force.
The HF 37 series can be connected to a PC for managing and storing measurement results.
There is a large variety of cables, each cable having its own characteristics such as composition, diameter, rigidity, density, etc. The database includes several basic wire rope data. We are happy to help you choose the right model and parameter settings in our wire rope database.
The dynarope® HF 36 is an electronic load cell that has been designed to measure the effort applied in a wire rope. The resulting signal is used in a digital remote display (model HF 87/T/LPT) controlled by a microprocessor, which corrects the force information according to the wire rope specification and displays the result of the measurement on a LCD display.
Several wire ropes specifications are logged in a data bank.
The dynasafe® HF 05 mechanical load cell has been designed to provide a trip point in lifting systems, which have a dead-end wire rope. The trip point load limiter generates an “all or nothing” type signal in the event the programmable target value is exceeded. Available in one or two thresholds versions.
The load cell is preferable for fitting applications where it is essential to minimize the lost headroom.
