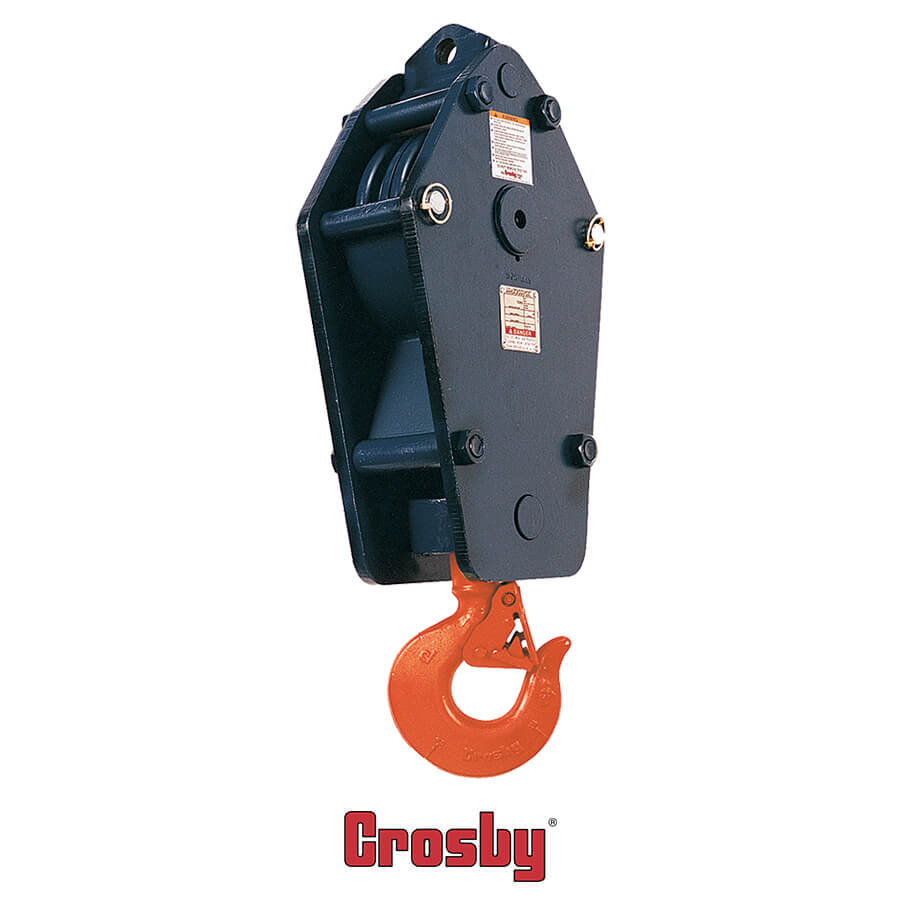

Crosby® 380 Series Easy Reeve® Hook Blocks

Crosby® 380 Series Easy Reeve® Hook Blocks
    • Wide range of product available.
      • Capacity: 5 to 80 Tons – Larger Models Available
      • Sheave Sizes: 10” to 20”.
      • Wireline Sizes: 7/16” to 1-1/4”
    • All single point shank hooks are genuine Crosby®, forged alloy steel, Quenched and Tempered, and have the patented QUICCHECK® markings (Duplex hooks are available on most sizes)
    • Design factor of 4 to 1 (unless otherwise noted).
    • All Easy Reeve® Blocks are furnished standard with Roller Bearings.
    • Reeving Guides Standard – All Models.
    • Blocks thru 25 Tons use 319N hooks with S-4320 latches.

EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

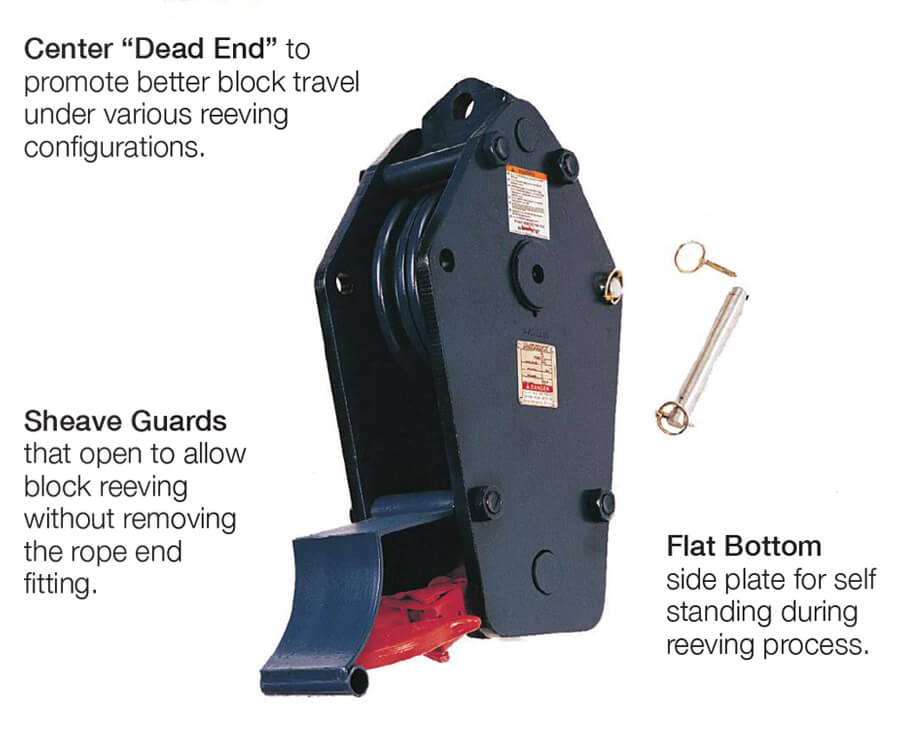

Forged Crosby® alloy steel hooks with patented QUIC-CHECK® markings and Heavy Duty positive locking hook latch.

  • Heavy Duty Positive Locking (PL) Latch – Models: 30 Tons and larger.
  • Sheave lubrication through center pin – separate lube channel to each bearing.
  • Sheaves fully protected by side plates.
  • Dual action hook (swings and rotates).
  • Repair parts available through worldwide distribution network.
  • All Easy Reeve® blocks 16” and larger are furnished with McKissick® Roll-Forged sheaves with flame hardened grooves.
  • Manufactured by an ISO 9001 and API Q1 certified facility.
  • “Look for the Orange Hook … the mark of genuine McKissick® quality”.

Options Available

  • Duplex Hooks
  • Swivel Tee and Shackle Assemblies
  • Sheave Shrouds
  • Anti-Rotation Hook-Locking Device
  • Plate Steel Cheek Weights
  • Third party testing with Certification available upon request.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
