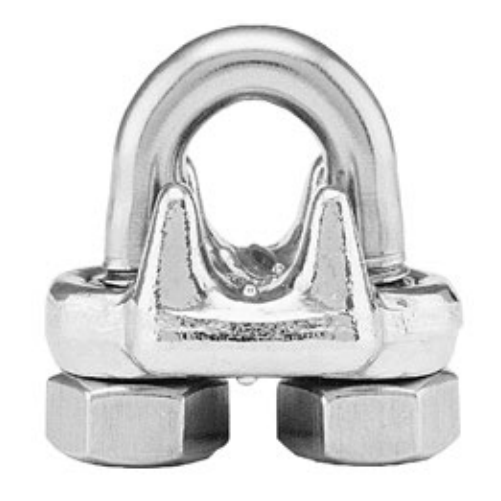

• Available in sizes 1/8˝ through 5/8˝.

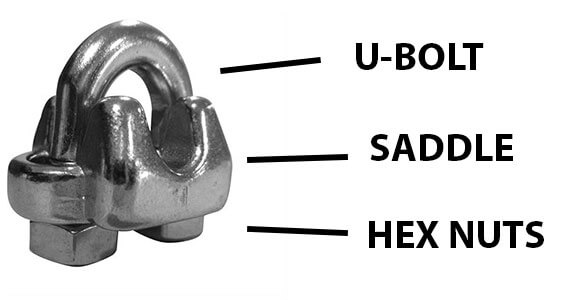

• Entire clip is made from 316 Stainless Steel to resist corrosive and rusting action.
• All components are Electro-Polished.

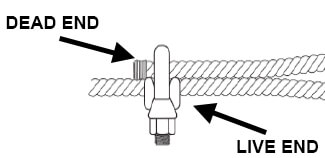

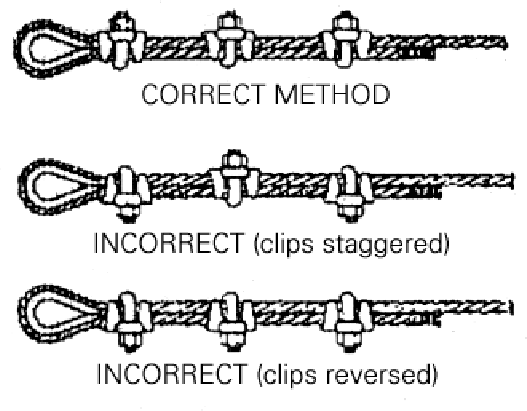

• All Clips are individually bagged or tagged with proper application instructions and warnings
| Rope Size (in.) | CERTEX Cat. Ref. No. | Dimensions (in.) | |||||||
| A | B | C | D | E | F | G | H | ||
| 1/8 | CX04-0025 | .22 | .72 | .44 | .47 | .41 | .38 | .81 | .94 |
| 3/16 | CX04-0026 | .25 | .97 | .56 | .59 | .50 | .44 | .94 | 1.16 |
| 1/4 | CX04-0027 | .31 | 1.03 | .50 | .75 | .66 | .56 | 1.19 | 1.44 |
| 3/8 | CX04-0028 | .44 | 1.50 | .75 | 1.00 | .91 | .75 | 1.63 | 1.94 |
| 1/2 | CX04-0029 | .50 | 1.88 | 1.00 | 1.19 | 1.13 | .88 | 1.91 | 2.28 |
| 5/8 | CX04-0030 | .56 | 2.38 | 1.25 | 1.31 | 1.34 | .94 | 2.06 | 2.50 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
