X100® Weld-on Lifting Points

X100® Weld-on Lifting Points
APPROVED FOR OVERHEAD LIFTING



  • Use weld-on pivoting link only with ferrous metal (steel)
  • Loads may disengage from link if proper welding, assembly, and lifting procedures are not used
  • Spring loaded pivoting link for easy rigging
  • Always inspect weld-on lifting point for damage in the weld or the pivoting link. Evidence of wear, cracks, elongation, etc., is grounds for removal from service
  • Each lifting point packed with instructions, warnings, and cautions
  • Ultimate load is 4 times the working load limit
  • Do not side load
  • Suitable for overhead lifting if welded by a certified welder*
  • * Welding is to be performed by a qualified welder using a qualified procedure in accordance with American Welding Society.

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

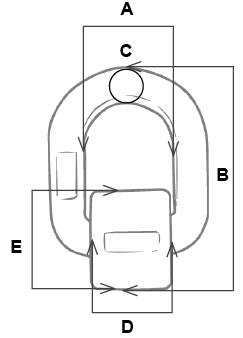

STOCK NUMBER SIZE DIMENSIONS Working load limit (LBS.) WEIGHT (LBS.)
A B C D E
XWLP1T 1 Ton 1.61” 3.09” 0.51” 1.46” 1.38” 2,000 0.9
XWLP2T 2 Ton 1.65” 3.46” 0.55” 1.57” 1.46” 4,000 1.05
XWLP3T 3 Ton 1.77” 3.70” 0.67” 1.67” 1.57” 6,000 1.55
XWLP5T 5 Ton 2.40” 4.65” 0.87” 2.17” 2.05” 10,000 2.6
XWLP8T 8 Ton 2.78” 5.55” 1.04” 2.75” 2.24” 16,000 4.0
XWLP15T 15 Ton 3.82” 7.40” 1.34” 3.54” 3.42” 30,000 12.5



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
