X100® Off-The-Shelf SGG Chain Slings

What’s in the box/bucket:

OSHA Compliant Chain Sling
Certificate of Conformance
OSHA recommended “Criteria for Removal from Service”
Warnings & Cautions

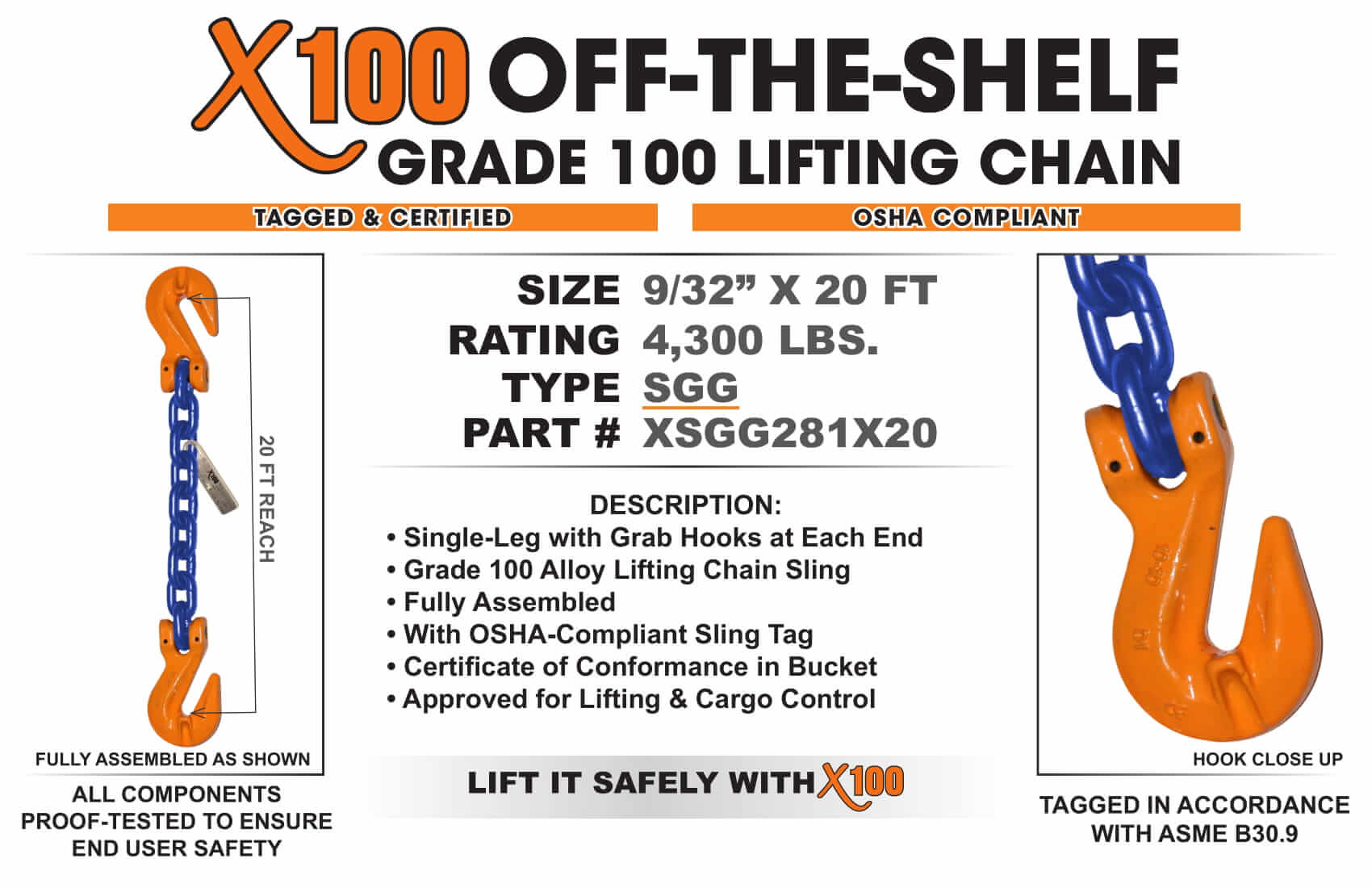

Easy-to-Understand Label for clear ease of purchase

Scroll down to see labels

TYPE	SIZES	LENGTHS
SGG	9/32” & 3/8”	10FT & 20FT

9/32″x10FT

9/32″x20FT

3/8″x10FT

3/8″x20FT

Part #	Size	Length	Weight (lb)	Item Description	Capacity: Single Leg @ 90 degree angle
XSGG281X10	9/32″	10′	8	“9/32″” x 10 ft. Single Leg X100 Chain Sling with Grab Hooks at Each End.”	4,300 lbs.
XSGG281X20	9/32″	20′	10	“9/32″” x 20 ft. Single Leg X100 Chain Sling with Grab Hooks at Each End.”	4,300 lbs.
XSGG375X10	3/8″	10′	20	“3/8″” x 10 ft. Single Leg X100 Chain Sling with Grab Hooks at Each End.”	8,800 lbs
XSGG375X20	3/8″	20′	36	“3/8″” x 20 ft. Single Leg X100 Chain Sling with Grab Hooks at Each End.”	8,800 lbs.

XDOSA281X10	9/32″	10′	21	“9/32″” x 10 ft. Double Leg X100 Adjustable Chain Sling with Clevis Sling Hooks with Latch at Each End.”	Capacity: Single Leg @ 60 degree angle	Capacity: Single Leg @ 45 degree angle	Capacity: Single Leg @ 30 degree angle
XDOSA281X20	9/32″	20′	37	“9/32″” x 20 ft. Double Leg X100 Adjustable Chain Sling with Clevis Sling Hooks with Latch at Each End.”	7,400 lbs.	6,100 lbs.	4,300 lbs.
XDOSA375X10	3/8″	10′	44	“3/8″” x 10 ft. Double Leg X100 Adjustable Chain Sling with Clevis Sling Hooks with Latch at Each End.”	Capacity: Single Leg @ 60 degree angle	Capacity: Single Leg @ 45 degree angle	Capacity: Single Leg @ 30 degree angle
XDOSA375X20	3/8″	20′	76	“3/8″” x 20 ft. Double Leg X100 Adjustable Chain Sling with Clevis Sling Hooks with Latch at Each End.”	15,200 lbs.	12,400 lbs.	8,800 lbs.

Part #	Size	Length	Weight (lb)	Item Description	Capacity: Single Leg @ 90 degree angle
XSGG281	9/32″	10′ & 20′	8 & 10	“9/32″”Single Leg X100 Chain Sling with Grab Hooks at Each End.”	4,300 lbs.
XSGG375	3/8″	10′ & 20′	20 & 36	“3/8″”Single Leg X100 Chain Sling with Grab Hooks at Each End.”	8,800 lbs

XDOSA281	9/32″	10′ & 20′	21 & 37	“9/32″”Double Leg X100 Adjustable Chain Sling with Clevis Sling Hooks with Latch at Each End.”	Capacity: Single Leg @ 60 degree angle	Capacity: Single Leg @ 45 degree angle	Capacity: Single Leg @ 30 degree angle
					7,400 lbs.	6,100 lbs.	4,300 lbs.
XDOSA375	3/8″	10′ & 20′	44 & 76	“3/8″”Double Leg X100 Adjustable Chain Sling with Clevis Sling Hooks with Latch at Each End.”	Capacity: Single Leg @ 60 degree angle	Capacity: Single Leg @ 45 degree angle	Capacity: Single Leg @ 30 degree angle
					15,200 lbs.	12,400 lbs.	8,800 lbs.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
