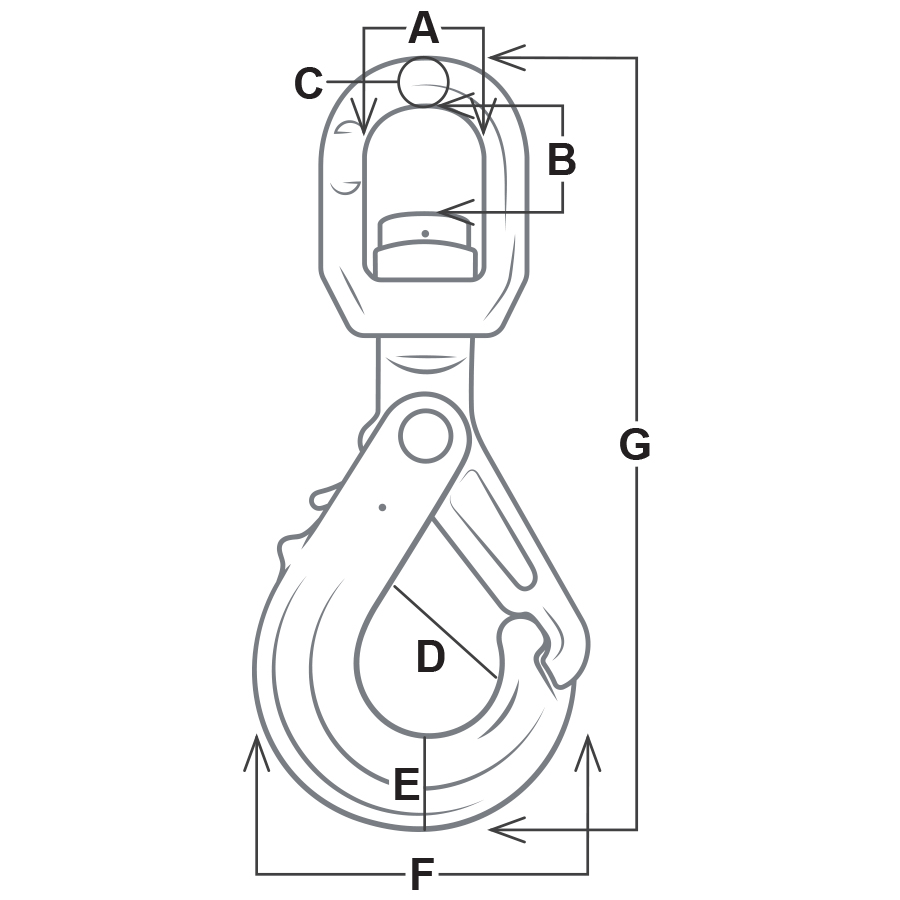

| STOCK NUMBER | SIZE | DIMENSIONS | Working load limit | ||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||
| XSSL281-312WB | 9/32″ – 5/16” | 1.380” | 1.000” | 0.500” | 1.330” | 0.940” | 3.700” | 8.800” | 5,700 lbs. |
| XSSL375WB | 3/8″ | 1.650” | 1.270” | 0.590” | 1.700” | 1.230” | 4.500” | 10.450” | 8,800 lbs. |
| XSSL500WB | 1/2” | 1.930” | 1.690” | 0.690” | 2.000” | 1.590” | 5.520” | 12.990” | 15,000 lbs |
| XSSL625WB | 5/8” | 2.400” | 2.170” | 0.850” | 2.430” | 1.990” | 6.710” | 16.260” | 22,600 lbs. |
Ultimate load is 5 times the Working Load Limit. Replacement Trigger Kits available.
| SIZE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XSSL281-312WB | 1.380” | 1.000” | 0.500” | 1.330” | 0.940” | 3.700” | 8.800” |
| XSSL375WB | 1.650” | 1.270” | 0.590” | 1.700” | 1.230” | 4.500” | 10.450” |
| XSSL500WB | 1.930” | 1.690” | 0.690” | 2.000” | 1.590” | 5.520” | 12.990” |
| XSSL625WB | 2.400” | 2.170” | 0.850” | 2.430” | 1.990” | 6.710” | 16.260” |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
