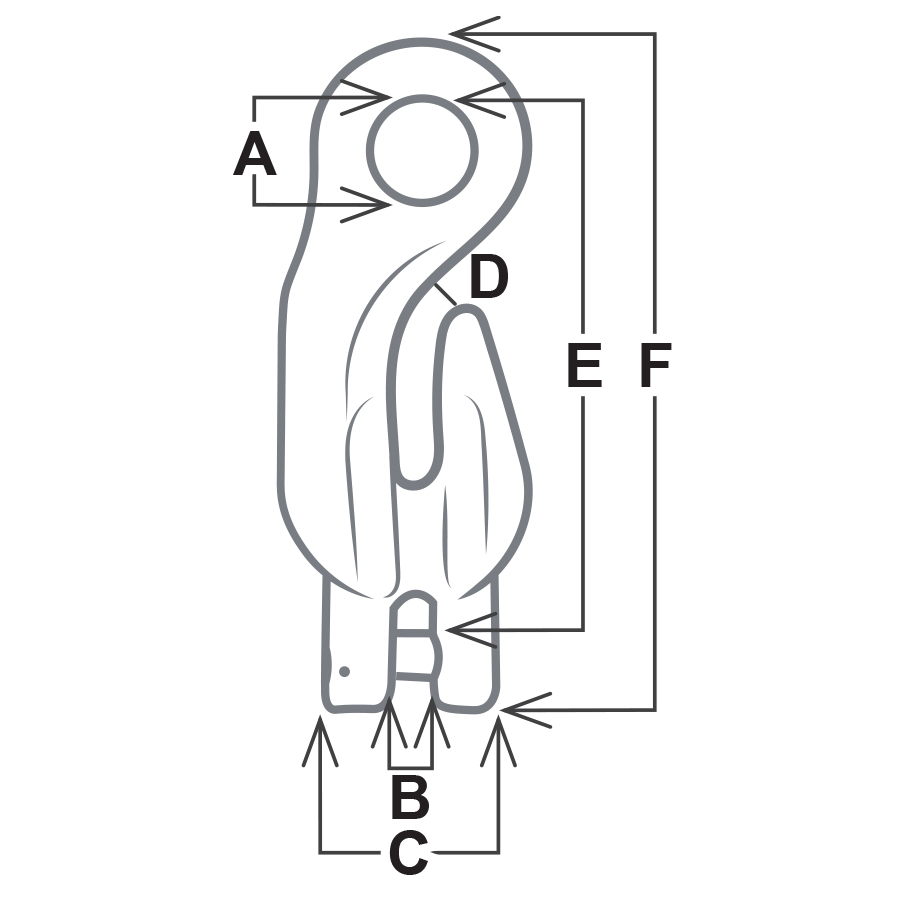

| STOCK NUMBER | SIZE | DIMENSIONS | Working load limit (lbs.) | Weight (lbs.) | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| XEG281-312ADJ | 9/32” – 5/16″ | 0.94” | 0.36” | 1.42” | 0.39” | 4.57” | 5.17” | 5,700 | 1.6 |
| XEG375ADJ | 3/8″ | 1.18” | 0.49” | 1.89” | 0.49” | 5.71” | 7.30” | 8,800 | 3.0 |
| XEG500ADJ | 1/2” | 1.42” | 0.63” | 2.34” | 0.61” | 7.01” | 8.78” | 15,000 | 5.25 |
| XEG625ADJ | 5/8″ | 1.77” | 0.75” | 2.76” | 0.75” | 8.50” | 10.75” | 22,600 | 10.0 |
| XEG750ADJ | 3/4″ | 2.20” | 1.01” | 3.56” | 1.38” | 11.24” | 13.82” | 35,300 | 20.1 |
| STOCK NUMBER | DIMENSIONS | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| XEG281-312ADJ | 0.94” | 0.36” | 1.42” | 0.39” | 4.57” | 5.17” |
| XEG375ADJ | 1.18” | 0.49” | 1.89” | 0.49” | 5.71” | 7.30” |
| XEG500ADJ | 1.42” | 0.63” | 2.34” | 0.61” | 7.01” | 8.78” |
| XEG625ADJ | 1.77” | 0.75” | 2.76” | 0.75” | 8.50” | 10.75″ |
| XEG750ADJ | 2.20” | 1.01” | 3.56” | 1.38” | 11.24” | 13.82” |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
