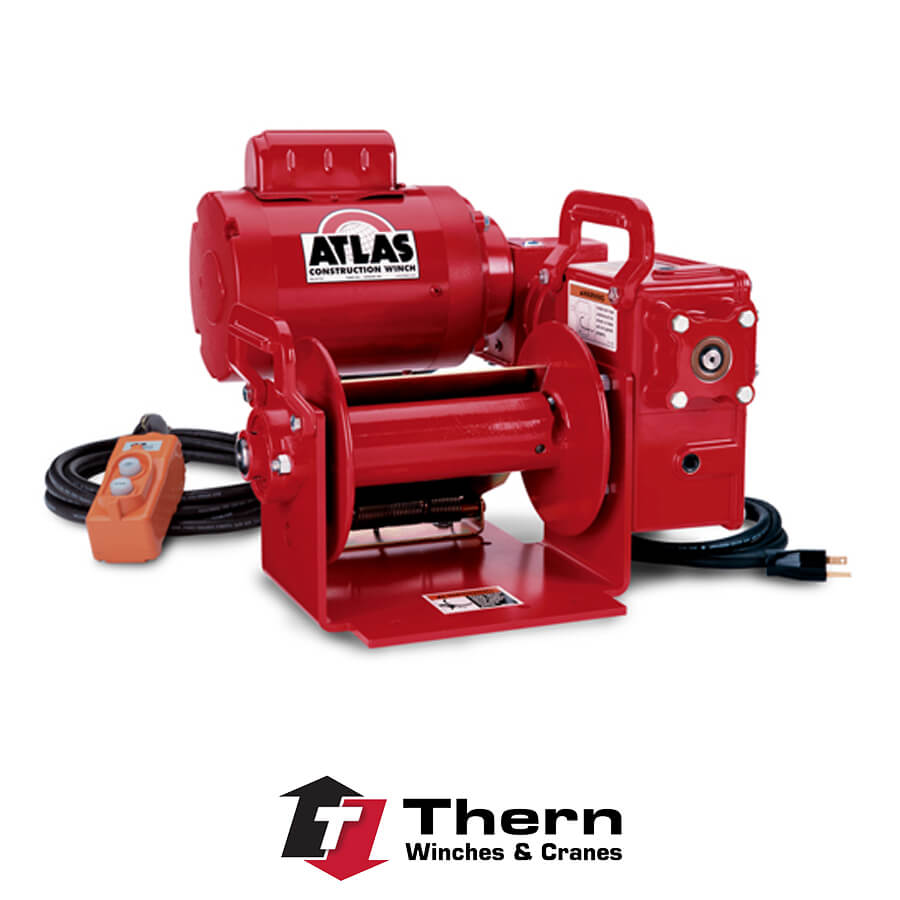

Thern Series 4WP Worm Gear Power Winches

Thern Series 4WP Worm Gear Power Winches

Machine cut worm gearing delivers accurate operation and long lasting service. 115 volt single phase motor 8 foot power cord with grounded plug and pushbutton pendent control on 6 foot cord. Cast aluminum gearbox and drum provide lightweight strength and durability. An enclosed oil bath provides continuous lubrication. An internal mechanical brake provides positive load control for lifting and lowering operations. Bronze and ball bearings deliver smooth operation. Wire rope sold separately.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

CERTEX Cat. Ref. No. Thern Model Description Load Rating 1st Layer Load Rating Full Drum Wire Rope Diameter 1st Layer Line Speed Full Drum Capacity Approx. Ship. Wt.
CX11-0641 4WP2 115/1/60 VAC, with 6 ft pendant 2000 lb. 1200 lb. 1/4 in. 8 fpm 77 ft. 83 lb.

Actual drum capacities may be 25-30% less, due to nonuniform winding.
Tension in the wire rope will also affect drum capacity.
