• Red Marking
• Common Applications: Equipment Transport, Heavy Towing & Steel Coil Transport
• Design Factor 3:1

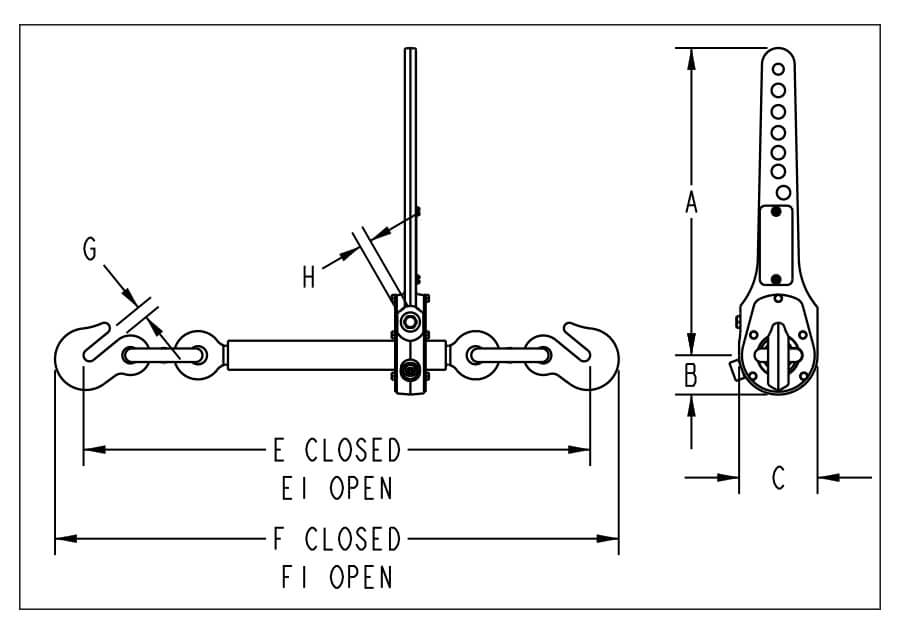

| Model | Stock No. | Min-Max Chain Size (in) | Working Load Limit (lb) | Proof Load (lb) | Weight Each (lb) | Dimensions (in) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | E1 | F | F1 | G | H | ||||||

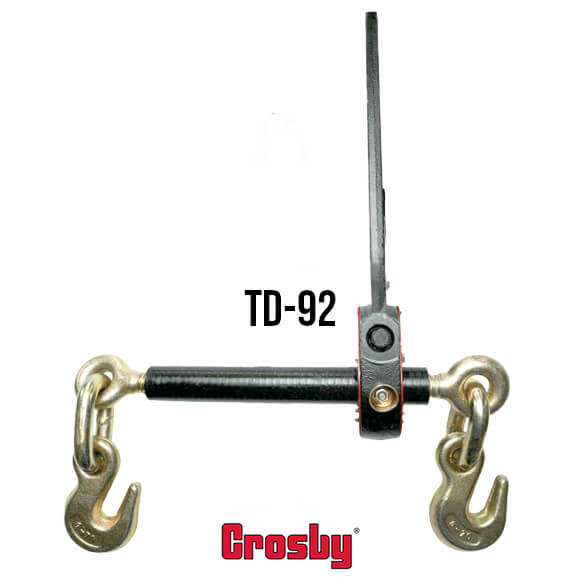

| TD-92 | 3674490 | 3/8-1/2 | 9,200 | 13,800 | 16.0 | 14.06 | 1.80 | 3.60 | 23.26 | 32.26 | 25.88 | 34.88 | 0.56 | 0.53 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
