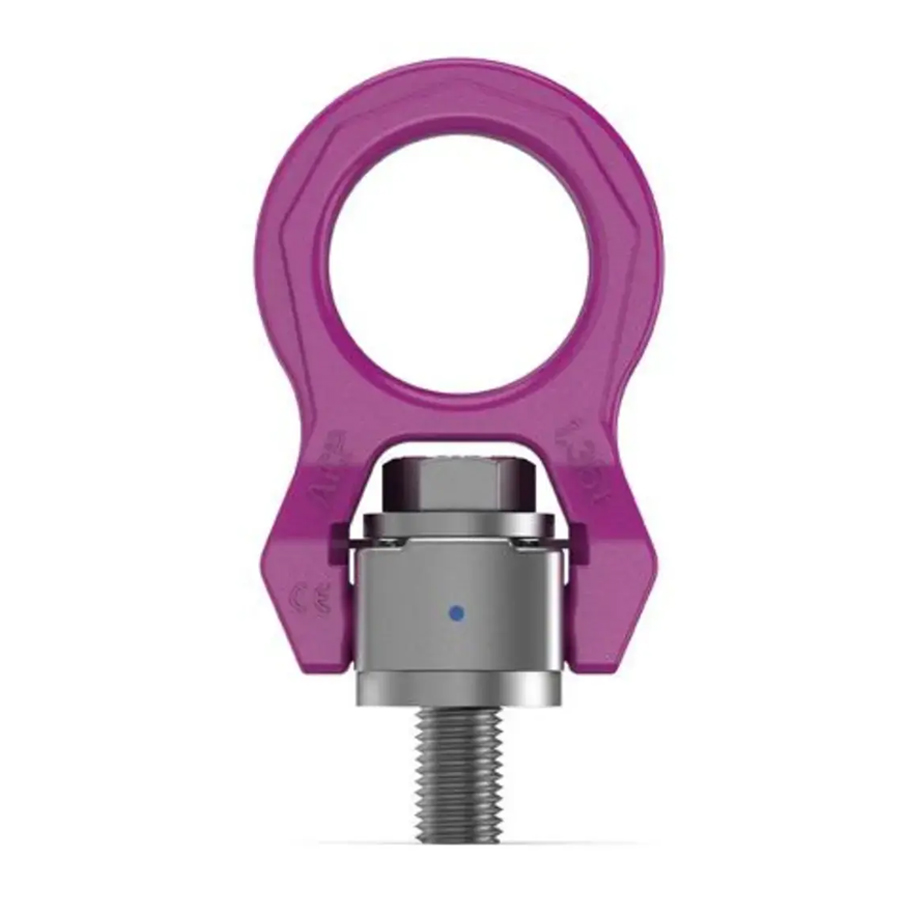

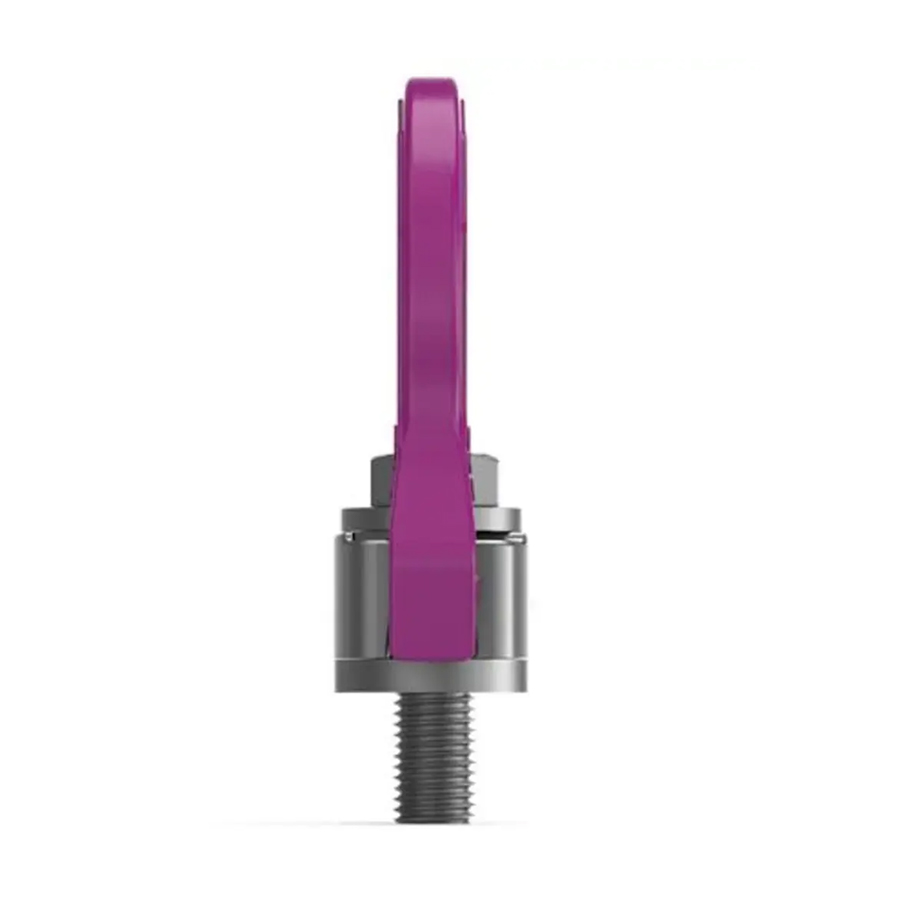

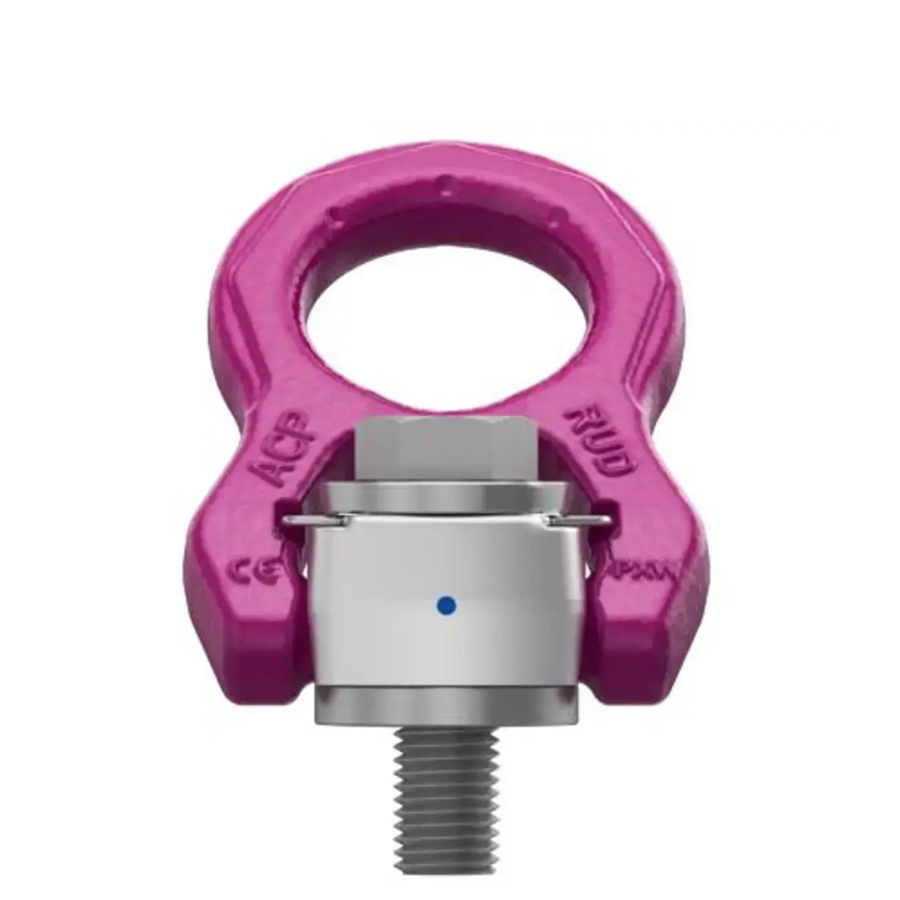

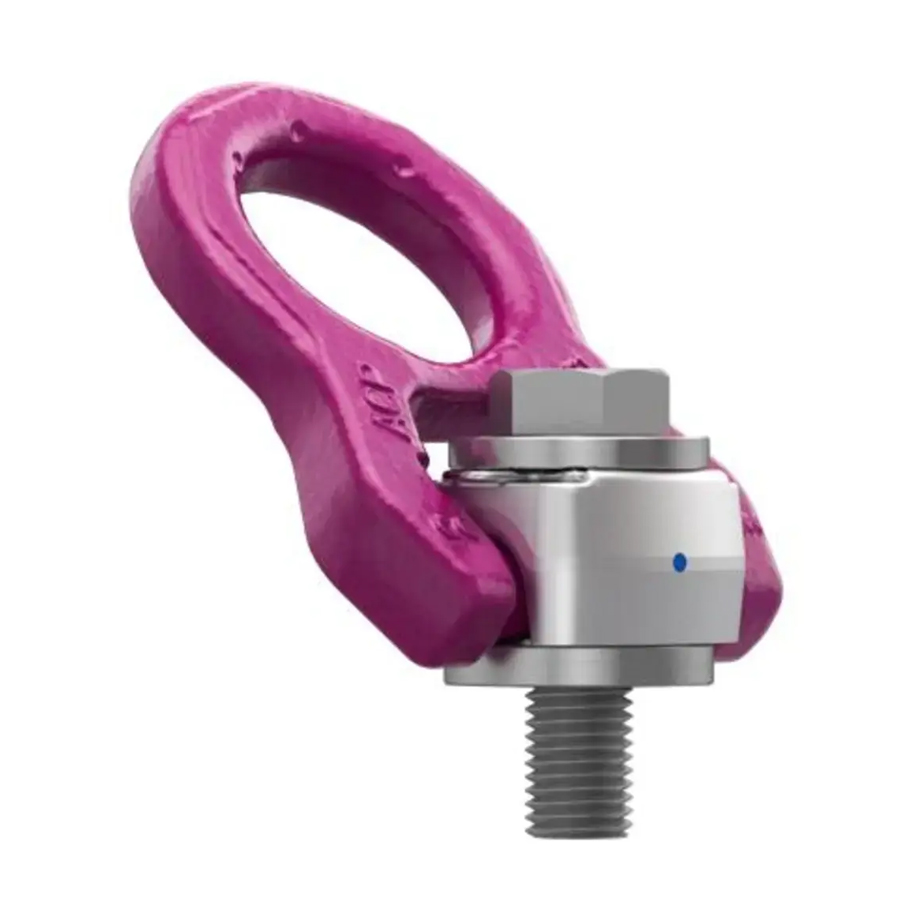

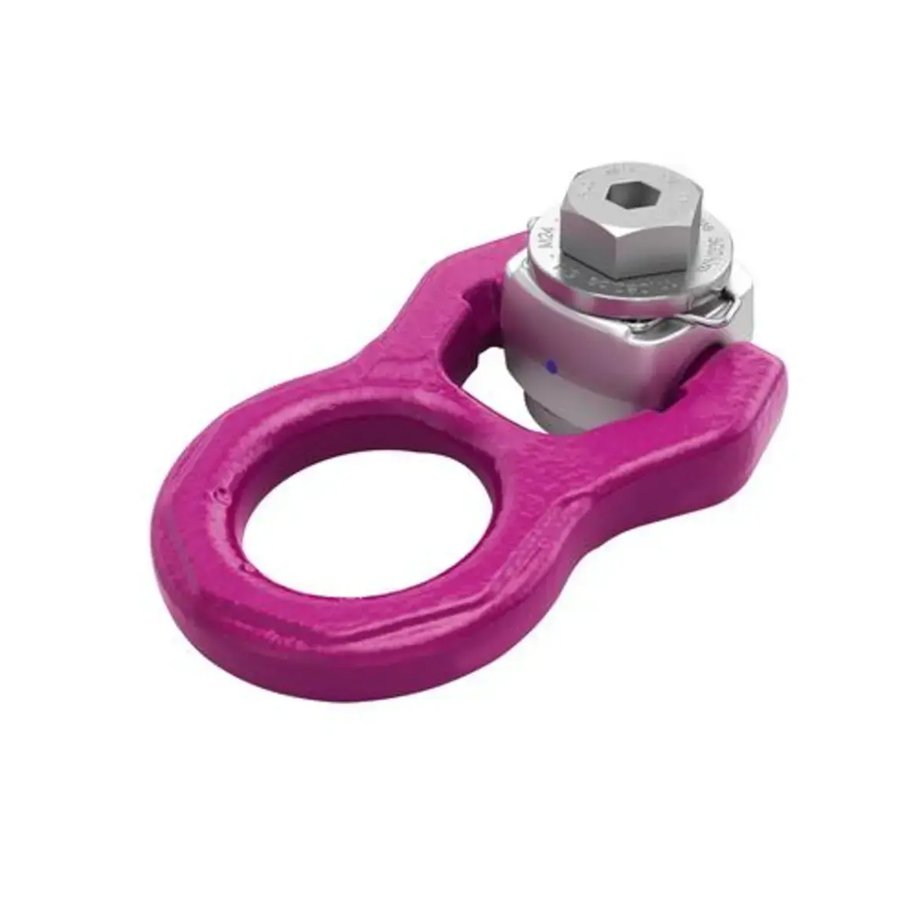

RUD ACP-TURNADO: Metric Thread Automatic Center Point Boltable Lifting Point

RUD ACP-TURNADO: Metric Thread Automatic Center Point Boltable Lifting Point

Product Features:

  • Innovative exterior spring mechanism – prevents the lift bail from stopping with transverse load
  • Swivel joint in the lifting ring axis
  • Wear lenses for checking discard criteria
  • Integrated RFID transponder to make checks easier
  • Safety factors 4:1 and 5:1
  • Meets and exceeds the requirements of the American standard ASME B30.26
  • Sized up to M24 use an Ice Bolt; larger sizes use a standard bolt

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

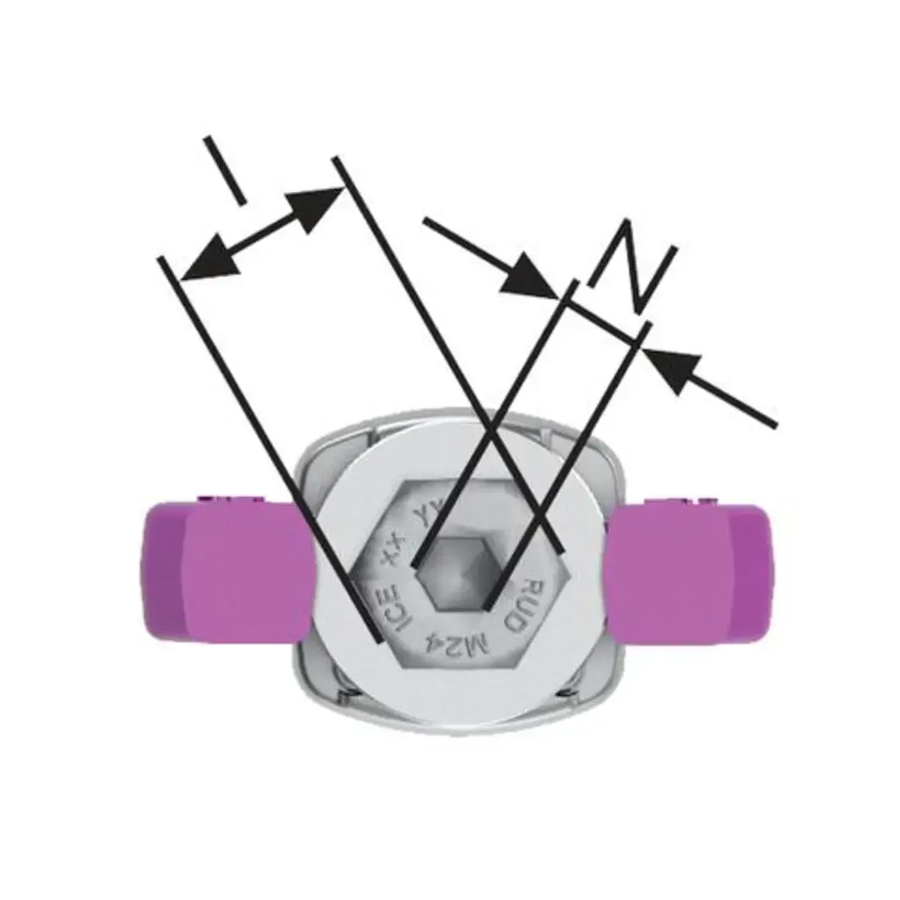

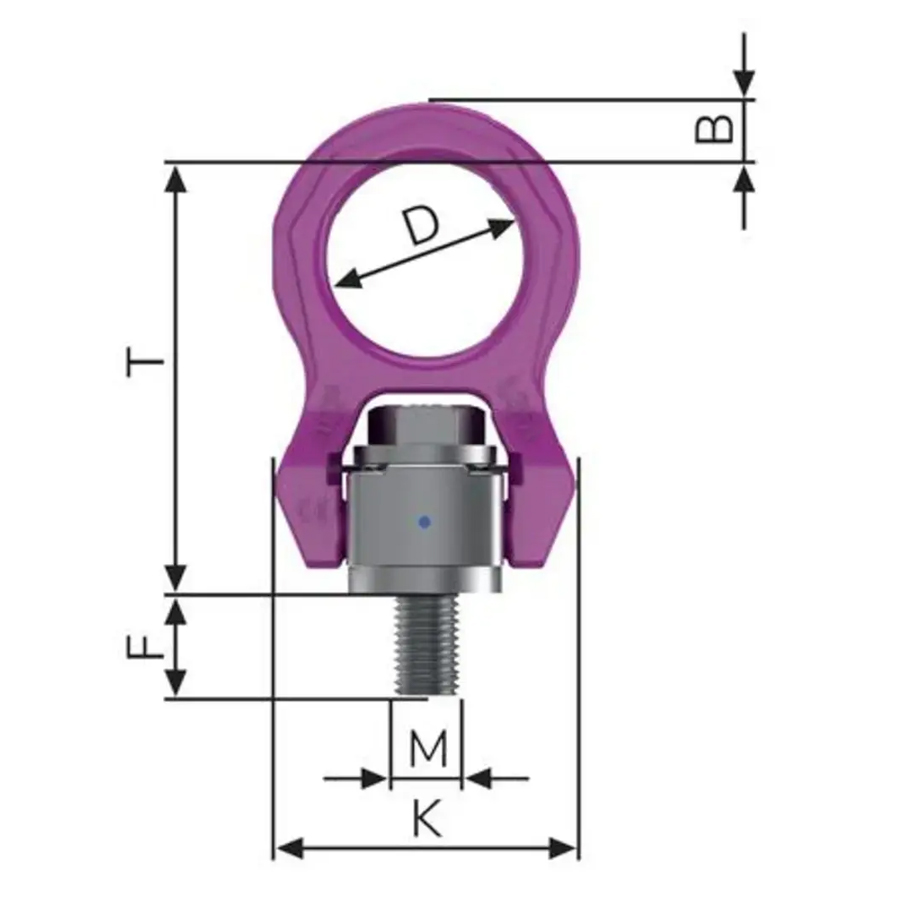

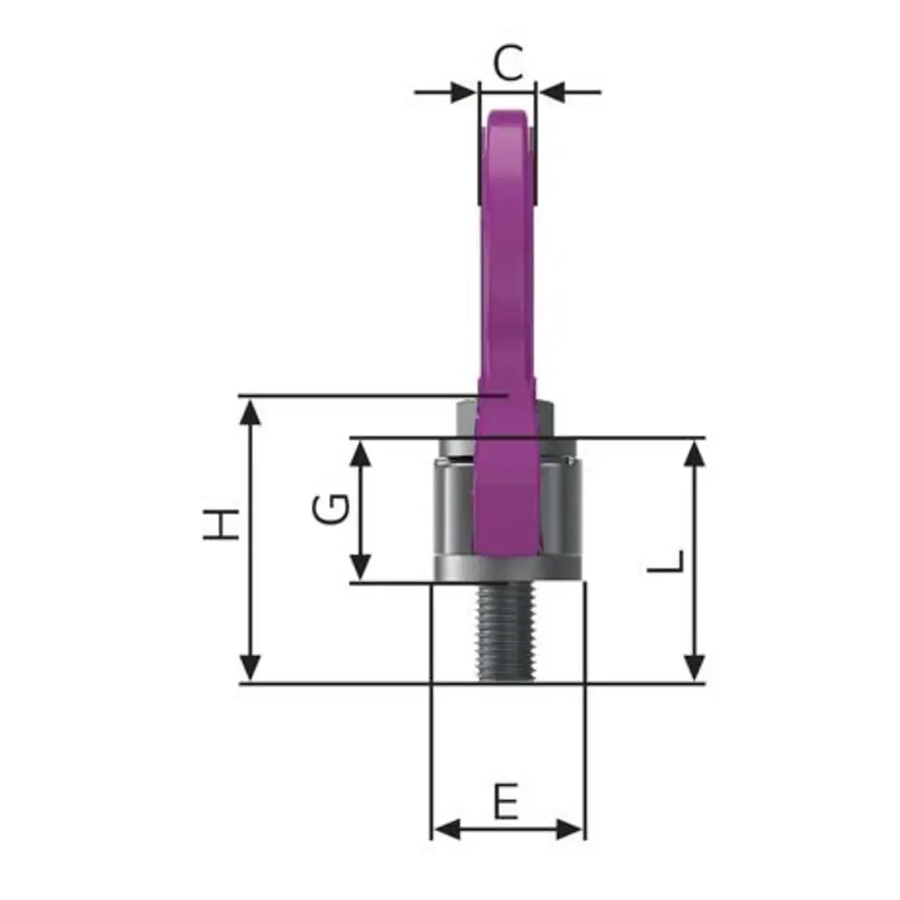

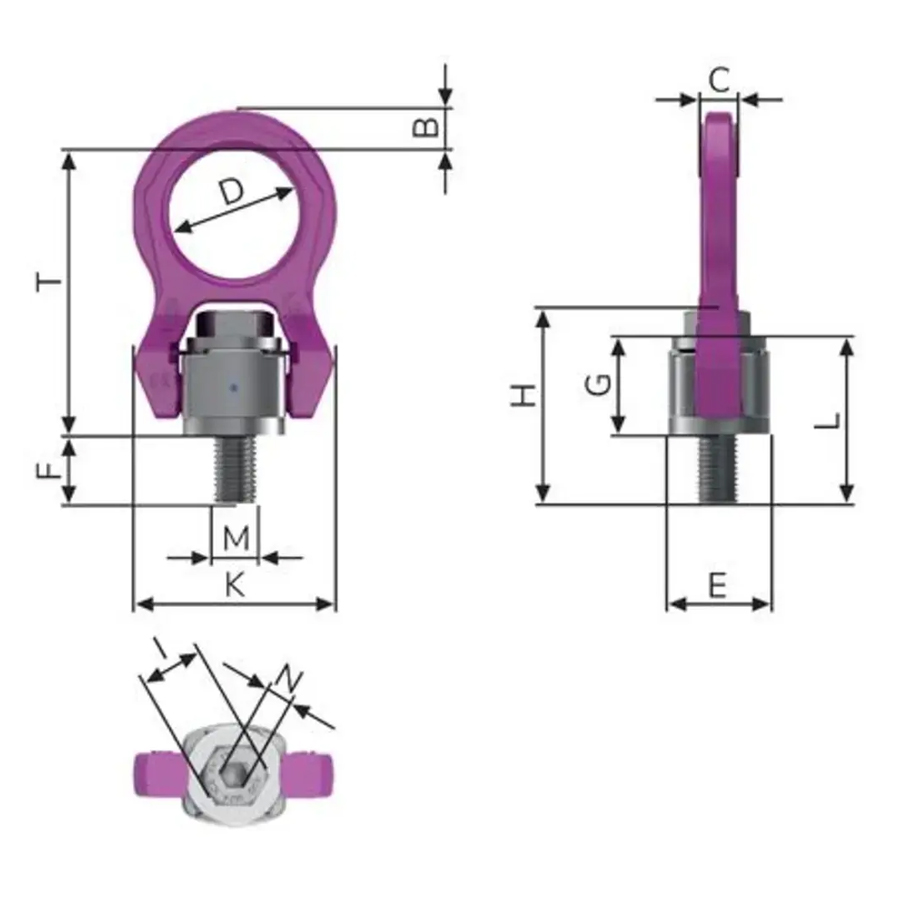

Model Number WLL (tons) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) K (mm) L (mm) M N (mm) Pitch T (mm In Stock Price
7912061 0.7 11 10.5 38 30 12 28 45 13 58 40 M8 5 83 ❌ $
7912064 1 11 10.5 38 30 16 28 50.4 17 58 44 M10 6 83 ❌ $
7909314 1.35 11 10.5 38 30 19 28 54.5 19 58 47 M12 8 83 ✔ $
7909316 2.5 14 14 50 40 22 36 68 24 76 58 M16 10 107 ❌ $
7909317 4 17 17 50 45 26.5 43.5 82.5 30 89 70 M20 12 118 ✔ $
7909318 6.3 23 23 66 60 34 55 104 36 121 89 M24 14 154 ✔ $
7909319 8 29 27 75 75 41.5 68.5 129 46 148 110 M30 17 183 ❌ $
