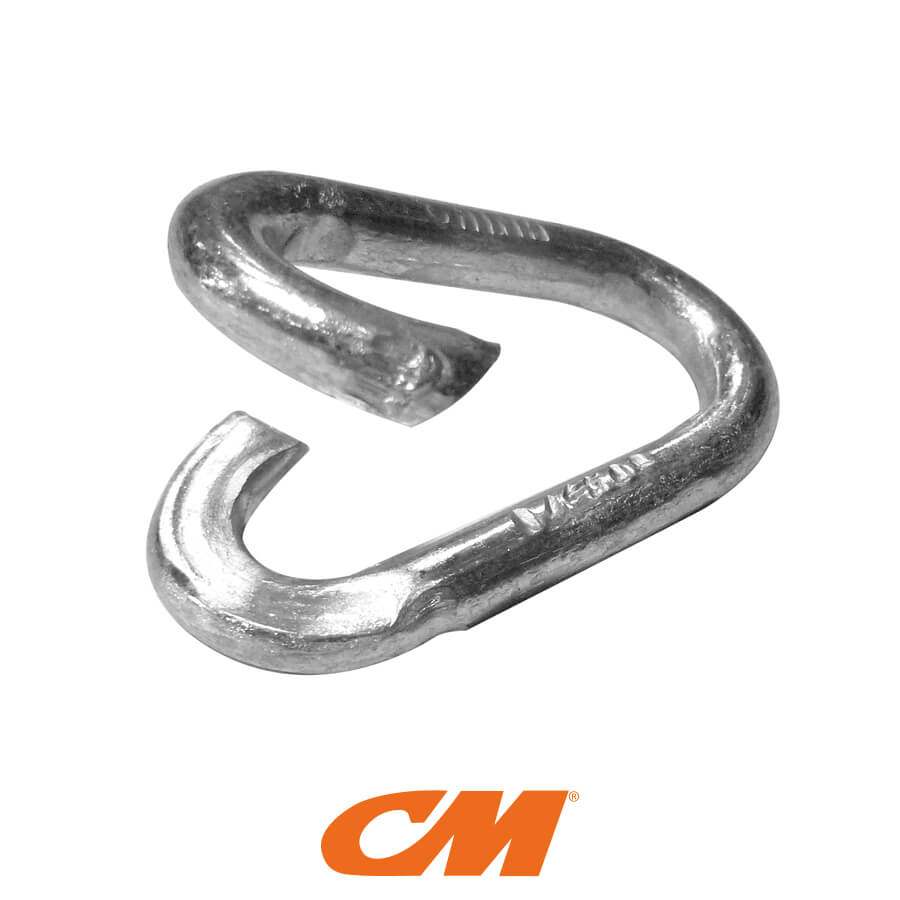

CM Repair Lap Link

CM Repair Lap Link

Applications:
A temporary repair link also used to couple light attachments.

Packing:
100 per carton in 1/8” by 3/4” and 3/16” by 1” sizes, 50 per carton in the 7/32” by 1 1/4” through 3/8” by 2” sizes. 25 per carton in the 1/2” by 2 1/2” size.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Trade Size Inches Bright Carton Zinc Plated Carton Pieces per Carton Inside Length Inches Inside Width Inches Weight per 100 Pieces Pounds Working Load Limit* Pounds
CERTEX Cat. Ref. No. Columbus McKinnon Code No. UPC Code CERTEX Cat. Ref. No. Columbus McKinnon Code No. UPC Code
1/8 x 3/4 — — — CX06-0883 653612 29251 100 3/4 1/4 1 1/8 175
3/16 x 1 CX06-0872 653180 29186 CX06-0884 653618 29256 100 1 1/2 3 1/2 225
7/32 x 1 1/4 CX06-0873 653211 29191 CX06-0885 653621 29261 50 1 1/4 1/2 5 1/2 450
1/4 x 1 1/4 CX06-0874 653251 29196 CX06-0886 653625 29266 50 1 1/4 1/2 7 1/2 400
1/4 x 1 1/2 CX06-0875 653253 29206 CX06-0887 653626 29276 50 1 1/2 1/2 8 1/3 400
1/4 x 2 CX06-0876 653255 29211 CX06-0888 653627 29281 50 2 5/8 10 1/2 400
9/32 x 1 1/4 CX06-0877 653281 29201 CX06-0889 653628 29271 50 1 1/4 1/2 9 3/4 375
5/16 x 1 1/2 CX06-0878 653312 29216 CX06-0890 653631 29286 50 1 1/2 3/4 14 1/2 675
5/16 x 2 CX06-0879 653315 29221 CX06-0891 653632 29291 50 2 3/4 17 1/3 625
3/8 x 1 5/8 CX06-0880 653373 29226 CX06-0892 653633 29296 50 1 5/8 3/4 23 1,050
3/6 x 2 CX06-0881 653375 29231 CX06-0893 653638 29301 50 2 3/4 24 1,000
1/2 x 2 1/2 CX06-0882 653506 29236 CX06-0894 653650 29306 25 2 1/2 1 54 1,525

A mild steel, available with bright, hot galvanized, or zinc-plated finishes.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
