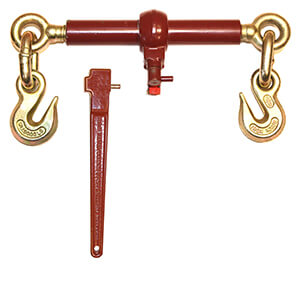

GOLD-TIP® Removable Handle Enclosed Ratchet Binders

GOLD-TIP® Removable Handle Enclosed Ratchet Binders

• Straight, heavy duty barrel
• Grab-Grab end fittings
• Fittings are yellow zinc plated
• Powder coated handle and barrel
• All load bearing fittings are forged
• Quenched and tempered
• Theft resistant removable handle
• Recommended purchase ratio: 1 handle to every 4 bodies
• Enclosed gears
• Handle locks in place

STOCK NUMBER TAKE-UP BARREL LENGTH HANDLE LENGTH SCREW DIAMETER END FITTINGS BEARING TO BEARING (CLOSED-OPEN) WORKING LOAD LIMIT (LBS.) PROOF LOAD LIMIT (LBS.) WEIGHT (LBS.)
GTER375 8″ 10″ 16″ 1″ 3/8” Grab x 2 25″ – 33″ 8,800 17,600 13
GTER500 8″ 10″ 16″ 1″ 1/2” Grab x 2 26″ – 34″ 12,000 24,000 17
GTER625 8″ 10″ 16″ 1″ 5/8” Grab x 2 26″ – 34″ 16,000 32,000 22
STOCK NUMBER HANDLE LENGTH
GTERHANDLE 16″

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
