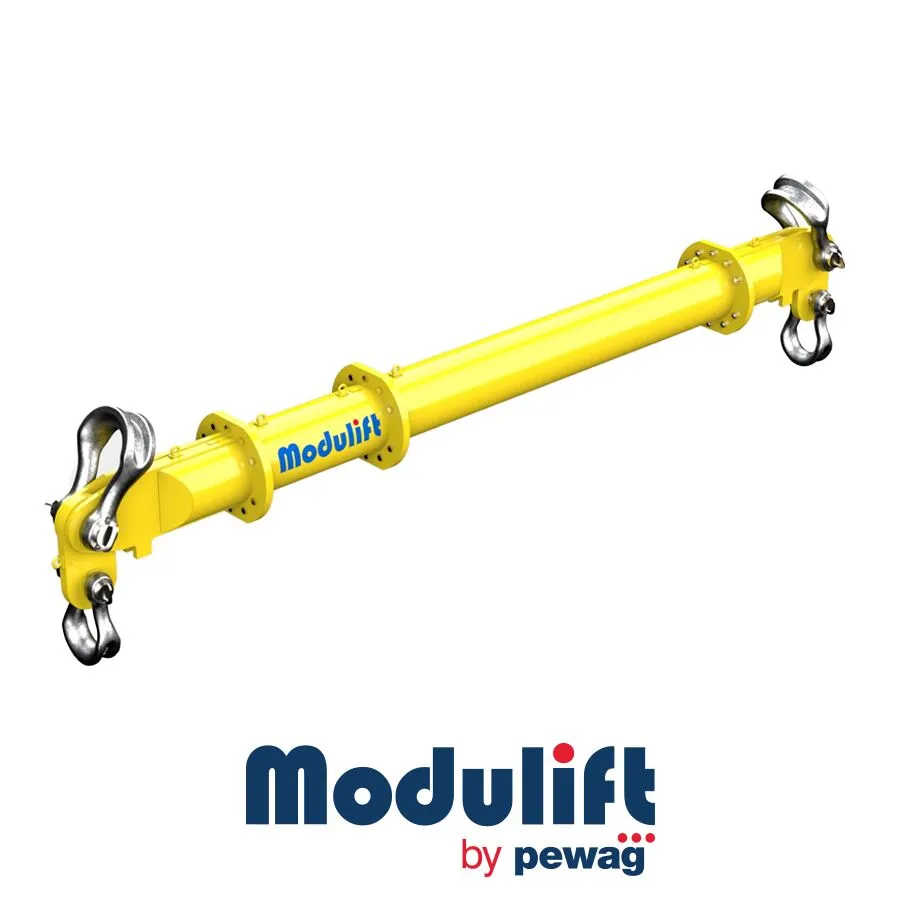

Modulift MOD 250/250 Spreader Beam

Modulift MOD 250/250 Spreader Beam

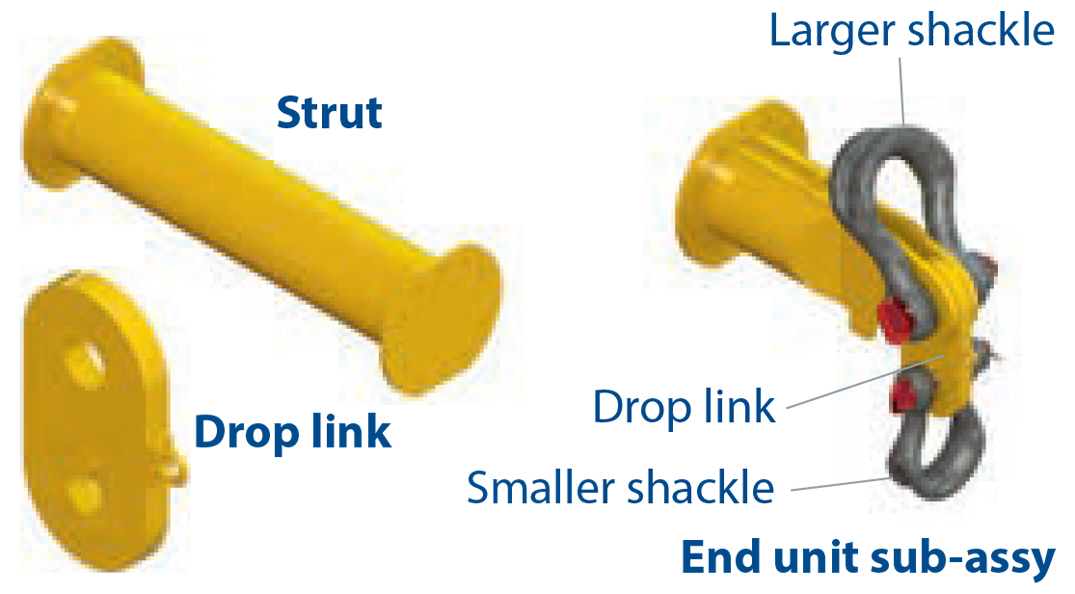

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 250/250 has an assembled span ranging from 6ft to 68ft in 1ft increments.


EMAIL PAGE

EMAIL PAGE

VIEW IN CATALOG

VIEW IN CATALOG

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
  • Rated at 250 tonnes SWL at 38ft span
    (60° BSA). See Load Table for SWL at longer spans.

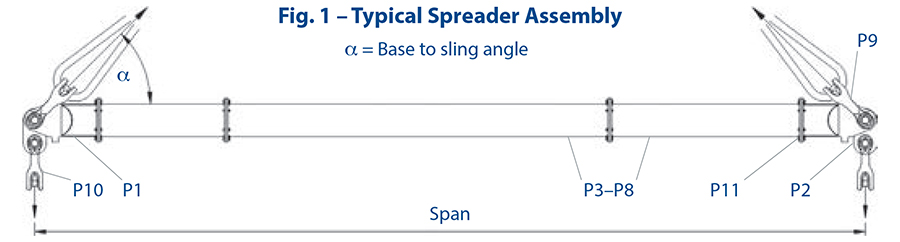

  • ‘Base to Sling’ angle, α, 45 degrees or more.
  • End Units & Drop Links are rated at 125 tonnes WLL each (250 tonnes combined capacity).
  • Bolt tightening torque: 184 Pound-Foot. Spanner size required: 36mm.
  • Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.



Part Ref. Description Weight/item
P1 End Unit 743 lbs
P2 Drop Link 198 lbs
P3 20ft Strut 1900 lbs
P4 10ft Strut 1087 lbs
P5 5ft Strut 680 lbs
P6 3ft Strut 518 lbs
P7 2ft Strut 436 lbs
P8 1ft Strut 355 lbs
P9 200t Wide Body Shackle 452 lbs
P10 125t Wide Body Shackle 203 lbs
P11 M24 x 80 Grade 8.8 HT Bolts, Nuts & Washers

● Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
● The use of Modulift equipment must be in accordance with the procedures laid down in
‘ASME B30.20 – 2013’.
● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.
● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.
● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
● Do not under any circumstances hang load(s) from the tube or flanges – the spreader is designed for axial compression, not bending.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
