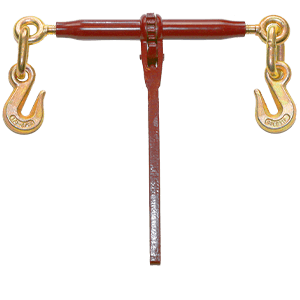

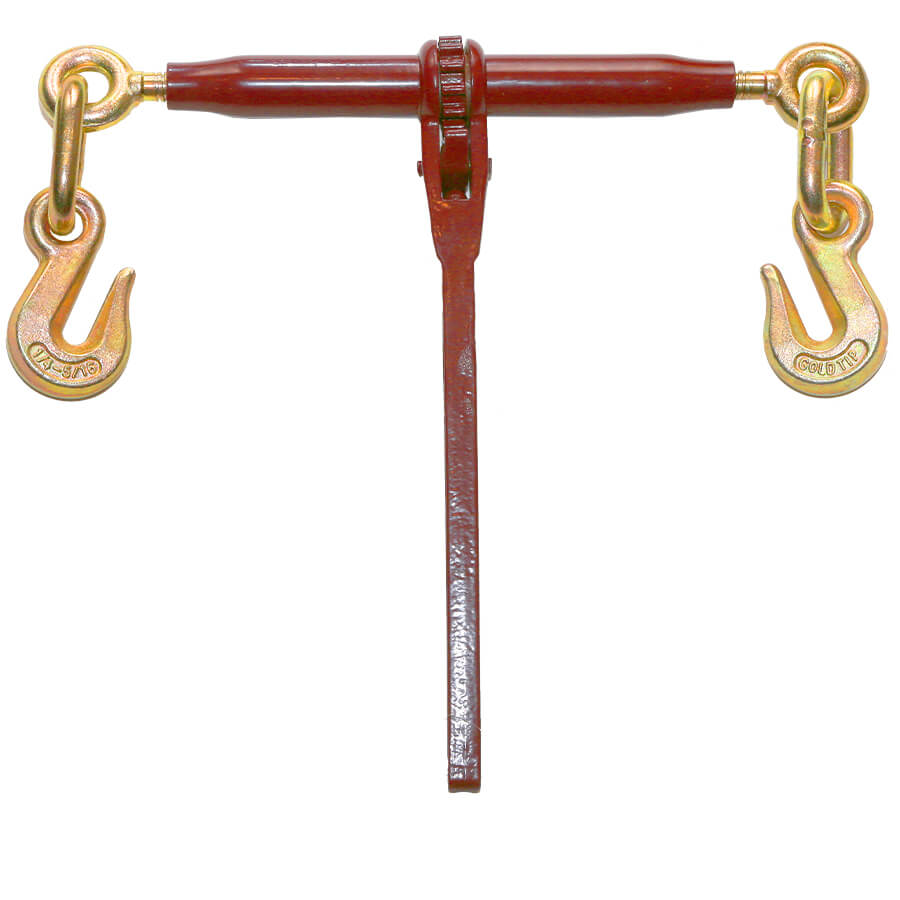

GOLD-TIP® LITE Grab-Grab Load Binder

GOLD-TIP® LITE Grab-Grab Load Binder

• Tapered barrel
• Grab-Grab end fittings
• Fittings are yellow zinc plated
• Powder coated handle and barrel
• All load bearing fittings are forged
• Quenched and tempered
• One piece handle


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK
NUMBER &
CHAIN SIZE		 GRAB
HOOK
SIZE		 TAKE-UP BARREL LENGTH HANDLE
LENGTH		 SCREW DIAMETER BEARING TO BEARING (CLOSED-OPEN) WORKING
LOAD LIMIT
(LBS.)		 PROOF
LOAD LIMIT
(LBS.)		 WEIGHT
(LBS.)
GT3500L
3/16” – 1/4”		 1/4″ 4″ 6″ 8″ 1/2″ 16″ – 20″ 3,500 7,000 8
GT4700L
1/4” – 5/16”		 5/16″ 8″ 10″ 12″ 1/2″ 20″ – 28″ 4,700 9,400 9
GT7100L
 5/16” – 3/8”		 3/8″ 8″ 10″ 15″ 7/8″ 25″ – 33″ 7,100 14,200 12
GT11300L
3/8” – 1/2”		 1/2″ 8″ 10″ 15″ 7/8″ 26″ – 34″ 11,300 22,600 16
STOCK
NUMBER		 PRODUCT IMAGE
GT3500L
GT4700L
GT7100L
GT13000L

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
