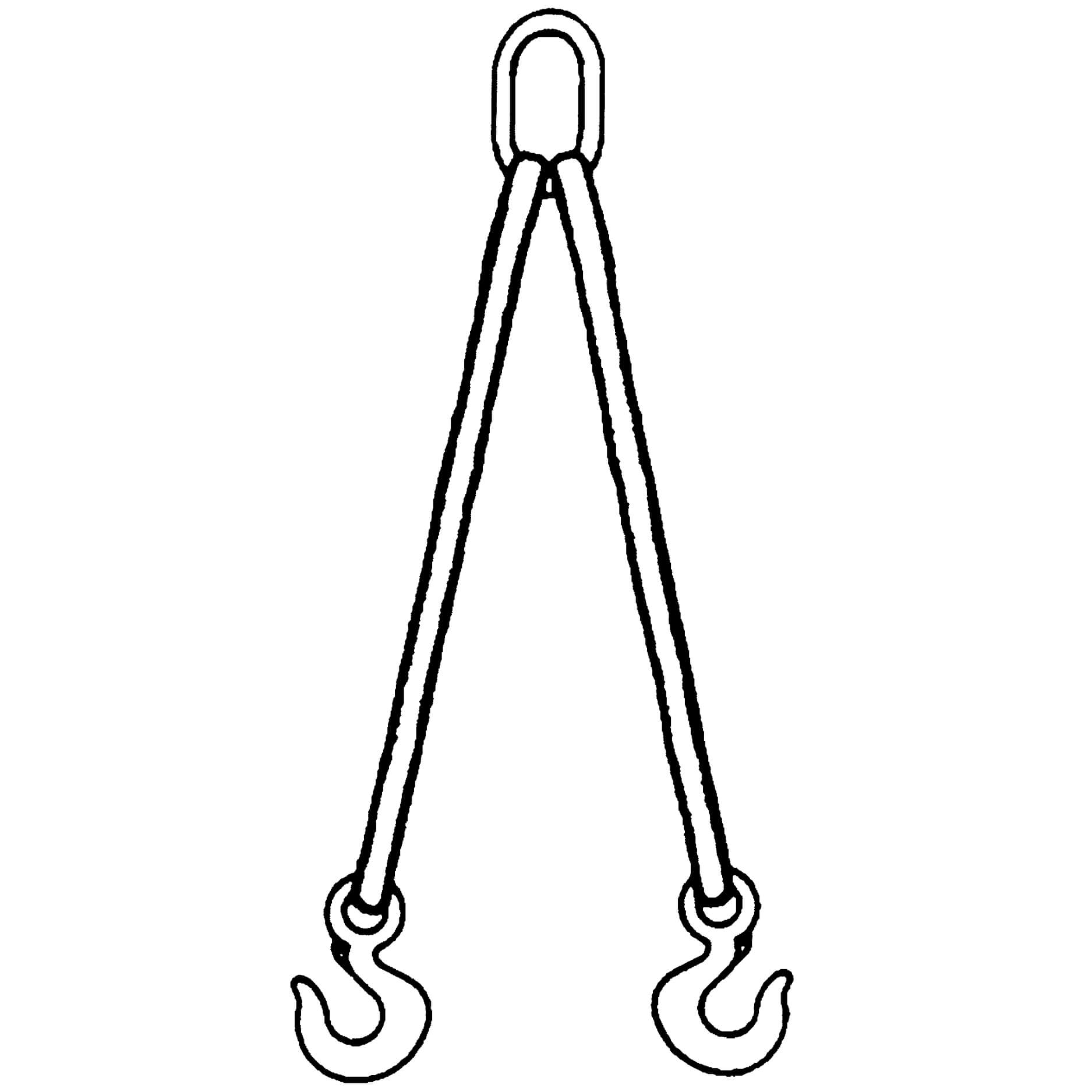

| Double Leg Slings | ||||
|---|---|---|---|---|
| CERTEX Cat. Ref. No. | Oblong Link | 60° | 45° | 30° |
| CX08-0082 | 5/8″ | 4,500 | 3,675 | 2,600 |
| CX08-0083 | 3/4″ | 9,100 | 7,450 | 5,300 |
| CX08-0084 | 1″ | 7,250 | 11,800 | 8,400 |
| CX08-0085 | 1″ | 18,300 | 14,900 | 10,600 |
| CX08-0086 | 1 1/4″ | 22,800 | 18,600 | 13,200 |
| CX08-0087 | 1 1/2″ | 29,000 | 23,700 | 16,800 |
| CX08-0088 | 1 1/2″ | 36,700 | 29,900 | 21,200 |
Rated capacities are affected by angle of lift (roundsling to load angle) measured from the horizontal when used with multi-legged roundslings or choker/basket hitches.
Larger capacities upon request.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
