Designed with Non-Slip surface that:
• Eliminates “bunching” effect caused by traditional shackles.
• Reduces sling tendency to slide.

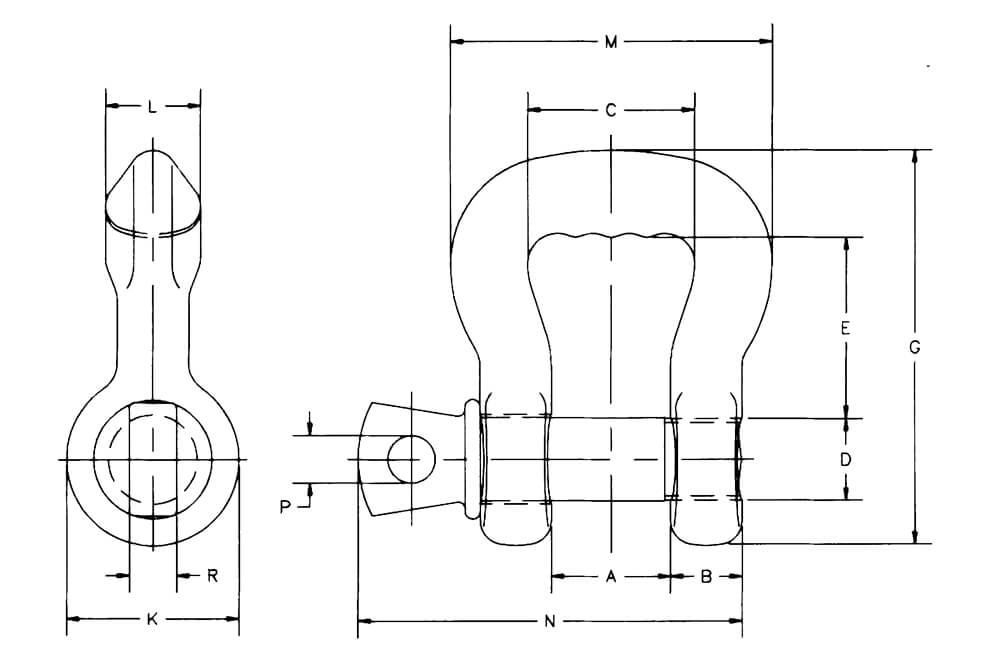

| Web Sling Nominal Size (in.) | Round Sling Size (Number) | Working Load Limit* (tons) | S-253 Bolt Type | Dimensions (in.) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CERTEX Cat. Ref. No. | Crosby S-253 Stock No. | Weight Each (lbs.) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | R | |||
| 1 | 1 & 2 | 3 1/4 | CX07-0325 | 1020575 | 1.4 | 0.88 | 0.62 | 1.38 | 0.75 | 1.50 | 0.44 | 3.38 | 3.68 | 1.12 | 1.50 | 0.75 | 2.69 | 3.22 | 0.44 | 1.00 |
| 1.5 | 3 & 4 | 6 1/2 | CX07-0326 | 1020584 | 2.2 | 1.25 | 0.75 | 1.75 | 0.88 | 1.88 | 0.50 | 4.15 | 4.25 | 1.31 | 1.81 | 1.00 | 3.38 | 4.03 | 0.50 | 1.19 |
| 2 | 5 & 6 | 8 3/4 | CX07-0327 | 1020593 | 3.8 | 1.38 | 0.88 | 2.25 | 1.00 | 2.81 | 0.56 | 5.50 | 4.72 | 1.50 | 2.09 | 1.12 | 4.19 | 4.50 | 0.50 | 1.44 |
| 3 | 7 & 8 | 12 1/2 | CX07-0328 | 1020602 | 7.3 | 1.62 | 1.12 | 3.25 | 1.25 | 3.06 | 0.75 | 6.34 | 5.88 | 1.88 | 2.62 | 1.38 | 5.62 | 5.59 | 0.62 | 1.81 |
| 4 | 9 & 10 | 20 1/2 | CX07-0329 | 1020611 | 15.2 | 2.12 | 1.38 | 4.50 | 1.50 | 5.75 | 0.88 | 9.75 | 7.19 | 2.25 | 3.12 | 1.75 | 7.50 | 6.88 | 0.75 | 2.13 |
| 5 | 11 & 12 | 35 | CX07-0330 | 1020620 | 30.8 | 2.50 | 1.75 | 5.50 | 2.00 | 6.34 | 1.12 | 11.50 | 9.31 | 3.00 | 4.19 | 2.25 | 9.19 | 8.66 | 1.00 | 2.88 |
| 6 | 13 | 50 | CX07-0331 | 1020629 | 52.0 | 3.00 | 2.12 | 6.50 | 2.25 | 7.70 | 1.25 | 13.75 | 10.38 | 3.38 | 4.75 | 2.75 | 11.00 | 10.22 | 1.22 | 3.19 |
* Note: Maximum Proof load is 2 1/2 times the Working Load Limit. Minimum Ultimate Strength is 5 times the Working Load Limit.
• Shackles available in sizes 3 1/4 to 50 tons.
• Hooks available is sizes 1 1/2, 3 and 5 tons.
• Increased radius of bow / eye gives wider sling bearing surface resulting in an increased area for load distribution, thus:
• Increasing Synthetic Sling efficiency by at least 15% as compared to standard anchor and chain shackle bows and conventional eye hooks. This allows 100% of the slings rated Working Load Limit to be achieved.
• Allowing better load distribution on internal fibers.
• Design factor of 5 to 1.
• Shackles available in both a Screw Pin and Bolt, Nut and cotter pin configuration.
• Bolt (Pin) has a larger diameter that provides better load distribution.
• Look for the Red Pin™ … the mark of Genuine Crosby quality.
• Each shackle and hook has a Product Identification Code (PIC) for material traceability along with a Working Load Limit and the name Crosby forged into it.
• All Alloy construction.
• Fatigue rated to 20,000 cycles at 1 1/2 times the Working Load Limit.
