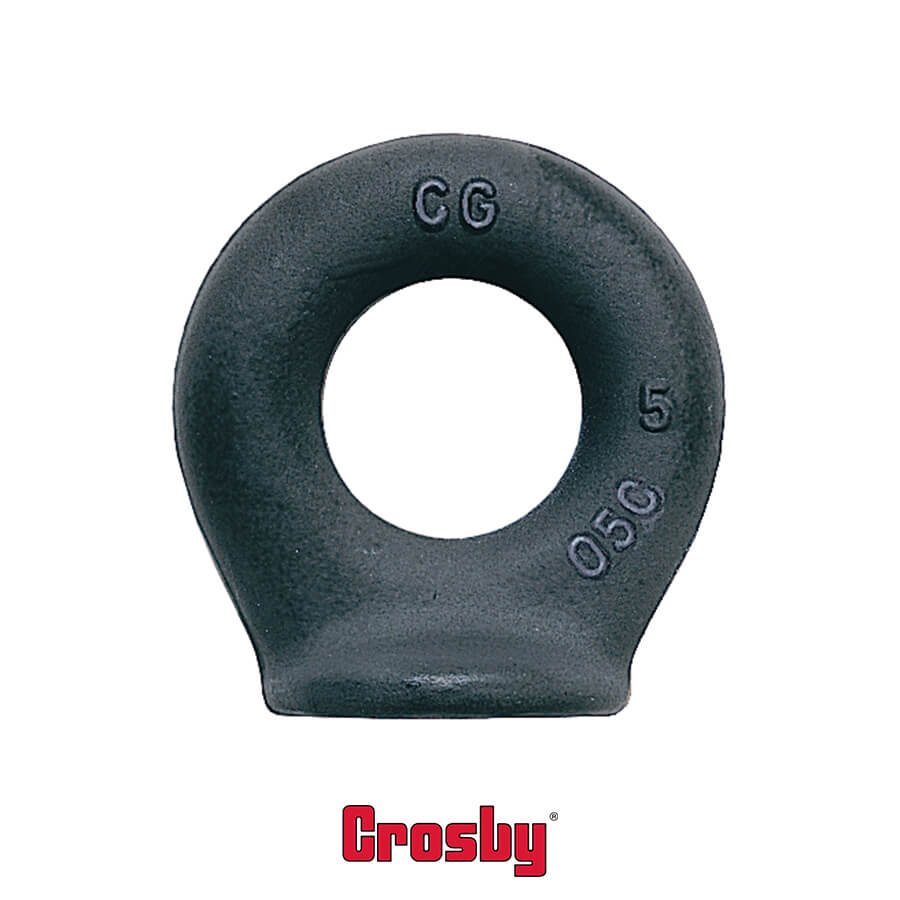

Crosby® Pad Eyes – S-264

Crosby® Pad Eyes - S-264

S-264

  • Forged Steel — Quenched and Tempered
  • Forged from 1035 Carbon Steel.
  • Excellent welding qualities.
  • Widely used on farm machinery, trucks, steel hulled marine vessels and material handling equipment.
  • Reference American Welding Society specifications for proper welding procedures.

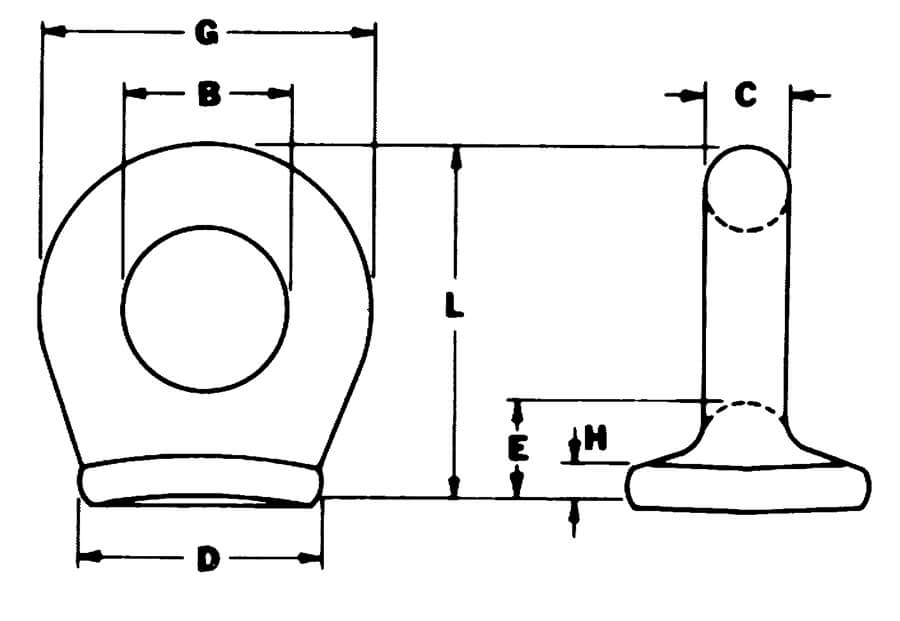

Size No CERTEX Cat. Ref. No Crosby S-264 Stock No. S.C. Weight Per 100 (lbs.) Dimensions (in.)
B C D E G H L
*0 CX10-0381 1090722 2.80 0.25 0.19 0.63 .31 .63 .09 .75
*1 CX10-0382 1090740 6.50 0.38 0.25 0.88 .41 .88 .13 1.03
*1 1/2 CX10-0383 1090768 10.40 0.63 0.25 1.00 .44 1.13 .16 1.31
2 CX10-0384 1090786 21.10 0.75 0.38 1.06 .50 1.50 .19 1.63
4 CX10-0385 1090802 52.20 1.00 0.56 1.44 .78 2.13 .22 2.34
5 CX10-0386 1090820 82.50 1.25 0.69 1.75 .81 2.63 .25 2.75

* Meets the requirements of Military Specification MS-51930A

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
