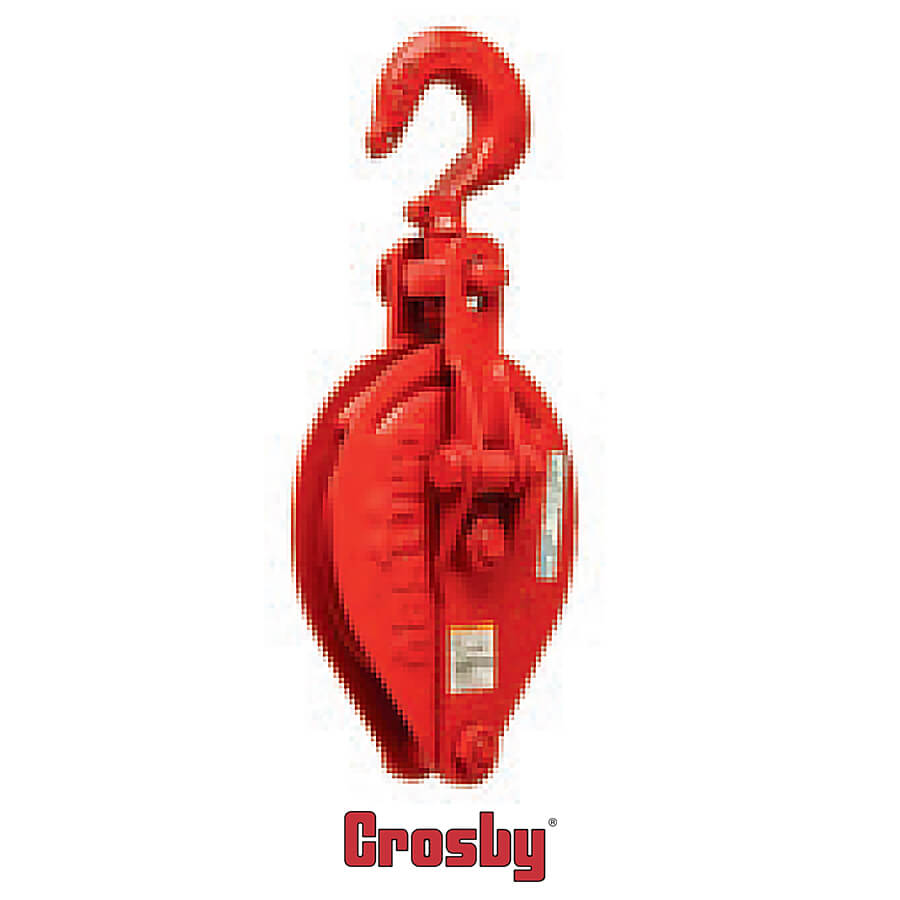

C-700 Snatch Blocks
-
-
- Unique locking device permits disengagement by simply folding hook.
- Formed steel side plates with capacity stamped permanently in place.
- Oil impregnated bronze bushings
- Can be furnished with SS-4055 hook latch.
-
C-700 Snatch Blocks
Sheave Diameter & Block No. | CERTEX Cat. Ref. No | Crosby Stock No. | Working Load Limit* (tons) | Wire Rope Size (in.) | Weight Each (lbs.) | Fitting |
6” 10611 | CX13-0286 | 260014 | 2 | 1/2 | 12.00 | Swivel Hook |
8” 10811 | CX13-0287 | 261013 | 3 | 5/8 | 18.60 | Swivel Hook |
* Ultimate Load is 3.5 times the Working Load Limit.
