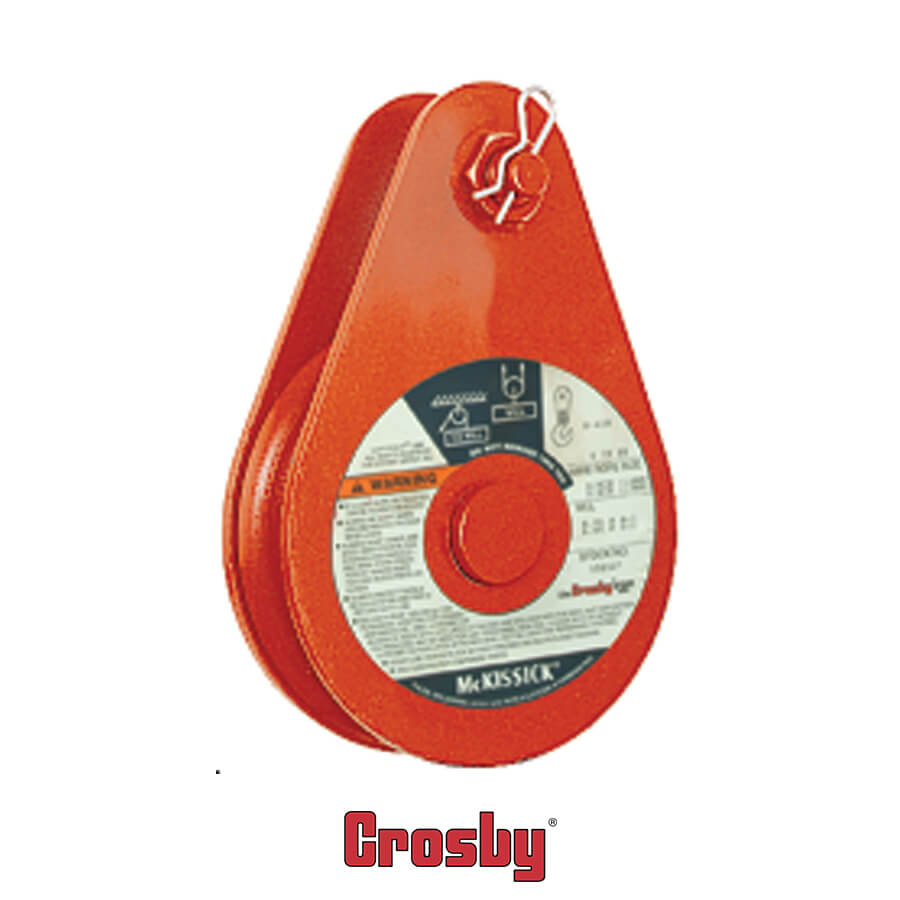

402 Tail Board
| Sheaving Diameter (in.) | Bearing Code | 402 Alloy with Tail Board | Wire Rope Size† (in.) | Working Load Limit* (metric tons) | Weight Each (lbs.) | |
| CERTEX Cat. Ref. No. | Crosby Stock No. | 416 Alloy with Hook | ||||
| 6 | BB RB |
CX13-0194 CX13-0195 |
302461 302470 |
3/4 | 12 | 15 |
| 6 | BB RB |
CX13-0196 CX13-0197 |
179238 179283 |
7/8 | 12 | 15 |
| 8 | BB RB |
CX13-0198 CX13·0199 |
302489 302498 |
3/4 | 12 | 21 |
| 8 | BB RB |
CX13·0200 CX13·0201 |
179318 179363 |
7/8 | 12 | 21 |
| 10 | BB RB |
CX13-0202 CX13-0203 |
302504 302513 |
3/4 | 12 | 29 |
| 10 | BB RB |
CX13-0204 CX13-0205 |
179434 179498 |
7/8 | 12 | 29 |
* Ultimate Load is 4 times the Working Load Limit.
† May be furnished in other wire rope sizes.
