UNC THREADS
Also Available in Metric

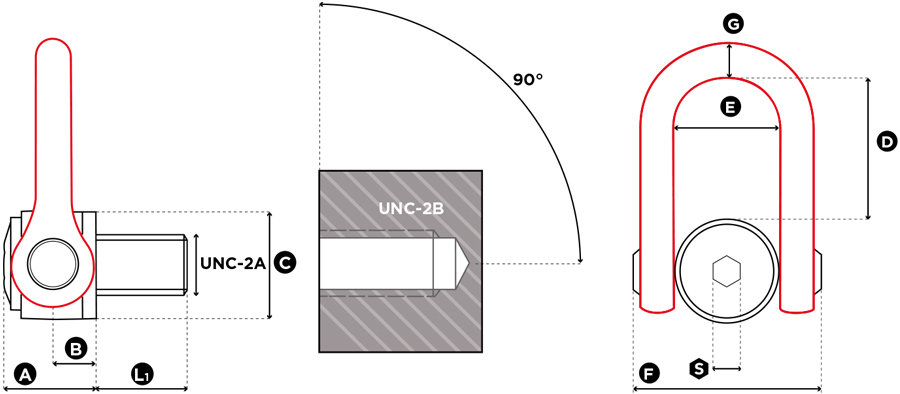

| Model Number | Diameter | SF 5:1 WLL (lbs) | SF 4:1 WLL (lbs) | Standard L1 (mm) | Torque (ft-lb) | Dimensions (mm) | Weight | ||||||||
| S | A | B | C | D | E | F | G | (kg) | (lbs) | ||||||
| DSS U 100 UP | UNC 1″-8 | 10,000 | 13,000 | 36 | 125 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,4 | 11.90 |
| DSS U 125 UP | UNC 1″ 1/4-7 | 15,000 | 19,000 | 45 | 200 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,4 | 11.90 |
| DSS U 138 UP | UNC 1″ 3/8-6 | 21,000 | 22,000 | 54 | 240 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,4 | 11.90 |
| DSS U 150 UP | UNC 1″ 1/2-6 | 22,000 | 27,000 | 54 | 240 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,4 | 11.90 |
| DSS U 175 UP | UNC 1″ 3/4-5 | 27,000 | 33,000 | 63 | 300 | 19 | 61 | 31 | 70 | 98 | 73 | 149 | 33 | 5,9 | 13.01 |
| DSS U 200 UP | UNC 2″-4,5 | 38,000 | 50,000 | 76 | 450 | 19 | 79 | 38 | 90 | 123 | 91 | 182 | 45 | 11,1 | 24.47 |
| DSS U 250 UP | UNC 2″ 1/2-4 | 48,500 | 55,000 | 90 | 450 | 19 | 79 | 38 | 95 | 123 | 91 | 182 | 45 | 12,2 | 26.90 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
