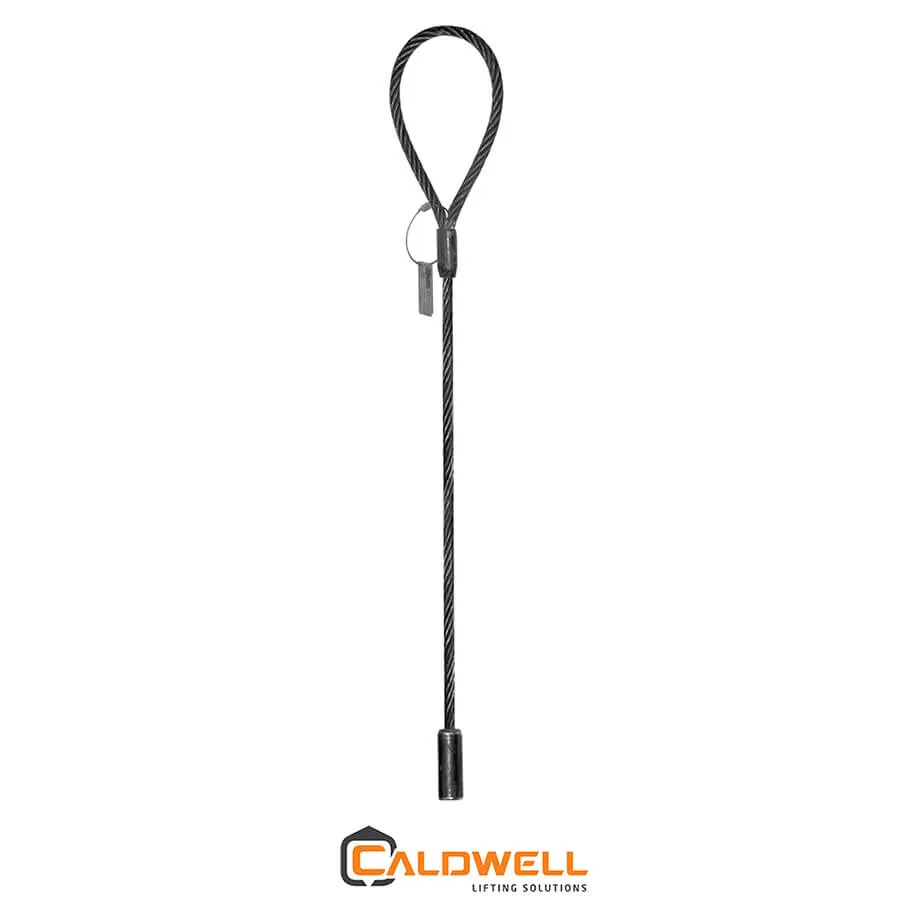

Caldwell “Tea Cup” Lifting Sling Option – Model LS

Caldwell

Features:

  • An efficient way to handle concrete water and sewer pipes.
  • The Caldwell “Tea Cup” Pipe Carrier will save you time and money.
  • Three sizes available, to handle from 3/4″ to 1-1/2″ cable, and lift up to 15 tons.
  • Designed and manufactured to ASME B30.20 and B30.9.

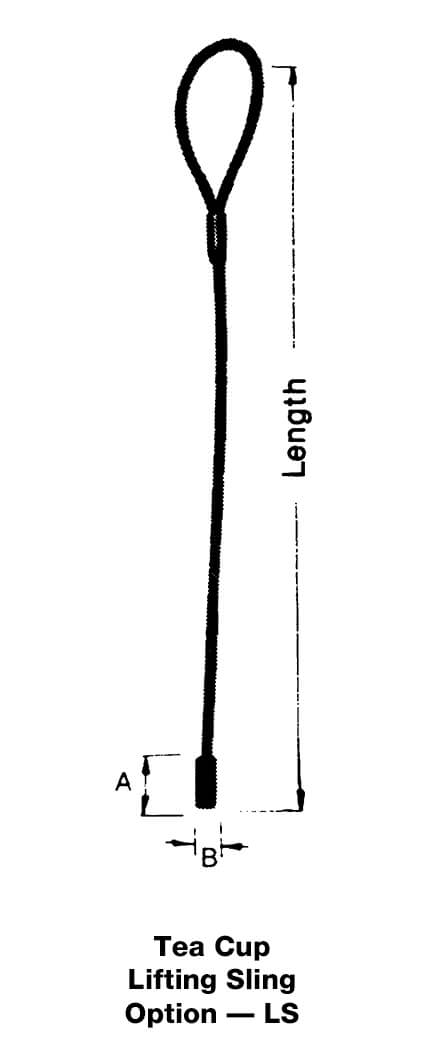

CERTEX Cat. Ref. No. Caldwell Model No. Sling Dia. (in.) Standard Length (ft.) After Swage Dim. (in.) WT. (lbs)
A B
CX10-0438 LS-3/4 3/4 5 3.25 1.55 9
CX10-0439 LS-7/8 7/8 5 3.86 1.80 14
CX10-0440 LS-1 1 5 4.36 2.05 19
CX10-0441 LS-1-1/8 1-1/8 5 4.81 2.30 26
CX10-0442 LS-1-1/4 1-1/4 5 5.42 2.56 33
CX10-0443 LS-1-1/2 1-1/2 5 6.52 3.00 52

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
