3M™ DBI-SALA® Reusable Standing Seam Roof Anchor – 2103675

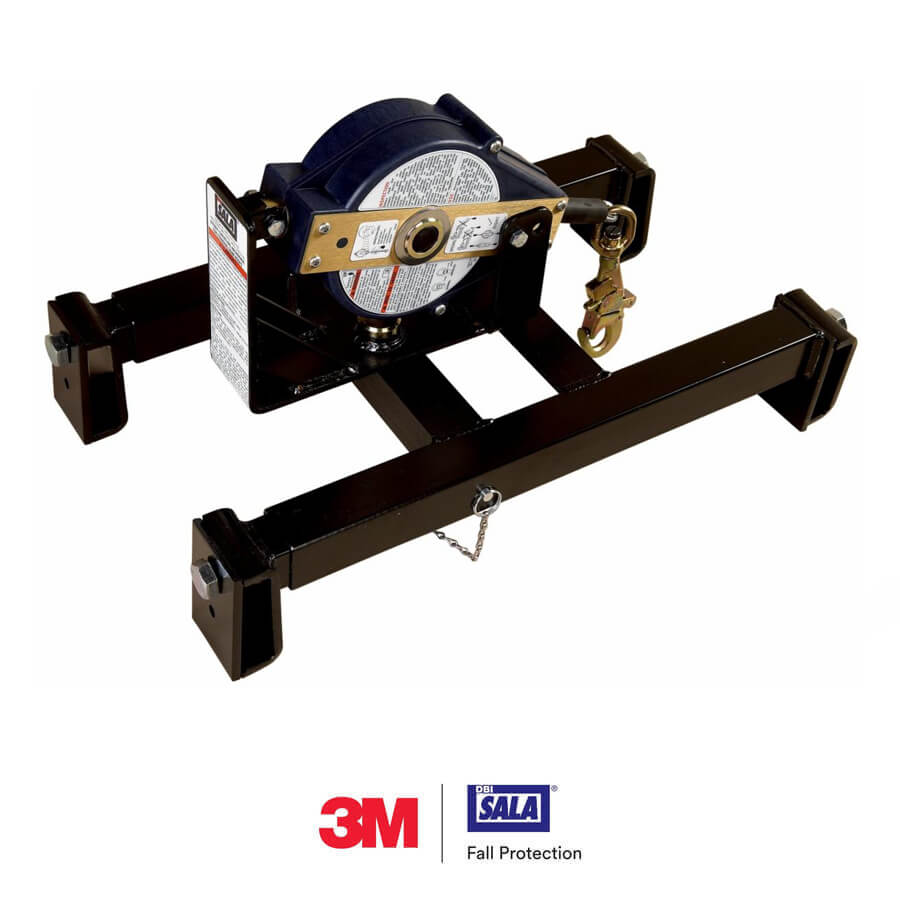

3M™ DBI-SALA® Reusable Standing Seam Roof Anchor - 2103675
  • Durable materials and hardware designed to help stand up to harsh working conditions
  • Compatible with various fall arrest systems, not compliant for use with Horizontal Lifelines
  • Suitable for use in general industrial and construction industries
  • Compact, lightweight design
  • Meets the requirements for 29 CFR OSHA 1910.140 and 29 CFR OSHA 1926.502

Anchor Install Type

Reusable

Attachment Type

Clamp

Brands

DBI-SALA®

Case Quantity

1

Connected Safety ID Equipped

No

Dimensions

26.40×15.00×12.60in

Install Type

Reusable

Material

Steel

Product Color

Black

Product Type

Reusable Standing Seam Roof Anchor

Recommended Industry

Construction, General Industrial, Mining, Oil & Gas

Specifications Met

OSHA 1910.140, OSHA 1926.502

Weight (Imperial)

48 lb.

Weight Capacity

310 lbs. (141 kg)

Weight Capacity (Imperial)

310 lb.

Weight Capacity (Metric)

141 kg

The 3M™ DBI-SALA® Reusable Standing Seam Roof Anchors are ideal for flat or sloped standing seam metal roofs. Its built-in, non-penetrating clamp design offers sturdy anchoring for various fall protection systems while also being both portable and reusable for multiple jobs. Installs to flat or sloped standing seam roofs. System clamps to standing seams without special tools, providing an anchorage point for an SRL. Built-in non-penetrating clamp design with four seam clamps allow for quick attachment without damaging the roof. Slide on the tube legs fit 12, 24, 30, 32 and 36 in. seam spacing. Portable and Reusable. Anchor can be removed and reinstalled.

Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.

  • Features corrosion-resistant, steel and aluminum construction for durability
  • This safety equipment is designed for use with additional personal protective equipment (PPE)
  • The lightweight anchor system installs in minutes and restricts damage the rooftop. Installs to flat or sloped standing seam roofs. System clamps to standing seams without special tools, providing an anchorage point for an SRL, including the 3M™ DBI-SALA® Smart Lock Self-Retracting Lifeline
  • Built-in non-penetrating clamp design with four seam clamps allow for quick attachment without damaging the roof
  • Slide on the tube legs fit 12,24, 30, 32 and 36 in. seam spacing (30.5, 61, 76.2, 81.3 and 91.4 cm)
  • Portable and Reusable. Anchor can be removed and simply reinstalled in a new location for added jobsite flexibility
