Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable.
They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.
|
Anchor Install Type |
Permanent & Reusable |
|
Attachment Type |
Screw |
|
Brands |
DBI-SALA® |
|
Case Quantity |
1 |
|
Connected Safety ID Equipped |
No |
|
Install Type |
Reusable or Permanent |
|
Material |
Zinc Plated Steel |
|
Product Color |
Silver |
|
Product Type |

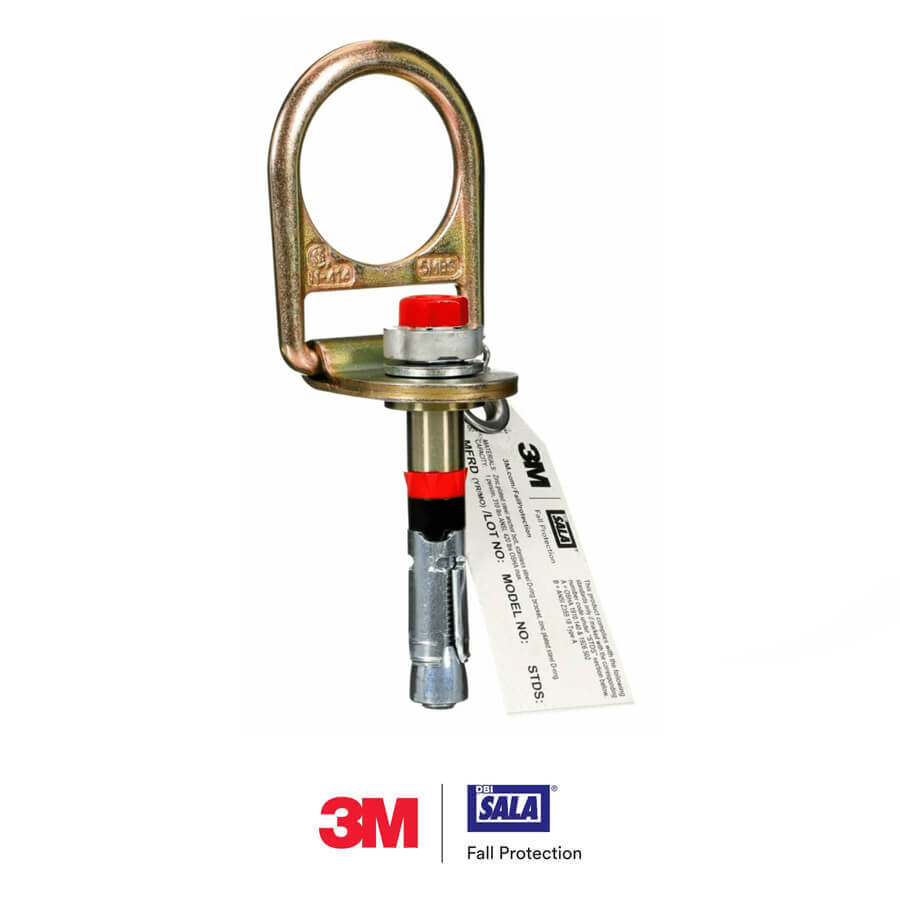

Concrete D-ring Anchor |
|
Recommended Industry |
Construction, General Industrial, Mining |
|
Specifications Met |
OSHA 1910.140, OSHA 1926.502 |
|
Weight (Imperial) |
1.2 lb. |
|
Weight Capacity |
310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA |
|
Weight Capacity (Imperial) |
310 lb. |
|
Weight Capacity (Metric) |
141 kg |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
Grade 8 bow shackle with safety bolt and wider shackle mouth Product details Productcode G-4263 Material bow and pin alloy steel, Grade 8, quenched and tempered Safety factor MBL equals 6 x WLL Finish hot dipped galvanized Temp. range -20°C up to +200°C Certification...
High load capacity, bow shackle (grade 8) with safety bolt and fixed nut for use under low temperatures Product details Productcode P-6011 Material bow and pin alloy steel, Grade 8, quenched and tempered Safety factor MBL equals 5 x WLL Finish shackle bow painted...
High load capacity, grade 8 bow shackle with safety bolt for use under low temperatures Product details Productcode P-6031 Material bow and pin alloy steel, Grade 8, quenched and tempered Safety factor MBL equals 5 x WLL Finish shackle bow painted silver, pin painted...
Grade 8 bow shackle with safety bolt and fixed nut for use under low temperatures Product details Productcode G-5143 Material bow and pin alloy steel, Grade 8, quenched and tempered Safety factor MBL equals 7 x WLL, for shackles with WLL 55 and 85 tons the MBL equals...
