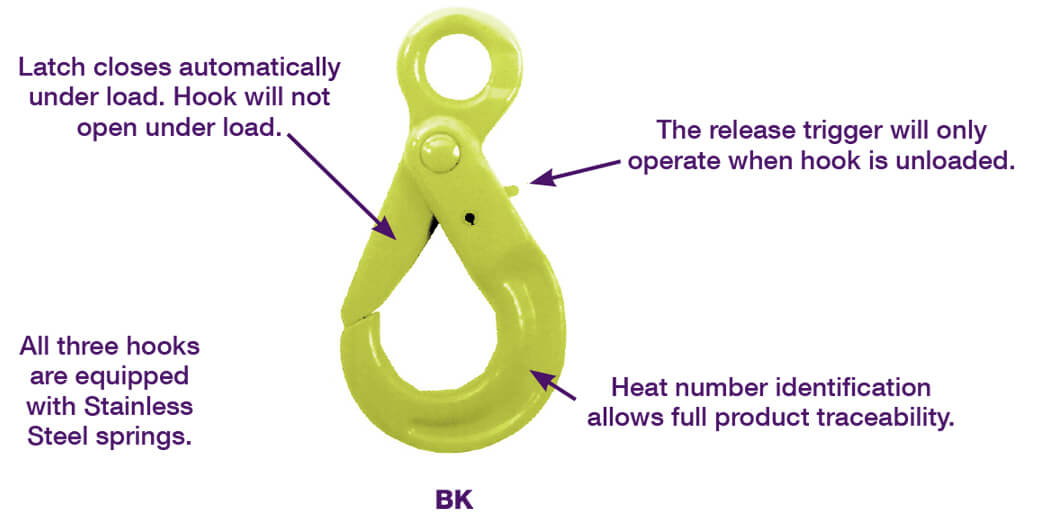

• Latch closes automatically under load. Hook will not open under load.
• All three hooks are equipped with Stainless Steel springs.
• The release trigger will only operate when hook is unloaded.
• Heat number identification allows full product traceability.

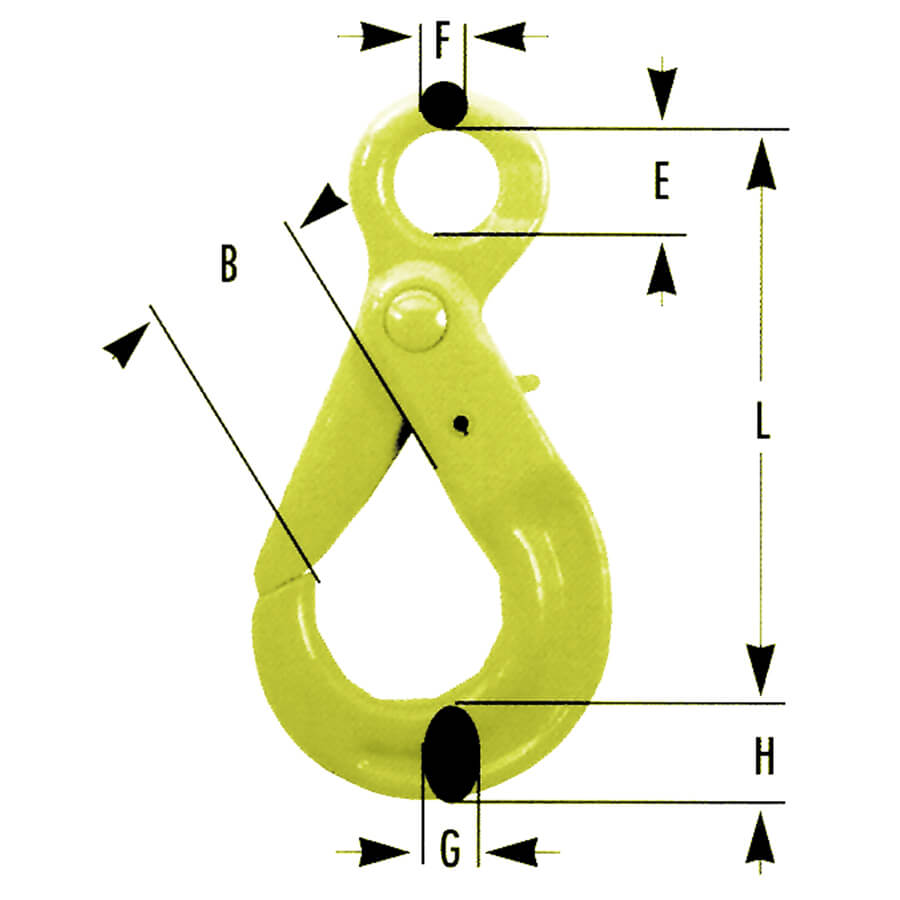

| CERTEX Cat. Ref. No. | GunneboJohnson Code | Chain Size | Grade | Working Load Limit *(Lbs) | Dimensions (Inches) | Weight Each (Lbs) | |||||
| L | B | E | F | G | H | ||||||
| CX06-0537 | BK-6-10 | 7/32 | 100 | 2,700 | 4.3 | 1.1 | .87 | .39 | .55 | .75 | .9 |
| CX06-0538 | BK-7/8-10 | 9/32 | 100 | 4,300 | 5.4 | 1.4 | .99 | .43 | .67 | .91 | 1.6 |
| CX06-0539 | BK-10-10 | 3/8 | 100 | 8,800 | 6.6 | 1.7 | 1.3 | .51 | .98 | 1.1 | 3.3 |
| CX06-0540 | BK-13-10 | 1/2 | 100 | 15,000 | 8.2 | 2.1 | 1.6 | .63 | 1.1 | 1.5 | 5.9 |
| CX06-0541 | BK-16-10 | 5/8 | 100 | 22,600 | 10.0 | 2.5 | 2.0 | .79 | 1.5 | 1.9 | 12.0 |
| CX06-0542 | BK-18/20-8 | 3/4 | 100 | 35,300 | 12.6 | 3.1 | 2.8 | .95 | 1.9 | 2.4 | 25.0 |
| CX06-0543 | BK-22-8 | 7/8 | 80 | 34,200 | 12.6 | 3.1 | 2.8 | .95 | 1.9 | 2.4 | 25.0 |
| CX06-0544 | BK-26-8 | 1 | 80 | 47,700 | 13.6 | 3.9 | 3.1 | 1.0 | 2.0 | 2.7 | 32.0 |
| CX06-0545 | BK-28-8 | 1 1/8 | 80 | 55,100 | 15.8 | 4.7 | 3.5 | 1.1 | 2.4 | 3.2 | 48.0 |
* Design factor 4:1 Proof tested and certified.
