| Specifications | |||||||||||

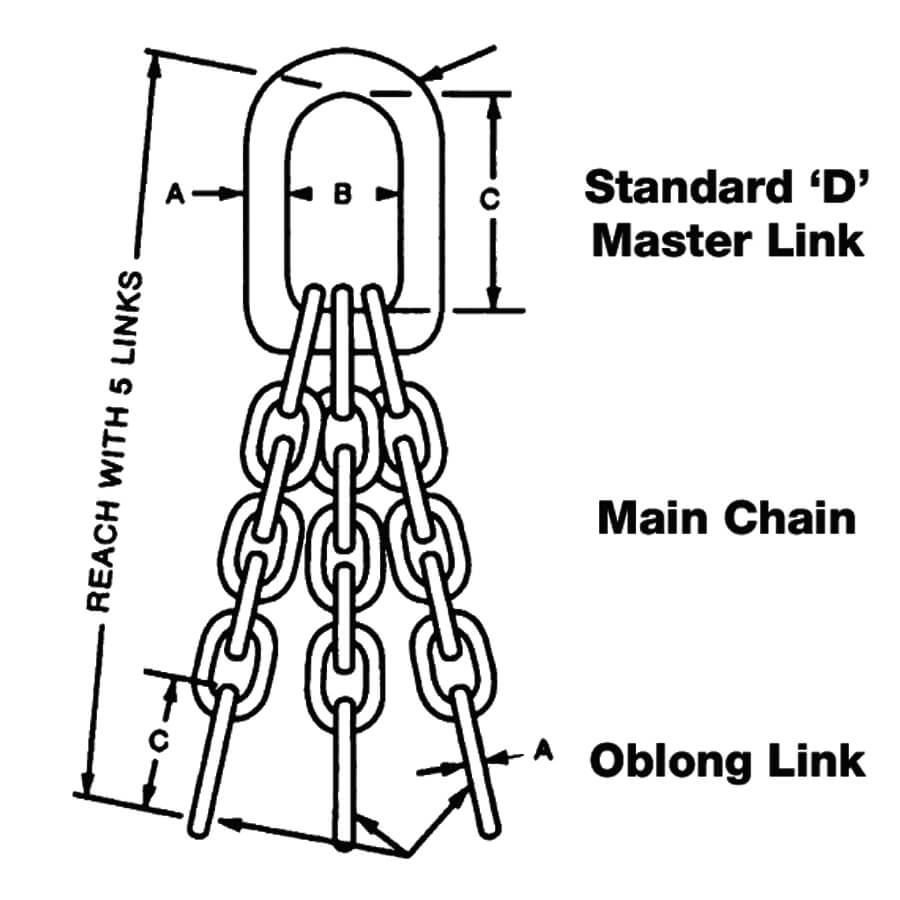

| CERTEX Cat. Ref. No. | Chain Size | Working Load Limit* Lbs. at 60° | Master Link | Oblong Link | 5 Link Reach In. | Magnet Diameter In. | |||||
| In. | mm | A Dia. Mtl. In. | B Inside Width In | C Inside Length In. | A Dia. Mtl. In | B Inside Width In | C Inside Length In. | ||||
| CX06-0263 | 5/8 | 16 | 47,000 | 1-3/4 | 6 | 10-1/2 | 3/4 | 2-1/8 | 6 | 32-1/2 | up to 40 |
| CX06-0264 | 3/4 | 20 | 73,500 | 2 | 6 | 10-1/2 | 7/8 | 2-1/8 | 6 | 35 | up to 45 |
| CX06-0265 | 7/8 | 22 | 88,900 | 2-1/8 | 6 | 10-1/2 | 1 | 2-1/8 | 6 | 36 | up to 48 |
| CX06-0266 | 1 | 26 | 123,900 | 2-1/4 | 6-1/2 | 11-1/4 | 1-1/4 | 2-3/4 | 7 | 40 | up to 60 |
| CX06-0267 | 1-1/4 | 32 | 187,800 | 2-1/2 | 6-1/2 | 12-3/4 | 1-1/2 | 2-3/4 | 7 | 45-1/2 | 60 and over |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
