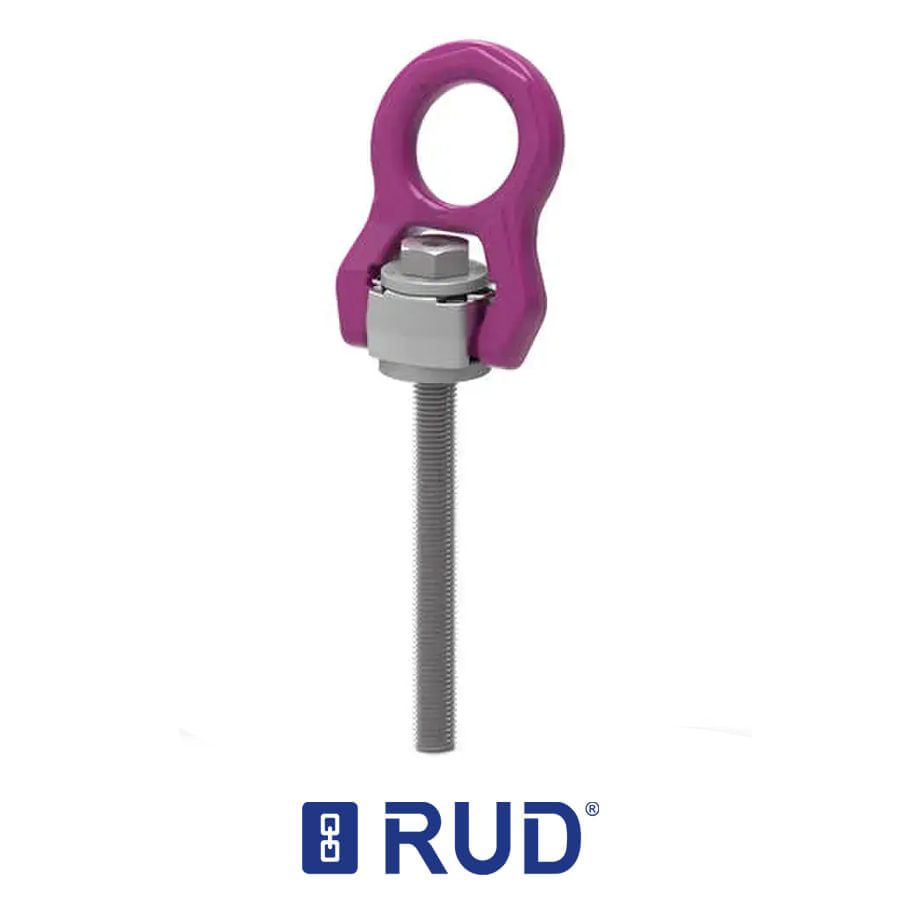

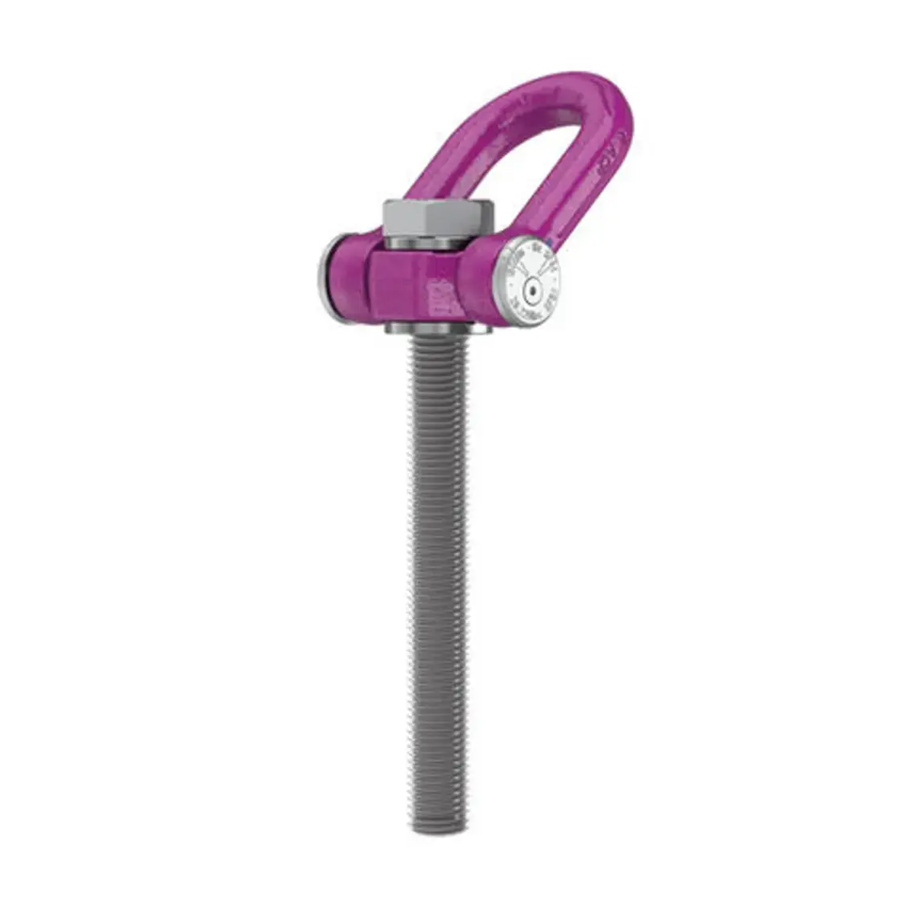

RUD ACP-TURNADO: UNC Thread, Vario Length

RUD ACP-TURNADO: UNC Thread, Vario Length

Product Features:

  • Large WLL range 1.35 t – 14 t
  • Higher WLL than comparable design sizes
  • Unique RUD spring mechanism
  • Stuck position of suspension ring avoided
  • No dangerous transverse loads
  • No kinks
  • Pivots 180°
  • Swivels 360°

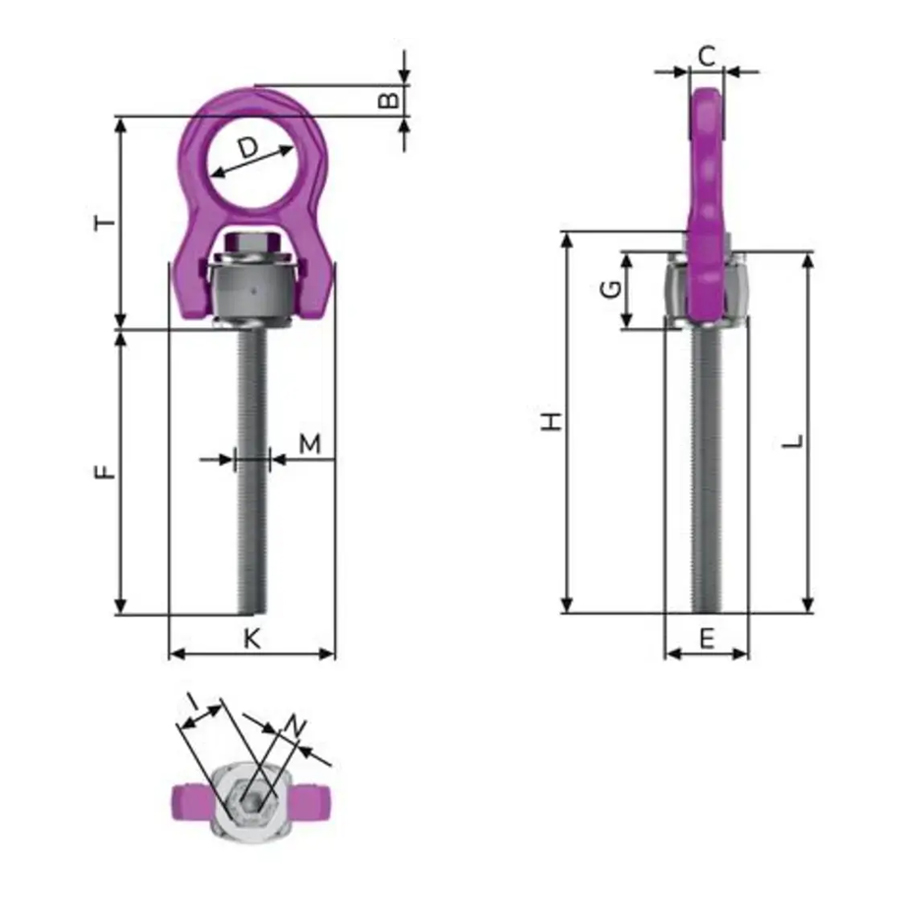

Model Number WLL (tons B (mm) C (mm) D (mm) E (mm) F Max (mm) F Min (mm) G (mm) H Max (mm) H Min (mm) I K (mm) L Max (mm) L Min (mm) M N (in.) Pitch T (mm In Stock Price
8600632 1/2 UNC 1.35 11 10.5 38 30 124 18 28 160 54 0.75 58 152 40 1/2″-13UNC 0.31 83 $
8600634 5/8-11NC 2.5 14 14 50 40 148 16 36 194 68 0.94 76 184 52 5/8″-11UNC 0.38 107 $
8600636 3/4-10 4 17 17 50 45 185 20 43.5 240 81 1.12 89 228 64 3/4″-10UNC 0.5 118 $
8600638 1-8 UNC 6.3 23 23 66 60 199 25 55 270 107 1.5 121 254 80 1″-8UNC 0.56 154 $
8600640 1 1/4-7 UNC 8 29 27 75 75 271 32 68.5 359 135 1.88 148 339 100 1 1/4″-7UNC 0.62 183 $
8600643 14 32 32 82 70 287 38 60 370 131 2.25 168 347 108 1 1/2″-6UNC 0.88 189 $

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
