APPLICATIONS
All cranes and performant lifting devices where non-rotating and high MBL ropes are required.
OVERVIEW
PROPERTIES

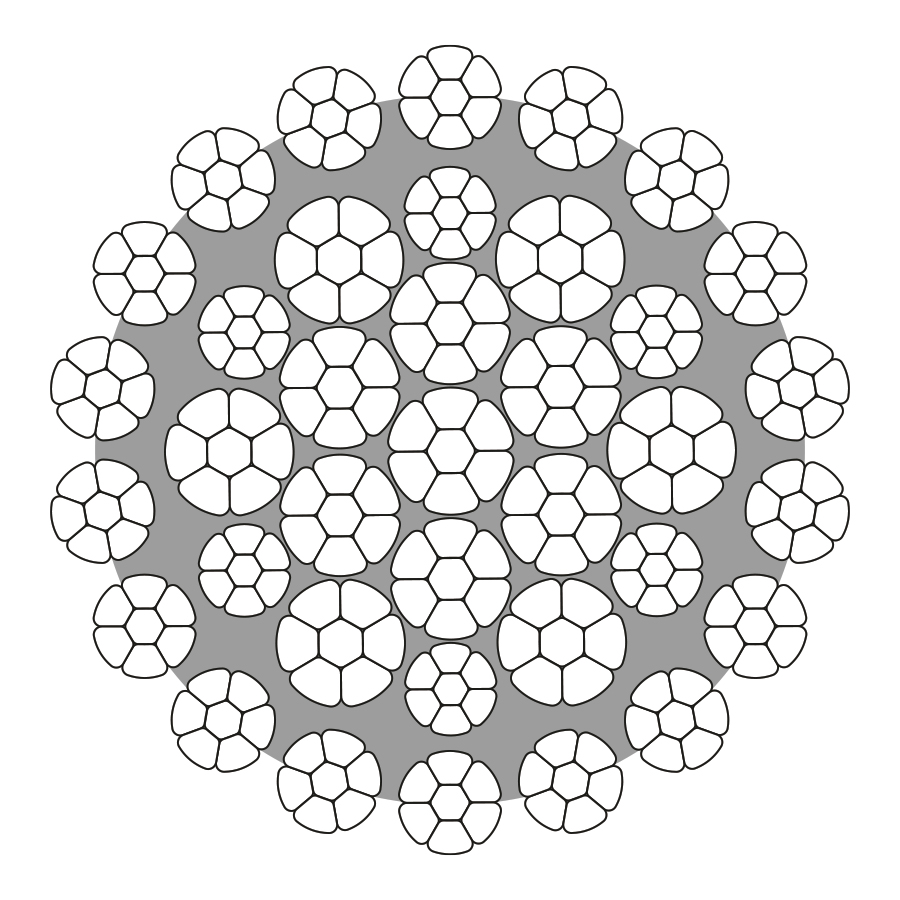

| RCN | Diameter range [mm] | Construction | Number of outer strands | Number of wires | Number of outer load bearing wires | Average fill factor | Average spin factor *N/mm² |
| 23–3 | 12,70 – 52 | 37xK7 | 18 | 259 | 126 | 0,716 | 0,85 (1960*) 0,81 (2160*) |
| 30 | 54 – 64 | 37xK19 | 18 | 710 | 342 | 0,726 | 0,83 (1960*) 0,79 (2160* |
| >31 | 66 – 70 | 37xK26 | 18 | 1092 | 468 | 0,714 | 0,81 (1960*) 0,78 (2160*) |
| nominal diameter | weight | minimum breaking force | |||||||||
| 1960 N/mm² | 2160 N/mm² | ||||||||||
| mm | inch | kg/m | lb/ft | kN | t [metric] | lbs | t [2000 lbs] | kN | t [metric] | lbs | t [2000 lbs] |
| 12,70 | 1/2 | 0,77 | 0,52 | 148,0 | 15,09 | 33.272 | 16,64 | 155,9 | 15,90 | 35.048 | 17,52 |
| 13 | 0,82 | 0,55 | 157,8 | 16,09 | 35.468 | 17,73 | 165,7 | 16,90 | 37.248 | 18,62 | |
| 14 | 0,95 | 0,64 | 183,3 | 18,69 | 41.198 | 20,60 | 192,5 | 19,63 | 43.266 | 21,63 | |
| 15 | 1,09 | 0,73 | 209,6 | 21,37 | 47.116 | 23,56 | 220,6 | 22,50 | 49.603 | 24,80 | |
| 15,88 | 5/8 | 1,20 | 0,81 | 230,0 | 23,45 | 51.706 | 25,85 | 241,0 | 24,58 | 54.179 | 27,09 |
| 16 | 1,25 | 0,84 | 239,4 | 24,41 | 53.820 | 26,91 | 251,4 | 25,64 | 56.521 | 28,26 | |
| 17 | 1,40 | 0,94 | 269,7 | 27,50 | 60.637 | 30,32 | 283,4 | 28,90 | 63.719 | 31,86 | |
| 18 | 1,57 | 1,06 | 302,5 | 30,85 | 68.015 | 34,01 | 317,7 | 32,40 | 71.428 | 35,71 | |
| 19 | 3/4 | 1,76 | 1,18 | 338,9 | 34,55 | 76.180 | 38,09 | 355,9 | 36,29 | 80.002 | 40,00 |
| 20 | 1,94 | 1,30 | 374,2 | 38,16 | 84.120 | 42,06 | 393,0 | 40,07 | 88.341 | 44,17 | |
| 21 | 2,13 | 1,43 | 412,2 | 42,03 | 92.659 | 46,33 | 432,9 | 44,14 | 97.309 | 48,65 | |
| 22 | 2,34 | 1,57 | 452,0 | 46,09 | 101.610 | 50,81 | 474,7 | 48,40 | 106.709 | 53,35 | |
| 22,23 | 7/8 | 2,37 | 1,59 | 458,0 | 46,70 | 102.962 | 51,48 | 481,0 | 49,05 | 108.133 | 54,07 |
| 23 | 2,56 | 1,72 | 494,8 | 50,46 | 111.236 | 55,62 | 519,6 | 52,99 | 116.818 | 58,41 | |
| 24 | 2,79 | 1,87 | 540,3 | 55,09 | 121.461 | 60,73 | 567,4 | 57,86 | 127.556 | 63,78 | |
| 25 | 3,04 | 2,04 | 587,1 | 59,87 | 131.985 | 65,99 | 616,6 | 62,87 | 138.608 | 69,30 | |
| 25,40 | 1 | 3,08 | 2,07 | 595,4 | 60,71 | 133.851 | 66,93 | 625,3 | 63,76 | 140.573 | 70,29 |
| 26 | 3,27 | 2,20 | 634,2 | 64,68 | 142.584 | 71,29 | 666,1 | 67,92 | 149.739 | 74,87 | |
| 27 | 3,54 | 2,38 | 683,6 | 69,70 | 153.670 | 76,84 | 717,9 | 73,20 | 161.382 | 80,69 | |
| 28 | 3,80 | 2,55 | 734,0 | 74,85 | 165.019 | 82,51 | 770,9 | 78,61 | 173.299 | 86,65 | |
| 28,58 | 1 1/8 | 3,98 | 2,67 | 768,3 | 78,34 | 172.721 | 86,36 | 806,8 | 82,27 | 181.376 | 90,69 |
| 29 | 4,07 | 2,73 | 790,0 | 80,56 | 177.599 | 88,80 | 824,4 | 84,07 | 185.335 | 92,67 | |
| 30 | 4,39 | 2,95 | 846,3 | 86,30 | 190.262 | 95,13 | 888,8 | 90,63 | 199.809 | 99,90 | |
| 31,75 | 1 1/4 | 4,84 | 3,25 | 930,0 | 94,83 | 209.072 | 104,54 | 975,0 | 99,42 | 219.189 | 109,59 |
| 32 | 4,98 | 3,34 | 959,6 | 97,85 | 215.730 | 107,87 | 1.007,8 | 102,76 | 226.556 | 113,28 | |
| 34 | 5,59 | 3,75 | 1.079,3 | 110,06 | 242.645 | 121,32 | 1.133,0 | 115,53 | 254.710 | 127,35 | |
| 34,93 | 1 3/8 | 5,94 | 3,99 | 1.146,8 | 116,94 | 257.811 | 128,91 | 1.202,0 | 122,57 | 270.220 | 135,11 |
| 36 | 6,31 | 4,24 | 1.221,5 | 124,56 | 274.607 | 137,30 | 1.282,8 | 130,81 | 288.386 | 144,19 | |
| 38 | 1 1/2 | 7,01 | 4,71 | 1.352,4 | 137,90 | 304.026 | 152,01 | 1.418,4 | 144,64 | 318.869 | 159,43 |
| 40 | 7,74 | 5,20 | 1.495,0 | 152,45 | 336.094 | 168,05 | 1.569,0 | 159,99 | 352.724 | 176,36 | |
| 41,28 | 1 5/8 | 8,30 | 5,58 | 1.602,1 | 163,37 | 360.166 | 180,08 | 1.682,5 | 171,57 | 378.241 | 189,12 |
| 42 | 8,52 | 5,72 | 1.645,2 | 167,76 | 369.850 | 184,92 | 1.730,0 | 176,41 | 388.913 | 194,46 | |
| 44 | 9,37 | 6,30 | 1.818,6 | 185,45 | 408.839 | 204,42 | 1.909,9 | 194,75 | 429.354 | 214,68 | |
| 44,45 | 1 3/4 | 9,51 | 6,39 | 1.838,6 | 187,49 | 413.334 | 206,67 | 1.928,2 | 196,62 | 433.477 | 216,74 |
| 46 | 10,33 | 6,94 | 1.995,7 | 203,50 | 448.651 | 224,33 | 2.095,8 | 213,72 | 471.165 | 235,58 | |
| 47,63 | 1 7/8 | 10,86 | 7,29 | 2.095,0 | 213,63 | 470.975 | 235,49 | 2.190,0 | 223,32 | 492.331 | 246,17 |
| 48 | 11,32 | 7,61 | 2.184,3 | 222,74 | 491.048 | 245,52 | 2.293,9 | 233,91 | 515.689 | 257,84 | |
| 50 | 12,03 | 8,09 | 2.331,7 | 237,77 | 524.194 | 262,10 | 2.451,2 | 249,95 | 551.042 | 275,52 | |
| 50,80 | 2 | 12,42 | 8,34 | 2.400,1 | 244,74 | 539.564 | 269,78 | 2.517,1 | 256,67 | 565.866 | 282,93 |
| 52 | 13,17 | 8,85 | 2.548,8 | 259,90 | 572.988 | 286,49 | 2.676,4 | 272,91 | 601.670 | 300,84 | |
| 54 | 2 1/8 | 14,34 | 9,63 | 2.731,2 | 278,51 | 614.007 | 307,00 | 2.868,3 | 292,48 | 644.818 | 322,41 |
| 56 | 15,33 | 10,30 | 2.854,0 | 291,03 | 641.605 | 320,80 | 3.049,0 | 310,91 | 685.442 | 342,72 | |
| 57,15 | 2 1/4 | 16,07 | 10,80 | 3.017,0 | 307,65 | 678.248 | 339,12 | 3.180,0 | 324,27 | 714.892 | 357,45 |
| 58 | 16,49 | 11,08 | 3.071,0 | 313,15 | 690.388 | 345,19 | 3.261,0 | 332,53 | 733.102 | 366,55 | |
| 60 | 17,78 | 11,95 | 3.293,0 | 335,79 | 740.296 | 370,15 | 3.500,0 | 356,90 | 786.831 | 393,42 | |
| 60,33 | 2 3/8 | 17,78 | 11,94 | 3.335,0 | 340,08 | 749.738 | 374,87 | 3.520,0 | 358,94 | 791.327 | 395,66 |
| 62 | 18,74 | 12,59 | 3.500,0 | 356,90 | 786.831 | 393,42 | 3.705,0 | 377,80 | 832.917 | 416,46 | |
| 63,50 | 2 1/2 | 19,66 | 13,21 | 3.655,0 | 372,71 | 821.677 | 410,84 | 3.870,0 | 394,63 | 870.010 | 435,01 |
| 64 | 20,20 | 13,57 | 3.894,0 | 397,08 | 875.406 | 437,70 | 4.018,0 | 409,72 | 903.282 | 451,64 | |
| 66 | 21,19 | 14,24 | 3.900,0 | 397,69 | 876.755 | 438,38 | 4.135,0 | 421,65 | 929.585 | 464,79 | |
| 66,68 | 2 5/8 | 21,34 | 14,34 | 3.910,0 | 398,71 | 879.003 | 439,50 | 4.150,0 | 423,18 | 932.957 | 466,48 |
| 68 | 22,26 | 14,96 | 4.100,0 | 418,08 | 921.716 | 460,86 | 4.354,0 | 443,98 | 978.818 | 489,41 | |
| 70 | 2 3/4 | 23,78 | 15,98 | 4.322,0 | 440,72 | 971.624 | 485,81 | 4.646,0 | 473,76 | 1.044.462 | 522,23 |
