Liberty 3CP15-AF5

Liberty 3CP15-AF5

Capstan Winch — 3CP1S-AFS / 3CP1M-AFS (Swivel Mount / Fixed Mount).

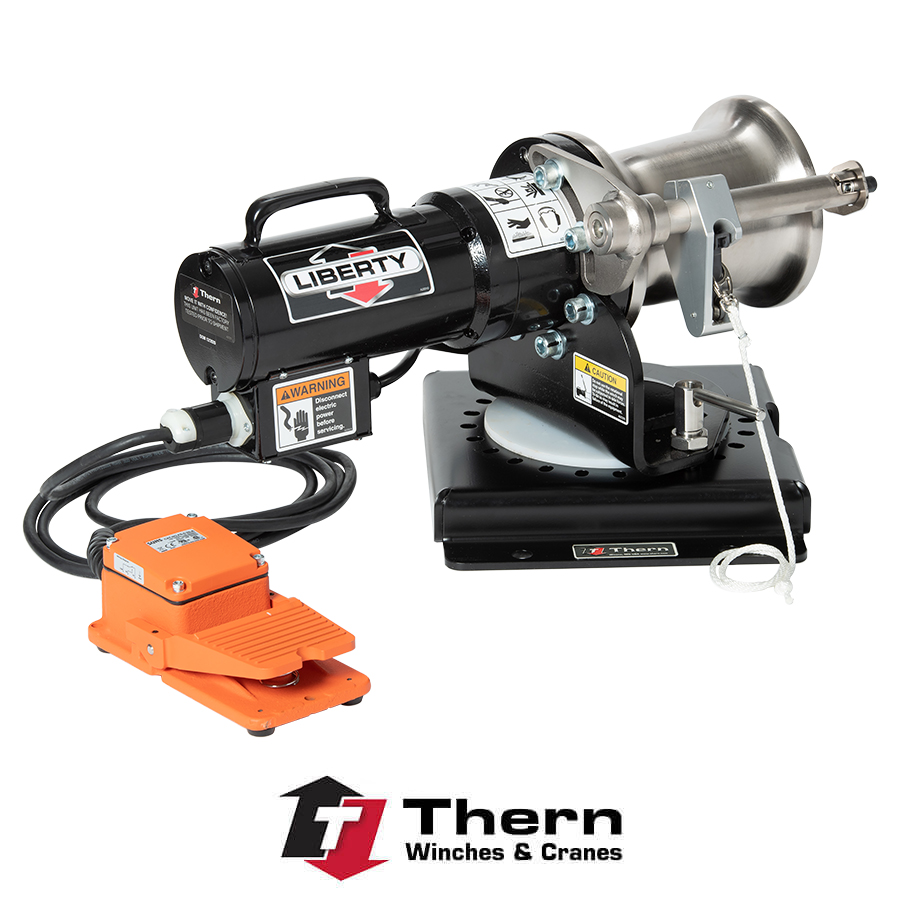

PORTABLE CAPSTAN WINCH W/ SWIVEL BASE
The Thern Liberty® Series capstan winch with integral swivel base delivers portable strength for lifting, pulling, and tensioning at almost any angle. More importantly, quiet operation enhances team communication for increased productivity. Among other uses, it’s perfect for elevator shaft and cell tower construction projects. The powder-coat finish and corrosion-resistant components ensure dependable operation for many years.

Quick Facts

  • Up to 2,000 lb Capacity (900 kg)
  • Quiet Operation
  • Extended Duty Cycle
  • Extremely Portable
  • Enhanced Safety Features
  • Increased Productivity
  • Maintenance-Free
  • Industry-Leading Warranty

Series Models

  • 3CP1S-AFS
  • 3CP1M-AFS
  • 3CP2S-AFS

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Series Imperial
Maximum
Capacity		 Rope
Diameter
Range**		 Maximum
Line Speed Range***		 Rated
Current
Draw		 Input
Voltage		 Ship
Weight		 Ambient
Operating
Temperature
Range		 Duty
Cycle		 Mount
Type
3CP1M-AFS 1,000 lbs 1/2-3/4 in 35- 50 fpm 15amp 115V/l Phase
/50-60Hz		 64 1bs -4 °F-
+105 °F		 20 mins
full load		 Fixed
3CP1S-AFS 1,000 lbs 1/2-3/4 in 35- 50 fpm 15amp 115V/l Phase
/50-60Hz		 76 1bs -4 °F-
+105 °F		 20 mins
full load		 Swivel
3CP2S-AFS 2,000 lbs 1/2-3/4 in 13-20 fpm 15amp 115V/l Phase
/50-60Hz		 84 lbs -4 °F-
+105 °F		 20 mins
full load		 Swivel



Series Metric
Maximum
Capacity		 Rope
Diameter
Range**		 Maximum
Line Speed Range***		 Rated
Current
Draw		 Input
Voltage		 Ship
Weight		 Ambient
Operating
Temperature
Range		 Duty
Cycle		 Mount
Type
3CP1M-AFS 450 kg 13-19 mm 11-15 mpm 15amp 115V/l Phase
/50-60Hz		 29 kg -20 °C-
+40 °F		 20 mins
full load		 Fixed
3CP1S-AFS 450 kg 13-19 mm 11-15 mpm 15amp 115V/l Phase
/50-60Hz		 34 kg -20 °C-
+40 °F		 20 mins
full load		 Swivel
3CP2S-AFS 900 kg 13-19 mm 4-6mpm 15amp 115V/l Phase
/50-60Hz		 38 kg -20 °C-
+40 °F		 20 mins
full load		 Swivel

*Thern’s 3CP1M-AFS winch hos a maximum noise level of 80 dBA, averaging 10 dBA less than the competit ion, when measured at a distance of approximately three feet under sim ilar condit ions.
**Synthetic rope only Available for purchase through Thern.
***Load dependent.

Premium Motor with Handle
Premium motor offers quiet operation (80 dBA)* enhancing clear communication between operators. UL- Recognized motor.
*Thern’s 3CP1S-AFS winch has a maximum noise level of 80 dBA, averaging 10 dBA less than the competition when measured at a distance of approximately three feet under similar conditions.

Foot Switch Control
Foot switch-controlled operation enhances productivity and safety. IP65, NEMA 4-rated sealed foot switch allows outdoor use..

Integral Rope Lock
Rope lock prevents unintentional drops to enhance safety. Adjustable rope lock accommodates various line exit angles and operator heights.

Durable Swivel Frame with Integral Lock
Adjustable rotation in 15° increments to align loads and lock securely with swivel stop.
Lightweight, engineered design and steel construction enhances portability. Powder-coated steel finish resists wear and promotes durability.

Integral Rope Keep
Spring-loaded rope keep helps prevent accidental removal of hand line from drum to enhance safety.

Engineered Drum Design
Keeps load line from moving during operation, enhancing productivity. Nickel-plated steel construction for optimum performance and durability.



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
