3/4, 1, 1 1/2, 2, 2 3/4, 3, 6, and 9 Ton capacity
The LB Series of lever hoists offers a low headroom, compact design that is perfect for use in tight quarters. Regarded as the best lever hoist in the industry, our LB is recommended for use in heavy-duty construction work, mining, manufacturing, shipbuilding and day-to-day maintenance and repair.
| Cap. (Tons) | CERTEX Cat. Ref. No. | Harrington Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

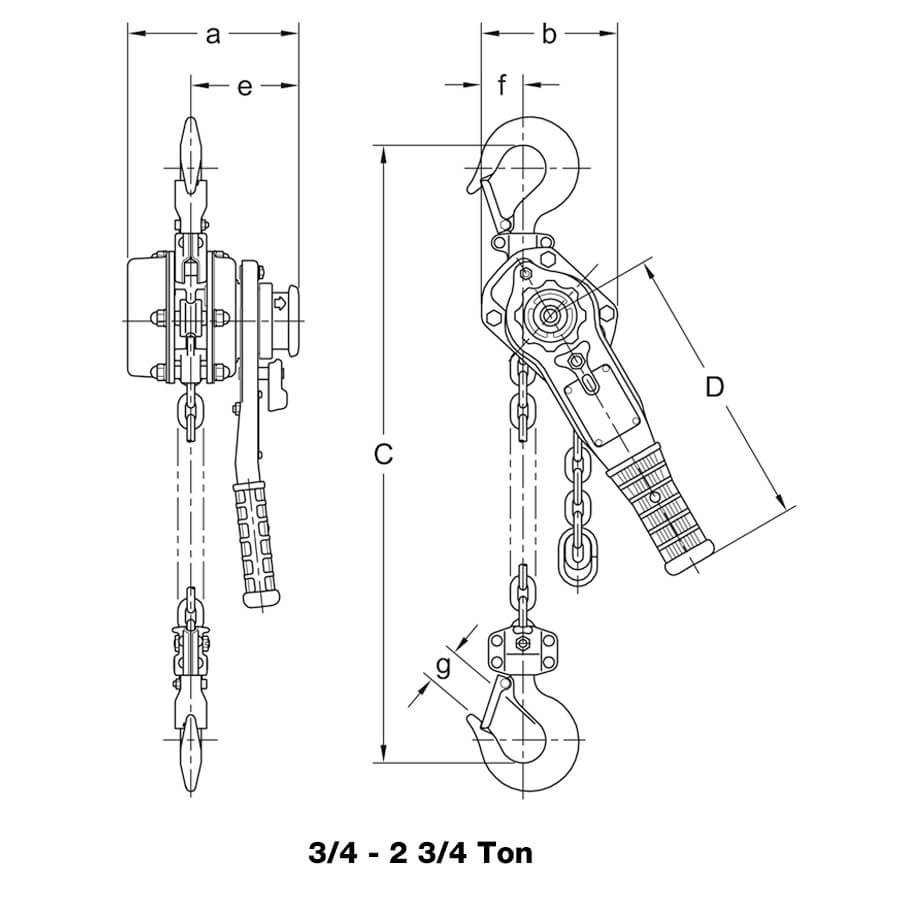

| 3⁄4 | CX11-0415 | LB008 | 11.0 | 5 | 54 (36) | 5.7 | 4.7 | 9.6(14.4) | 3.8 | 1.6 | 0.9 | 5.6 x 1 | 13 | 13 | 0.5 |
| 1 | CX11-0416 | LB010 | 11.8 | 5 | 72 (46) | 5.7 | 4.7 | 9.6(14.4) | 3.8 | 1.6 | 1.1 | 5.6 x 1 | 13 | 14 | 0.5 |
| 1 1⁄2 | CX11-0417 | LB015 | 13.2 | 5 | 64 (45) | 6.3 | 5.0 | 10.4(14.4) | 3.9 | 1.5 | 1.3 | 7.1 x 1 | 18 | 18 | 0.7 |
| 2 | CX11-0418 | LB020 | 14.8 | 5 | 59 (42) | 6.8 | 5.9 | 10.4(14.4) | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| 2 3⁄4 | CX11-0540 | LB028 | 14.8 | 5 | 81 (57) | 6.8 | 5.9 | 10.4(14.4) | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |

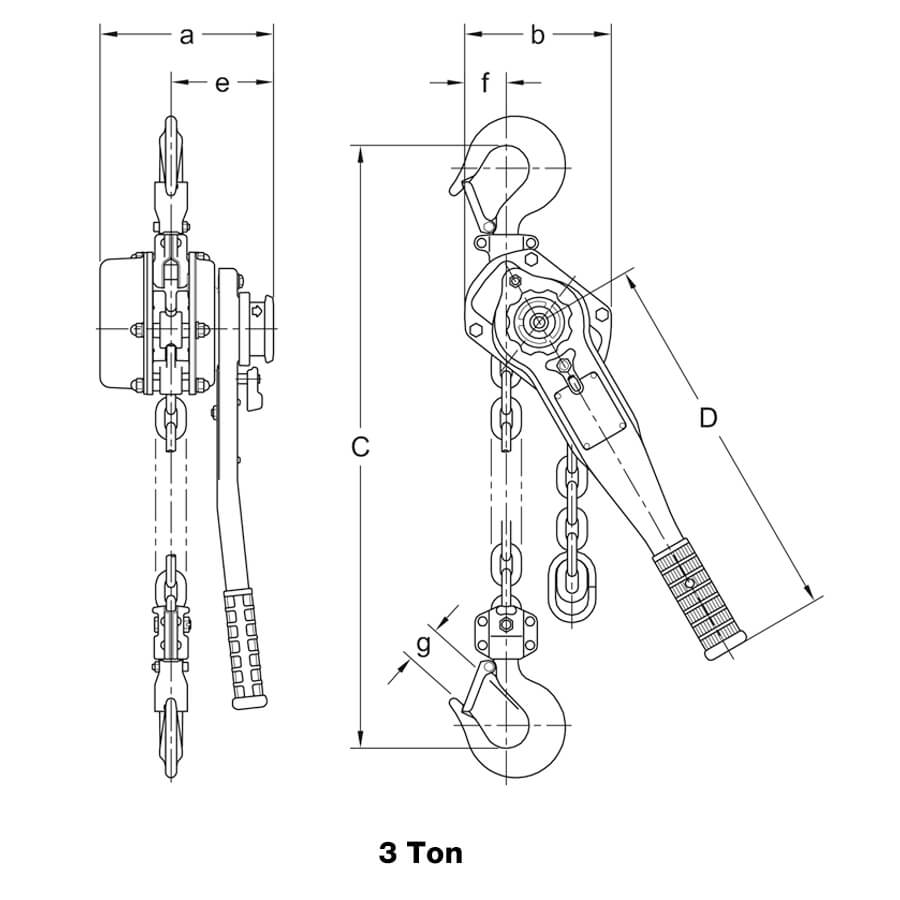

| 3 | CX11-0419 | LB030 | 15.6 | 5 | 69 | 7.5 | 6.3 | 16.3(16.9) | 4.4 | 1.8 | 1.5 | 10.0 x 1 | 33 | 35 | 1.5 |

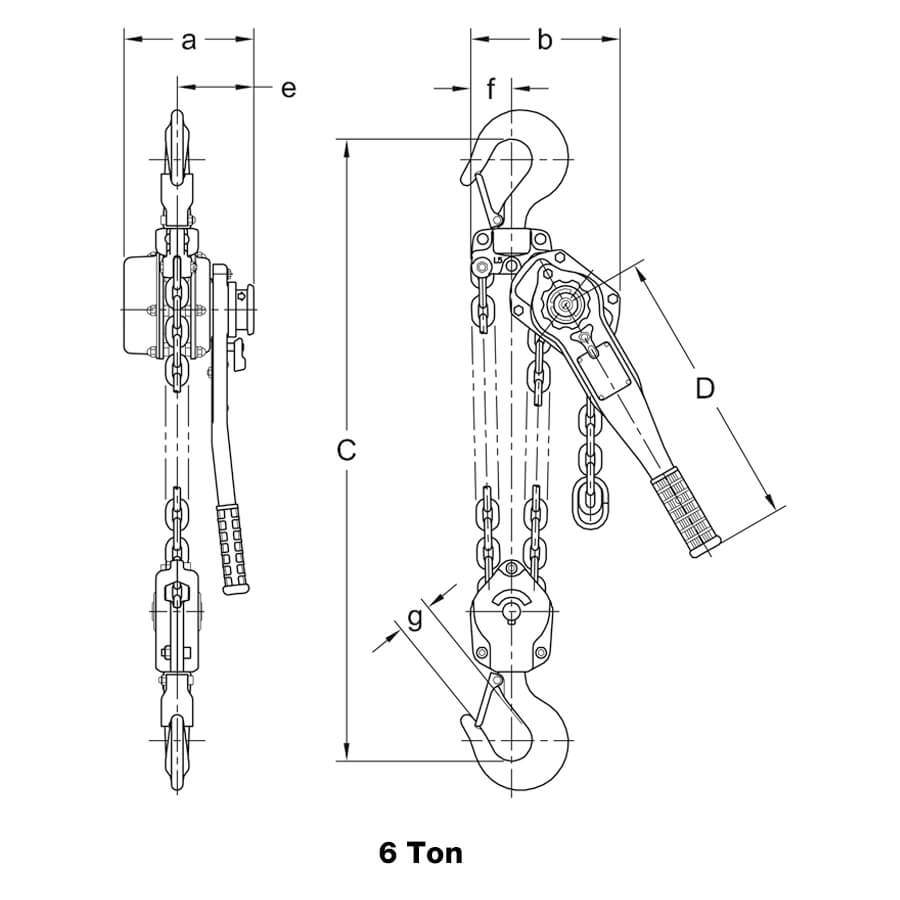

| 6 | CX11-0420 | LB060 | 21.3 | 5 | 72 | 7.5 | 8.5 | 16.3(16.9) | 4.4 | 2.3 | 2.0 | 10.0 x 2 | 57 | 60 | 3.2 |

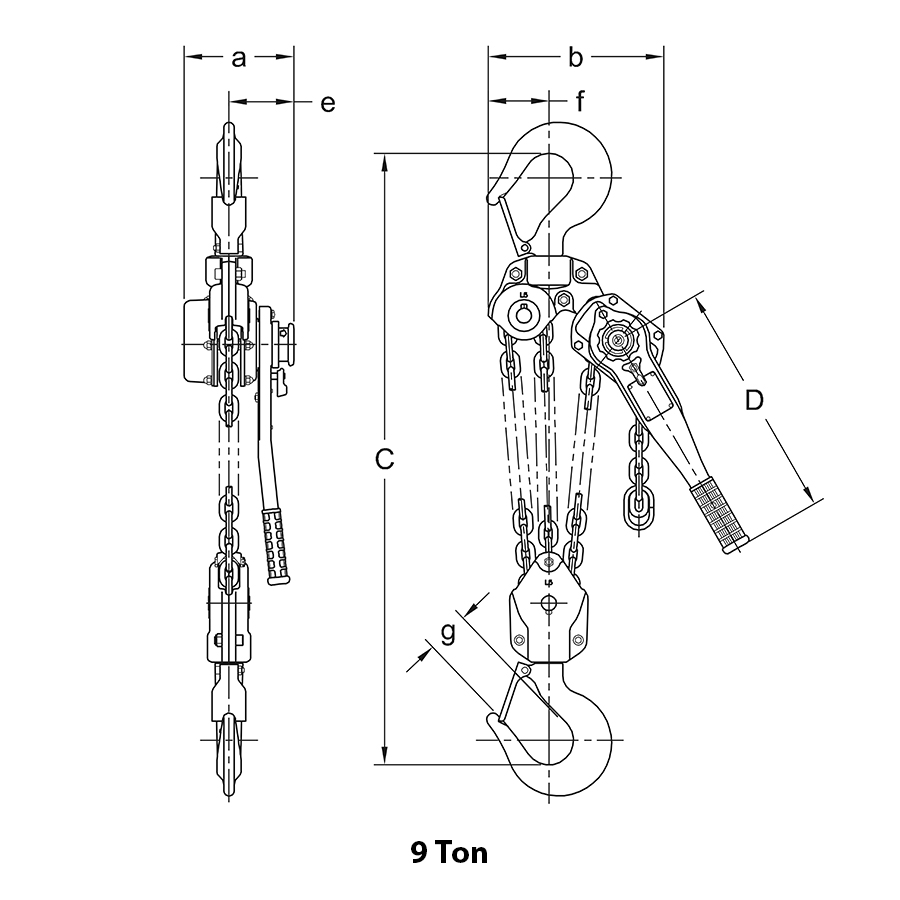

| 9 | CX11-0421 | LB090 | 26.8 | 5 | 78 | 7.5 | 12.0 | 16.3(16.9) | 4.4 | 4.1 | 2.9 | 10.0 x 3 | 88 | 93 | 4.7 |
*Figures in parentheses are for hoists with the optional load limit warning handle
• Rugged, all-steel construction that actually weighs less than comparable aluminum models.
• Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces. Includes two brake pawls for additional reliability.
• Enjoy protection against dirt and moisture with a totally enclosed brake mechanism.
• Ensure long life with machined, heat-treated, split load double reduction gears.
• Operate in close quarters with short steel handle and 15-degree recovery strokes.
• Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load.
• Equipped with standard rubber grip for non-slip operation.
• Load limit warning handle
• Top hook extender
• Point load hook
• Inspection hook
• Bullard® and Shur-Loc® hooks
• 5-foot lift is standard, 10-, 15- and 20-foot lifts also stocked; nonstandard lifts available as well.
• Grade 100 heat-treated load chain is nickel plated for corrosion resistance.
• Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads. Top and bottom hooks rotate 360°.
• Test certificate verifies that every hoist has been factory load tested to 125% of rated capacity in accordance with ASME B30.21 requirements.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
