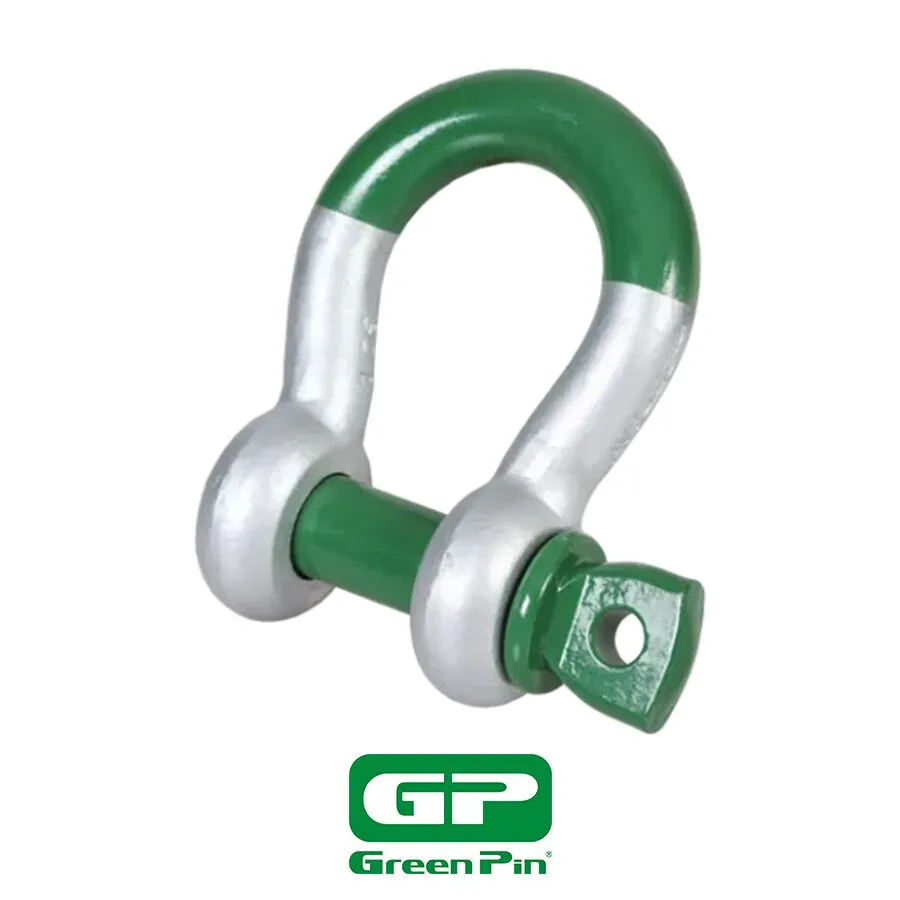

Grade 8 bow shackle with screw pin
Productcode
G-5261
Material
bow and pin alloy steel, Grade 8, quenched and tempered
Safety factor
MBL equals 5 x WLL
Finish
hot dipped galvanized
Temp. range
-20°C up to +200°C
Certification
2.1
2.2
3.1
MTCa
CE
ABS PDA
ABS MA
Standard
ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, Grade B
| Article code | working load limit (ton) | Net weight (kg) | diameter bow (mm) A  |
diameter pin (mm) B |
diameter eye (mm) C |
width eye (mm) D |
width inside (mm) E |
length inside (mm) F |
width bow (mm)G |
length (mm) H |
length bolt (mm) I |
width (mm) J |
Net weight (KG) | |
 |
SUGHBB13 | 3,3 | 0.36 | 13,5 | 16 | 34 | 13 | 22 | 51 | 32 | 90 | 73 | 59 | 0.36 |
|
SUGHBB16 | 5 | 0.63 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 89 | 75 | 0.63 |
|
SUGHBB19 | 7 | 1.01 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 103 | 89 | 1.01 |
|
SUGHBB22 | 9,5 | 1.50 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 119 | 102 | 1.50 |
|
SUGHBB25 | 12,5 | 2.21 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 137 | 118 | 2.21 |
|
SUGHBB28 | 15 | 3.16 | 28 | 32 | 67 | 28 | 47 | 108 | 75 | 186 | 153 | 131 | 3.16 |
|
SUGHBB32 | 18 | 4.31 | 32 | 35 | 73 | 32 | 51 | 115 | 83 | 201 | 170 | 147 | 4.31 |
|
SUGHBB35 | 21 | 5.58 | 35 | 38 | 79 | 35 | 57 | 133 | 92 | 227 | 186 | 162 | 5.58 |
|
SUGHBB38 | 30 | 7.43 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 203 | 175 | 7.43 |
|
SUGHBB45 | 40 | 12.5 | 45 | 50 | 104 | 45 | 74 | 178 | 126 | 300 | 243 | 216 | 12.5 |
|
SUGHBB57 | 55 | 17.2 | 57 | 57 | 119 | 57 | 83 | 197 | 138 | 341 | 286 | 252 | 17.2 |
|
SUGHBB70 | 85 | 37.6 | 70 | 70 | 145 | 70 | 105 | 260 | 180 | 437 | 354 | 320 | 37.6 |
| Article code | Net weight (lbs) | diameter bow (inch) A |
diameter pin (inch) B |
diameter eye (inch) C |
width eye (inch) D |
width inside (inch) E |
length inside (inch) F |
width bow (inch)G |
length (inch) H |
length bolt (inch) I |
width (inch) J |
Net weight (LB) | |
|
SUGHBB13 | 0.79 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 17/32 | 2 7/8 | 2 5/16 | 0.79 |
|
SUGHBB16 | 1.38 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 1/2 | 2 15/16 | 1.38 |
|
SUGHBB19 | 2.22 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 1/16 | 3 1/2 | 2.22 |
|
SUGHBB22 | 3.31 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 4 11/16 | 4 1/32 | 3.31 |
|
SUGHBB25 | 4.86 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 13/32 | 4 21/32 | 4.86 |
|
SUGHBB28 | 6.97 | 1 1/8 | 1 1/4 | 2 5/8 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 5/16 | 6 1/32 | 5 5/32 | 6.97 |
|
SUGHBB32 | 9.49 | 1 1/4 | 1 3/8 | 2 7/8 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 6 11/16 | 5 25/32 | 9.49 |
|
SUGHBB35 | 12.3 | 1 3/8 | 1 1/2 | 3 1/8 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 7 5/16 | 6 3/8 | 12.3 |
|
SUGHBB38 | 16.4 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 8 | 6 7/8 | 16.4 |
|
SUGHBB45 | 27.7 | 1 3/4 | 2 | 4 3/32 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 9 9/16 | 8 1/2 | 27.7 |
|
SUGHBB57 | 37.8 | 2 | 2 1/4 | 4 11/16 | 2 1/4 | 3 9/32 | 7 3/4 | 5 7/16 | 13 7/16 | 11 1/4 | 9 29/32 | 37.8 |
|
SUGHBB70 | 82.9 | 2 1/2 | 2 3/4 | 5 23/32 | 2 3/4 | 4 1/8 | 10 1/4 | 7 3/32 | 17 7/32 | 13 15/16 | 12 19/32 | 82.9 |
The Green Pin Super® Bow Shackle SC is a grade 8 bow shackle with screw pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. Handling of the Green Pin Super® Bow Shackle SC is easier due to its smaller size and weight (with an equal working load limit when compared to non-Super products). Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized because the chamber in the shackle eye hides the screw thread. The Green Pin Super®Bow Shackle SC is available in a range with a working load limit from 3.3 up to 85t.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
