• Complete with kernmantle rope lifeline assembly with a tensioning device for ease-of-use
• Two 6’ (1.8m) tie-off adaptors are included to anchor the system to a structure
Please note: See product instruction manuals for complete clearance information or different user scenarios.
| Sayfline™ Systems | |
|---|---|
| 7600502 | 20’ (6m) long |
| 7600503 | 30’ (9m) long |
| 7600504 | 40’ (12m) long |
| 7600505 | 50’ (15m) long |
| 7600506 | 60’ (18m) long |
| 7600507 | 70’ (21m) long |
| 7600508 | 80’ (24m) long |
| 7600509 | 90’ (27m) long |
| 7600510 | 100’ (30m) long |
| Synthetic Sayfline™ Clearance Chart | ||||
|---|---|---|---|---|
| Span Length | 1 User 6′ (1.8m) Lanyard | 2 Users 6′ (1.8m) Lanyard | 1 User SRL | 2 User SRL |
| 0-10′ (3m) | 19’-1” (5.7m) | 19’-5” (5.8m) | 7’-11” (2.4m) | 8’-11” (2.7m) |
| 10′-20′ (3-6m) | 19’-5” (5.8m) | 21’-5” (6.4m) | 8’-5” (2.5m) | 10’-3” (3.1m) |
| 20′-30′ (6-9m) | 19’-9” (5.9m) | 23’-4” (7m) | 8’-10” (2.7m) | 11’-6” (3.5m) |
| 30′-40′ (9-12m) | 21’-3” (6.4m) | 25’-9” (7.7m) | 9’-4” (2.8m) | 12’-9”(3.8m) |
| 40′-50′ (12-15m) | 22’-6” (6.8m) | 27’-11” (8.4m) | 11’-3” (3.4m) | 15’-6” (4.7m) |
| 50′-60′ (15-18m) | 23’-10” (7.2m) | 30’-2” (9.1m) | 13’-2” (4m) | 18’-3” (5.5m) |
(required above lower level or obstruction)

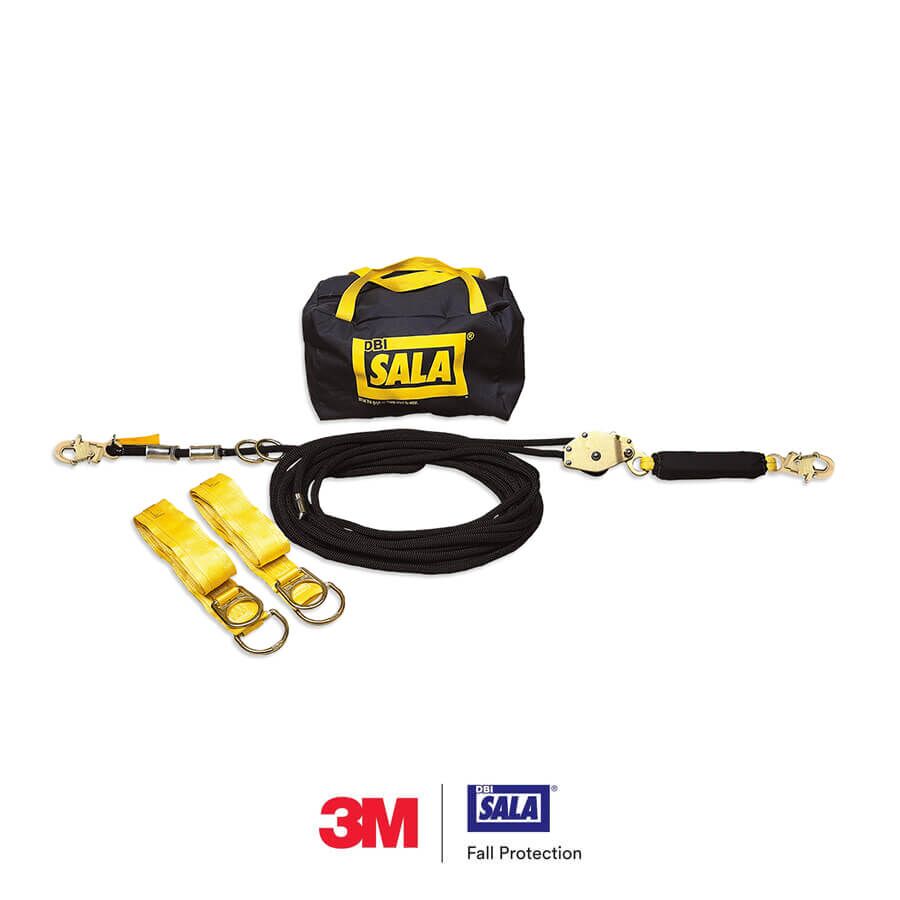

The Sayfline™ horizontal lifeline systems are not only lightweight and easy to install, they are also extremely portable. Just disassemble and take to the next job. Engineered with DBI-SALA attention to quality and detail, the Sayfline™ system is a complete kit in its own carrying bag that is easily installed with no special tools or equipment.
